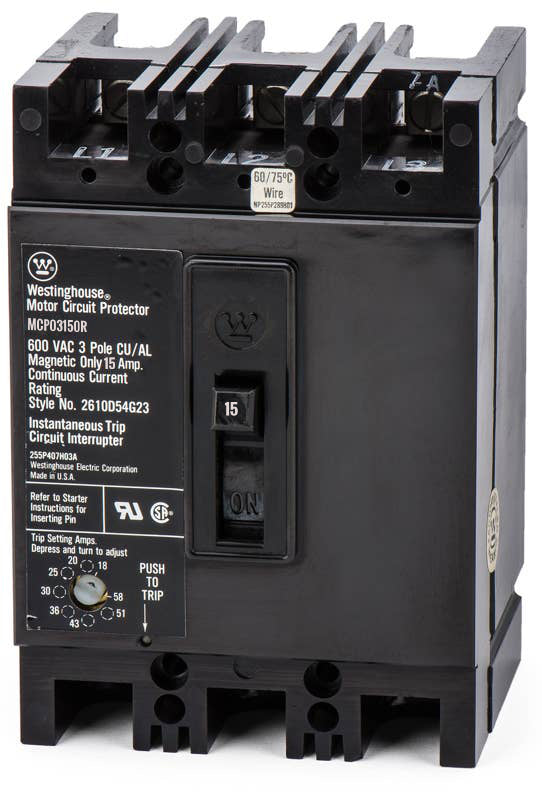

Eaton / Cutler-Hammer MCP03150R Motor Circuit Protector
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
MCP03150R
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
MCP03150R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer MCP03150R - 15A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer MCP03150R - 15A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MCP03150R |
| Series | MCP |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Motor Control Centers, Freedom Series Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer MCP03150R - 15A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MCP03150R |
| Series | MCP |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Motor Control Centers, Freedom Series Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
Similar Items
3A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerMCP13300R
30A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerMCP23480CR
50A 3 Pole Motor Circuit Protector
Description
Part of the Series C family, this 15A device is designed for industrial motor control. It provides instantaneous magnetic-only protection to safeguard branch circuits against short circuits. The unit-mount protector integrates with Eaton motor control centers and Freedom Series starters. It serves as a legacy cross-reference, replaced by the HMCP015E0 frame. Featuring an adjustable magnetic trip range of 50A to 150A, it allows for precise coordination with motor inrush currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MCP03150R |
| Series | MCP |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Motor Control Centers, Freedom Series Starters |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
