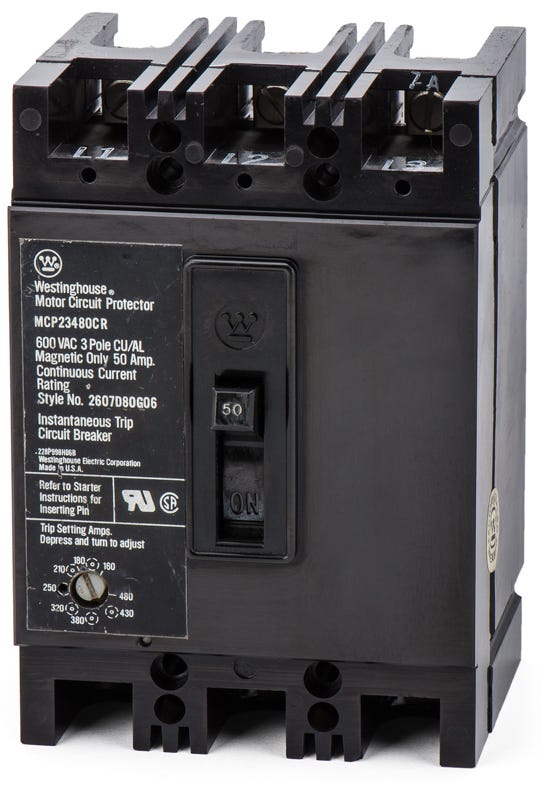

Eaton / Cutler-Hammer MCP23480CR Motor Circuit Protector
- 50A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
MCP23480CR
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
MCP23480CR
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer MCP23480CR - 50A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Similar Items
Eaton / Cutler-HammerMCP13300R
30A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerMCP03150R
15A 3 Pole Motor Circuit Protector
7A 3 Pole Motor Circuit Protector
Description
Built for industrial applications, the Eaton MCP23480CR is a 3-pole, 50A motor circuit protector utilizing an instantaneous magnetic-only trip to clear short circuits. It mounts into standard Eaton and Westinghouse motor control centers. The Series C HMCP050K2C serves as its designated replacement. The adjustable magnetic trip dial spans from 160 to 480 amps, giving installers flexibility to accommodate various motor starting currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | MCP23480CR-R |
| Series | MCP |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton / Westinghouse Motor Control Centers, Freedom Series Starters |
| Wire Gauge | 14-1/0 AWG (Cu Only) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
