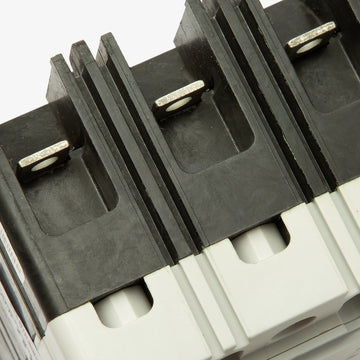

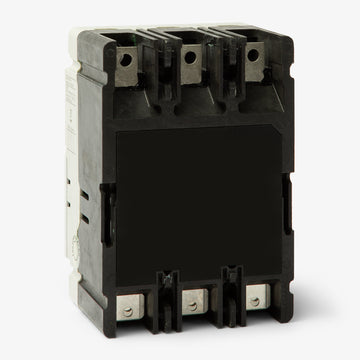

Eaton / Cutler-Hammer PDD23F0150TFFL Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDD23F0150TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDD23F0150TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDD23F0150TFFL - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDD23F0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23F0150TFFL
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23F0150TFFJ
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Eaton PDD23F0150TFFL is a 150A, 3-pole molded case circuit breaker from the Power Defense family. It features a fixed thermal-magnetic trip unit. This Frame 2 breaker installs into Eaton panelboards. It also replaces discontinued F-Frame series breakers (EHD, FDB) using a retrofit kit. Rated 35 kAIC at 240VAC, this dual-rated unit is HACR certified. The PDD prefix indicates a UL/CSA-specific design for North American standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 125VDC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 10kA @ 125VDC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3TA225) |
| Standards | CSA, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, RoHS Compliant, Dual Rated (AC/DC) |
Product FAQs
6 answersWhat does the catalog number PDD23F0150TFFL signify?
The catalog number breaks down as follows: PDD designates an Eaton Power Defense series 240VAC maximum breaker, 2 indicates a Frame 2 body size, 3 specifies 3 poles, F represents a 35kAIC interrupting rating at 240VAC, 0150 is the 150 amp rating, and TFFL indicates a fixed thermal and fixed magnetic trip unit with standard lugs.
Which panelboards are compatible with the PDD23F0150TFFL circuit breaker?
This bolt-on molded case breaker is specifically listed for installation within Eaton Power Defense panelboards and switchboards.
Can the PDD23F0150TFFL be installed in DC power systems?
Yes. While primarily rated for 240VAC applications, this thermal-magnetic breaker is also dual-rated for DC power, providing an interrupting capacity of 10kA at both 125VDC and 250VDC.

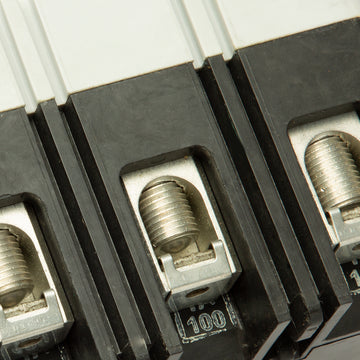

What are the wire gauge and material specifications for the PDD23F0150TFFL lugs?
The supplied standard lugs accept conductor sizes ranging from 4 AWG to 4/0 AWG and are rated for both aluminum (Al) and copper (Cu) wire.
Can the Power Defense PDD23F0150TFFL replace older Cutler-Hammer F-Frame breakers?
Yes, this modern Power Defense Frame 2 breaker can replace legacy Cutler-Hammer F-Frame circuit breakers, such as the EHD or FDB series, provided the correct Eaton retrofit kit is utilized during installation.
Are the trip functions on the PDD23F0150TFFL field adjustable?
No, this unit features fixed thermal and fixed magnetic trip parameters. The long-time and instantaneous (LI) trip functions are factory set and cannot be manually adjusted.
