Eaton / Cutler-Hammer PDD23F0200TFFL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDD23F0200TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDD23F0200TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

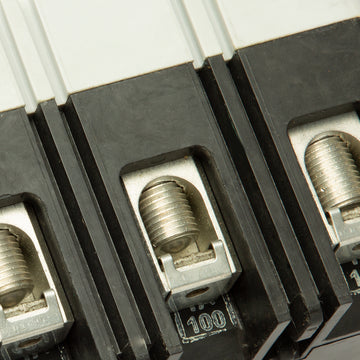

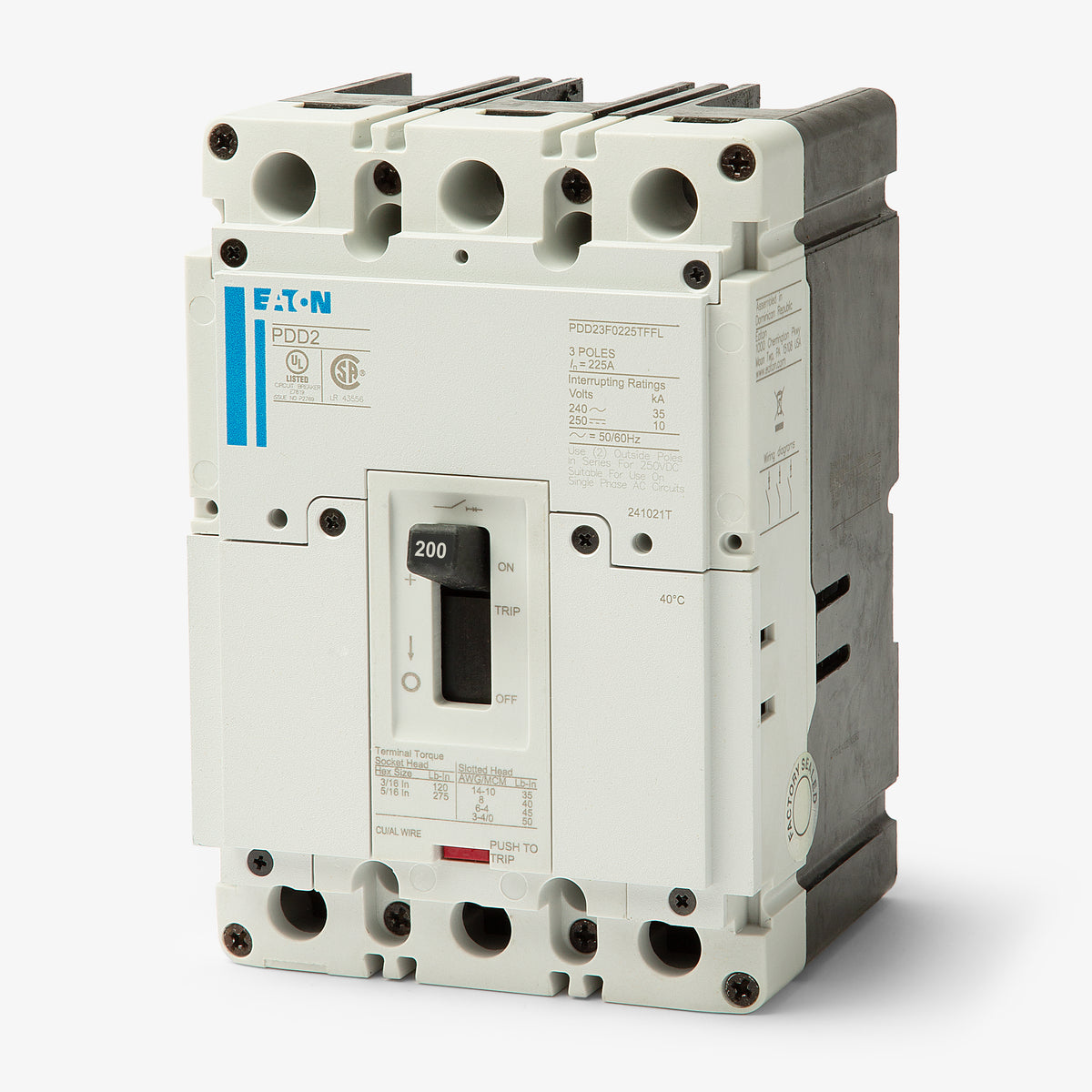

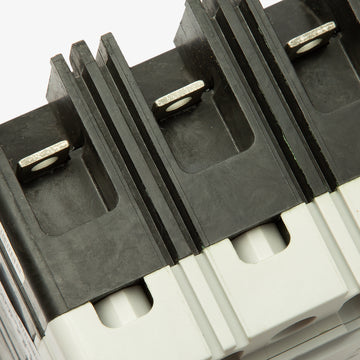

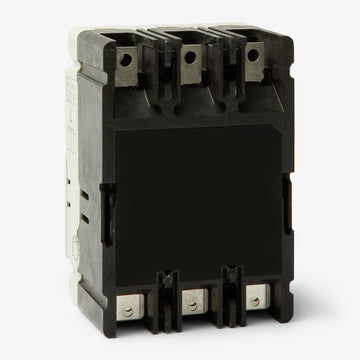

Eaton / Cutler-Hammer PDD23F0200TFFL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDD23F0200TFFL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 125VDC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 10kA @ 125VDC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rotary Handle, Terminal Shields, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Terminals Only |
| Standards | CSA, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDD23F0200TFFL - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 125VDC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 10kA @ 125VDC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rotary Handle, Terminal Shields, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Terminals Only |
| Standards | CSA, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDD23F0150TFFL
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23F0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33F0200TFAJ
200A 3 Pole Molded Case Circuit Breaker
Description
Delivering high-capacity protection, the Eaton PDD23F0200TFFL is a 200A, 3-pole molded case circuit breaker. It belongs to the Power Defense Frame 2 family, utilizing a fixed thermal-magnetic trip unit. Designed for panel mounting, this MCCB installs into Eaton panelboards. It replaces obsolete F-Frame breakers (EHD, FDB), allowing facilities to modernize using a retrofit kit. With a 35 kAIC rating at 240VAC, this HACR-rated breaker provides current-limiting performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 125VDC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 10kA @ 125VDC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rotary Handle, Terminal Shields, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Terminals Only |
| Standards | CSA, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
5 answersCan the PDD23F0200TFFL replace older Cutler-Hammer F-Frame circuit breakers?
Yes, the Power Defense Frame 2 series is designed as an upgrade for legacy F-Frame breakers, such as the EHD and FDB series. A retrofit adapter kit may be required to match the mounting dimensions of the older equipment.
Are the long-time and instantaneous trip parameters adjustable on this unit?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit. Both the long-time overload and instantaneous short-circuit settings are factory-set and cannot be adjusted in the field.
Does this breaker include terminal lugs for both the line and load sides?
No. Because this is a bolt-on breaker designed for panelboard and switchboard installation, the line side bolts directly to the electrical bus. It only includes factory-installed terminal lugs on the load side.
Is this Power Defense breaker approved for direct current (DC) circuits?
Yes. While commonly used in AC panels, this thermal-magnetic breaker is also certified for DC applications up to 250VDC, carrying a 10kA interrupting capacity at both 125VDC and 250VDC.
Is the PDD23F0200TFFL suitable for HVAC equipment protection?
Yes, this circuit breaker is HACR rated, meaning it is certified to handle the unique inrush currents of heating, air conditioning, and refrigeration equipment.
