Eaton / Cutler-Hammer PDG11G0015TFFJ Molded Case Circuit Breaker
- 15A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG11G0015TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG11G0015TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

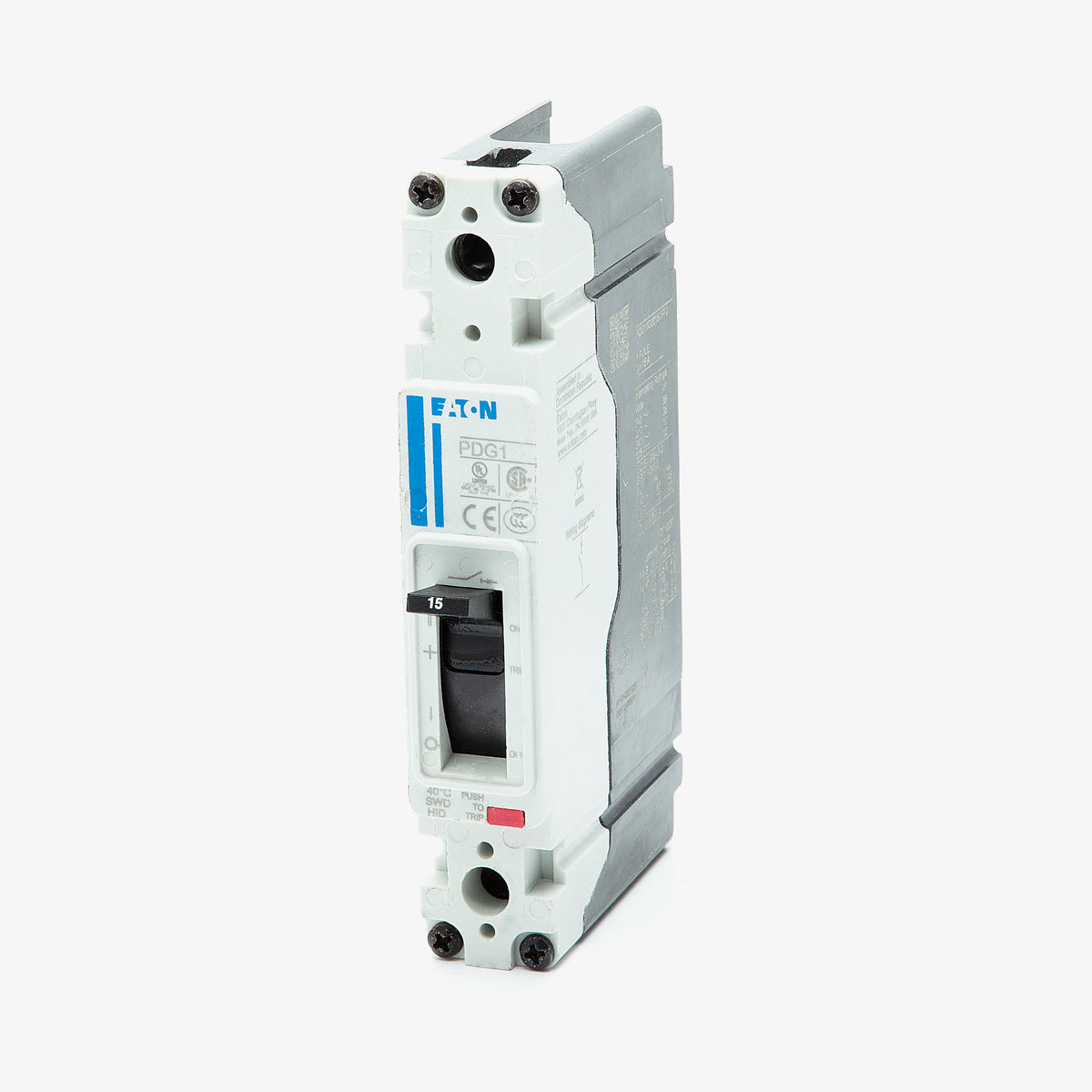

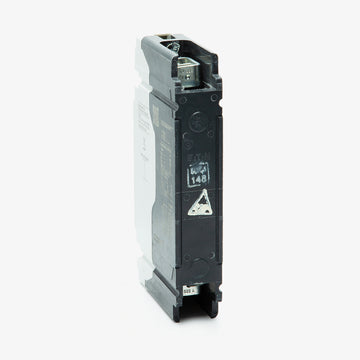

Eaton / Cutler-Hammer PDG11G0015TFFJ - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21M0015TFFL
15A 1 Pole Molded Case Circuit Breaker
Description
Designed for versatile industrial use, the Eaton PDG11G0015TFFJ is a 1-pole, 15A molded case circuit breaker. Belonging to the Power Defense Frame 1 series, it provides dependable protection. This panel-mount breaker installs into Pow-R-Line panelboards and Power Defense enclosures. It functions as a replacement for older EGS1015FFG models, simplifying system upgrades. Rated at 35kAIC at 480VAC, it features a fixed thermal and magnetic trip unit. The breaker is globally rated and HACR certified.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhich panelboards are compatible with the PDG11G0015TFFJ?
This Power Defense Frame 1 breaker is designed to be installed in Eaton Pow-R-Line Panelboards as well as dedicated Power Defense Enclosures.
What are the wire size requirements for the box lugs on the PDG11G0015TFFJ?
The feed-thru box lugs accept wire gauges from 14 AWG to 3/0 AWG. They are rated for use with both aluminum and copper conductors.
Is the PDG11G0015TFFJ suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 125VDC, providing a 22kAIC interrupting capacity for direct current circuits.
Can the trip curve be adjusted on this Power Defense breaker?
No, the PDG11G0015TFFJ features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous protection settings are factory calibrated and cannot be modified.
What does the second "G" in the PDG11G0015TFFJ catalog number indicate?
In the Eaton Power Defense nomenclature, the second "G" indicates the interrupting rating tier, which for this model provides 35kAIC at 480VAC.
