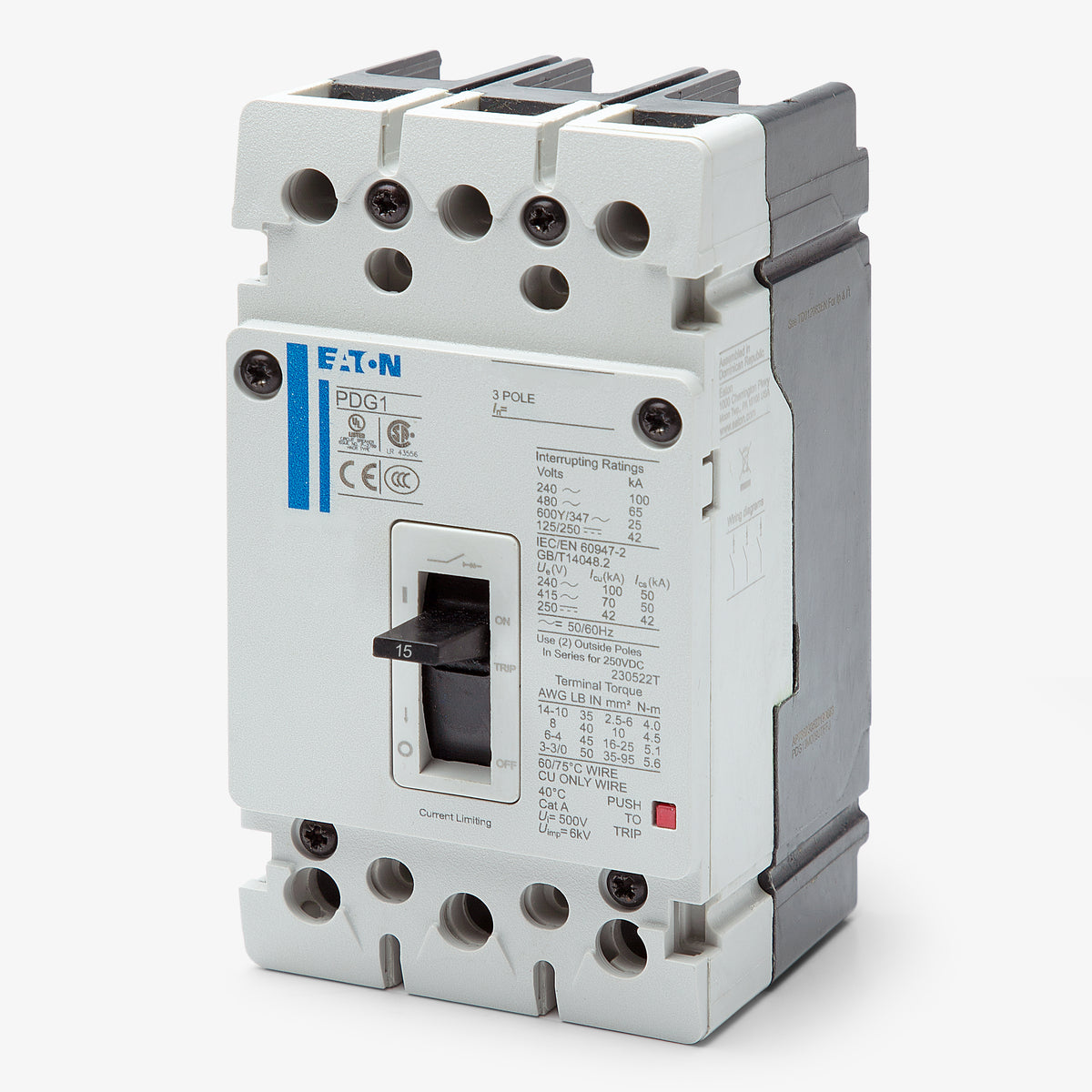

Eaton / Cutler-Hammer PDG13M0015TFFJ Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0015TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0015TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

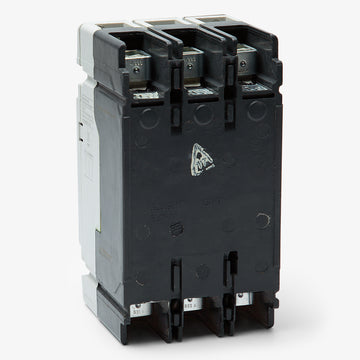

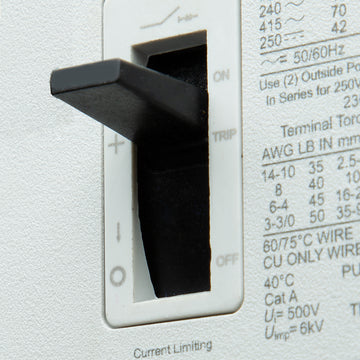

Eaton / Cutler-Hammer PDG13M0015TFFJ - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Description
The PDG13M0015TFFJ is a 3-pole, 15A molded case circuit breaker from Eaton's Power Defense series. Built for commercial and industrial applications, this Frame 1 MCCB provides fixed thermal and magnetic (LI) protection. It mounts into Eaton Power Defense panelboards and enclosures, and serves as a direct replacement for the legacy EGH3015FFG Series G breaker. Rated 65kAIC at 480VAC, this globally rated, current-limiting breaker includes line and load lugs for immediate wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersCan the PDG13M0015TFFJ replace older Eaton Series G circuit breakers?
Yes, this Power Defense Frame 1 breaker serves as a direct replacement for the legacy Eaton Series G EGH3015FFG. It maintains the same 15A rating and 65kAIC at 480VAC interrupting capacity while upgrading to Eaton's globally rated platform.
What do the letters TFFJ stand for in the PDG13M0015TFFJ catalog number?
In the Eaton Power Defense nomenclature, TFF indicates that the breaker is equipped with a fixed thermal and fixed magnetic trip unit. The J signifies that it includes standard line and load side box lug terminals.

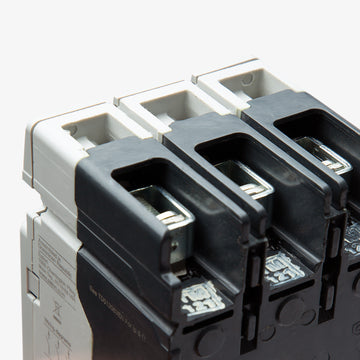

What are the wire torque specifications for the lugs on this breaker?
The standard box lugs on the PDG13M0015TFFJ require specific torque settings based on the wire gauge used. Torque 14 to 10 AWG wire to 35 lb-in, 8 AWG to 40 lb-in, 6 to 4 AWG to 45 lb-in, and 3 to 3/0 AWG to 50 lb-in.
What equipment is the PDG13M0015TFFJ designed to be installed in?
This Frame 1 molded case circuit breaker is engineered for compatibility with Eaton Power Defense panelboards, switchboards, and industrial enclosures.
Is the PDG13M0015TFFJ suitable for reverse feed applications?
Yes, as a standard thermal magnetic molded case circuit breaker in the Power Defense Frame 1 series, it is suitable for reverse feed installations. Power can be safely supplied to either the line or load terminals.
What does the M signify in the PDG13M0015TFFJ part number?
The M in the catalog number designates the breaker's interrupting rating tier. For Power Defense Frame 1, it indicates a high interrupting capacity of 65kAIC at 480VAC.
