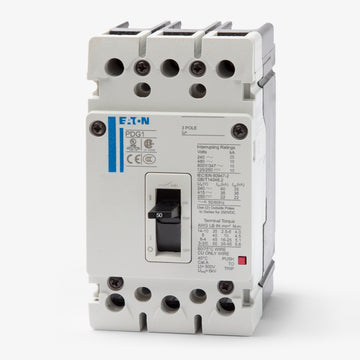

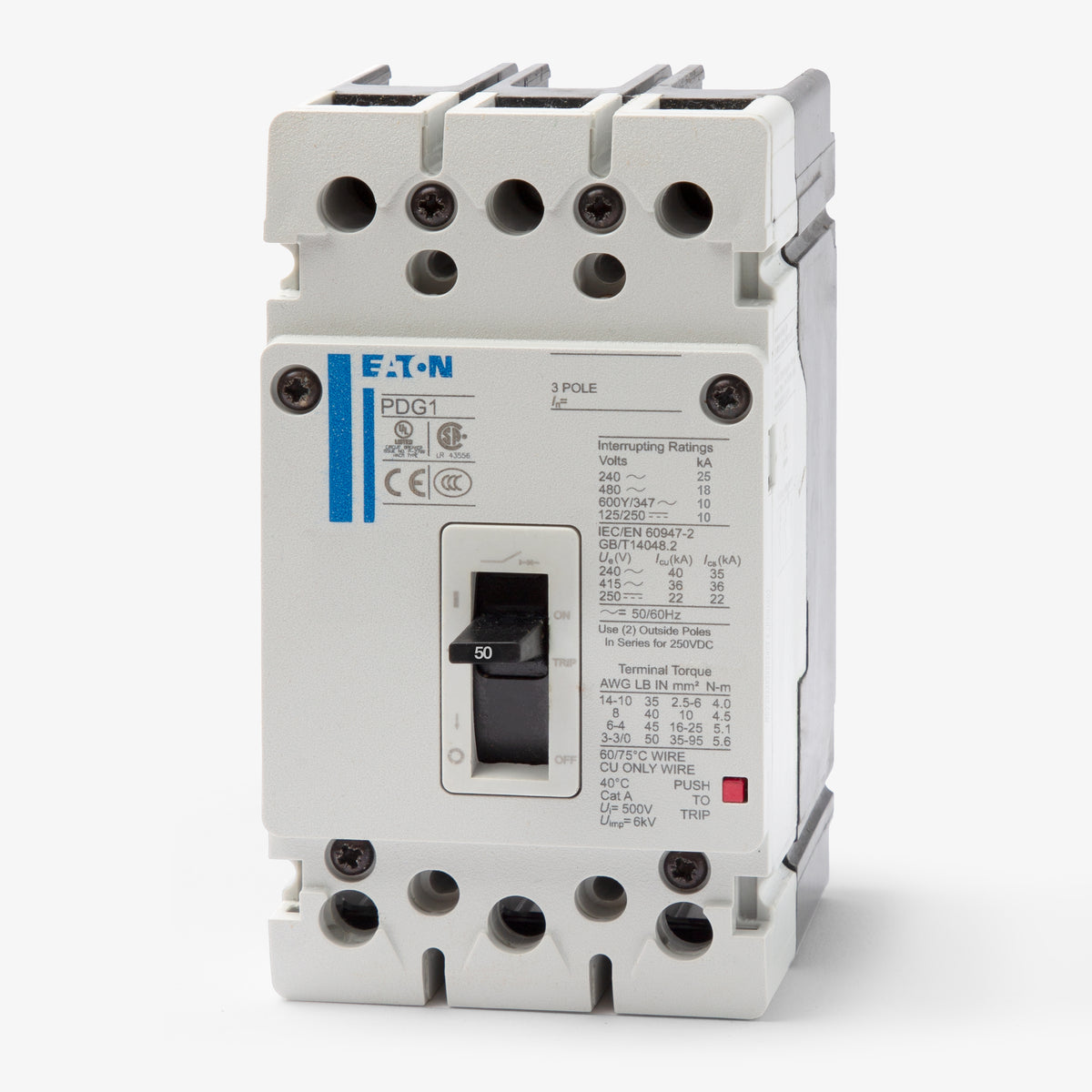

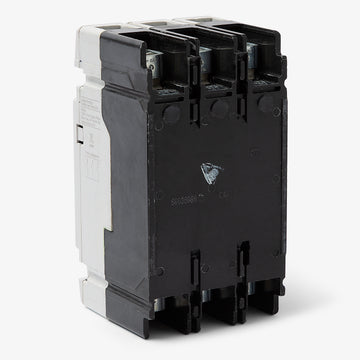

Eaton / Cutler-Hammer PDG13C0050TFFJ Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0050TFFJ - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker

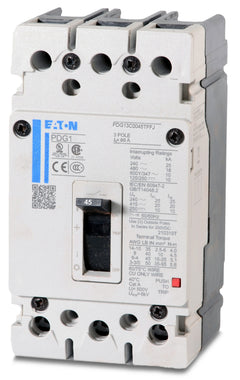

Eaton / Cutler-HammerPDG13C0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty distribution, the Eaton PDG13C0050TFFJ is a 50A, 3-pole molded case circuit breaker. Belonging to the Power Defense Frame 1 series, it provides essential LI protection for industrial facilities. This breaker mounts into Eaton Power Defense panelboards, switchboards, and enclosures. It can also be used to replace the older EGB3050FFG model in existing setups. With an 18kAIC interrupt capacity at 480VAC, this globally rated unit includes standard box lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Globally Rated, RoHS Compliant, Current Limiting |
Product FAQs
7 answersWhat equipment is the PDG13C0050TFFJ breaker designed to be installed in?
This Power Defense Frame 1 breaker is engineered for installation in Eaton Power Defense panelboards, switchboards, and compatible industrial enclosures.
How does the interrupting rating of the PDG13C0050TFFJ scale with system voltage?
The breaker provides a maximum interrupting capacity of 25kAIC at 240VAC. For higher voltage systems, it is rated at 18kAIC at 480VAC and 10kAIC at 600VAC, 347VAC, or 250VDC.
What are the wire gauge limits for the standard lugs on the PDG13C0050TFFJ?

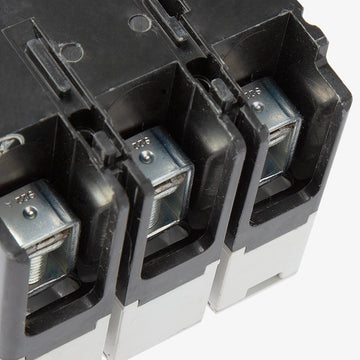

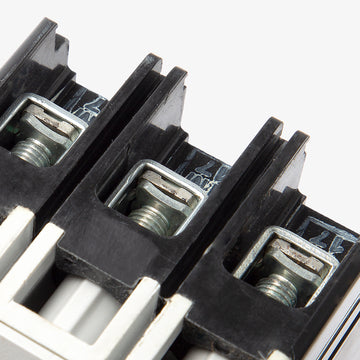

The factory-installed box lugs accommodate conductors ranging from 14 AWG to 3/0 AWG, allowing flexibility for various 50A circuit runs.
Can the thermal or magnetic trip settings be adjusted on the PDG13C0050TFFJ?
No, this breaker is equipped with a fixed thermal and fixed magnetic (LI) trip unit. Neither the long-time nor the instantaneous trip functions are field adjustable.
What does the PDG1 designation mean in the PDG13C0050TFFJ catalog number?
The PDG1 prefix indicates that this breaker belongs to the globally rated Eaton Power Defense Frame 1 series, which shares standardized dimensions and accessories across the Frame 1 lineup.
Does the PDG13C0050TFFJ include line and load terminals?
Yes, this breaker comes standard with factory-installed box lugs on both the line and load sides for immediate panel-mount installation.
Is the PDG13C0050TFFJ suitable for use in DC circuits?
Yes, in addition to its AC ratings, this thermal magnetic breaker is rated for use in direct current applications up to 250VDC with a 10kAIC interrupting capacity.
