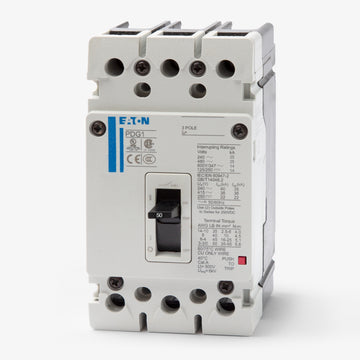

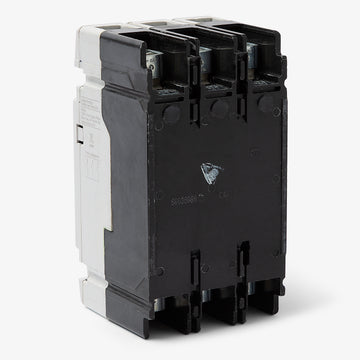

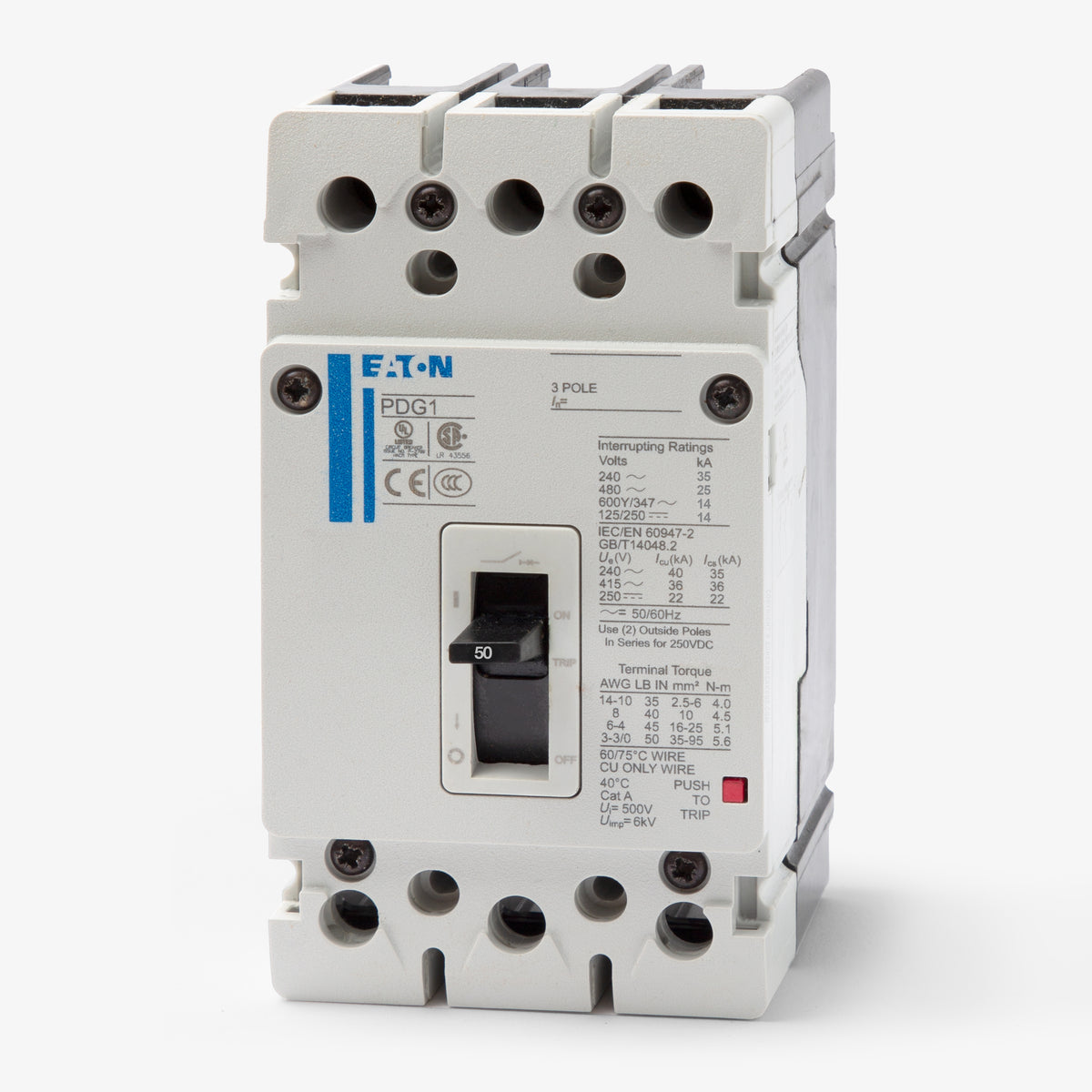

Eaton / Cutler-Hammer PDG13F0050TFFJ Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0050TFFJ - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Description
Built for Eaton Power Defense panelboards and enclosures, the PDG13F0050TFFJ delivers 50 amps of reliable circuit protection. This 3-pole Frame 1 molded case circuit breaker utilizes fixed thermal-magnetic (LI) trip technology to safeguard commercial and industrial electrical systems. As a globally rated and current-limiting device, it provides a 25 kAIC interrupting capacity at 480VAC. It is also an exact cross-reference replacement for the legacy EGE3050FFG, making it an ideal choice.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13F0050TFFJ |
| Series | PDG1 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan I mount the PDG13F0050TFFJ on a DIN rail?
Yes. While it is designed for standard panel mounting, this Frame 1 breaker can be mounted on a standard DIN rail using a compatible Eaton DIN rail adapter, such as catalog number PDG1XDIN34P for three-pole models.
Are the trip settings on the PDG13F0050TFFJ adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time overload nor the instantaneous short-circuit trip points can be adjusted in the field.

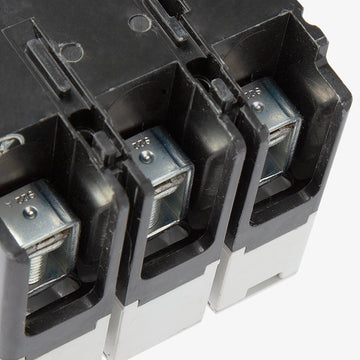

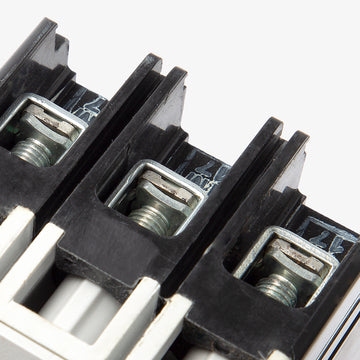

What wire sizes are compatible with the standard box lugs on this breaker?
The standard line and load terminals accept wire gauges ranging from 14 AWG up to 3/0 AWG. Ensure you use properly sized conductors based on the 50-amp rating and local electrical codes.
Is this Power Defense breaker globally rated for international use?
Yes, the PDG13F0050TFFJ is a globally rated circuit breaker. It carries multiple certifications, including UL 489, CSA, CCC, and IEC 60947-2, making it suitable for use in both domestic and international electrical distribution systems.
What types of panels is this breaker designed to fit?
This molded case circuit breaker is specifically designed for integration into Eaton Power Defense panelboards, switchboards, and industrial control enclosures.
Does this breaker support direct current applications?
Yes, in addition to its alternating current ratings up to 600VAC, this breaker is rated for 250VDC applications with an interrupting capacity of 22kAIC.
What is the recommended operating temperature range for this breaker?
The PDG13F0050TFFJ is rated for operation in ambient temperatures ranging from negative 13 to 158 degrees Fahrenheit (negative 25 to 70 degrees Celsius).
