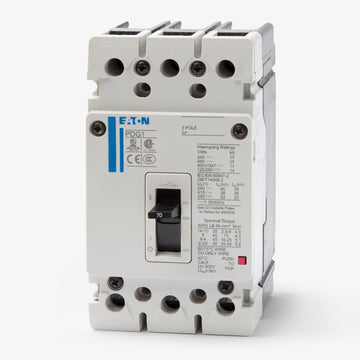

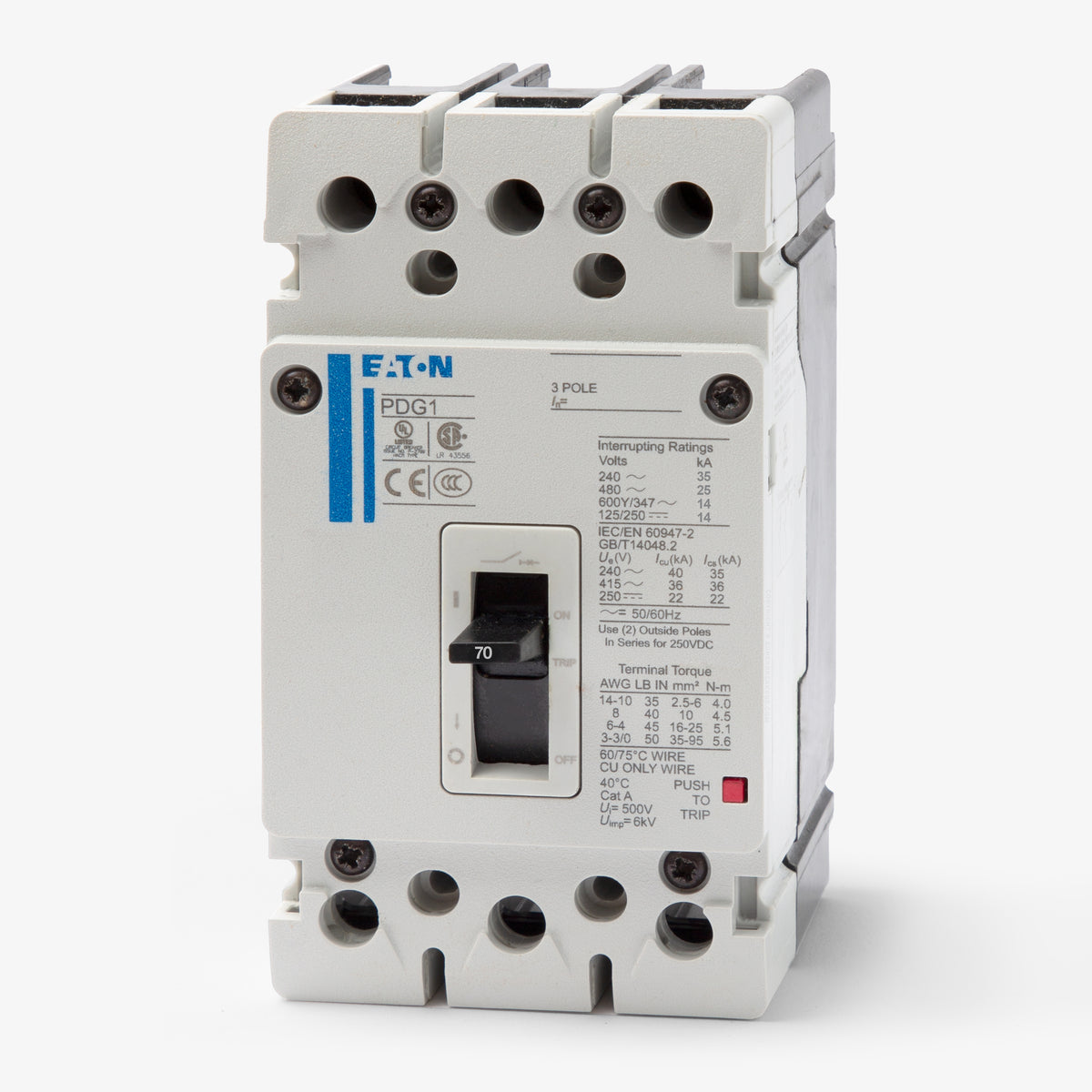

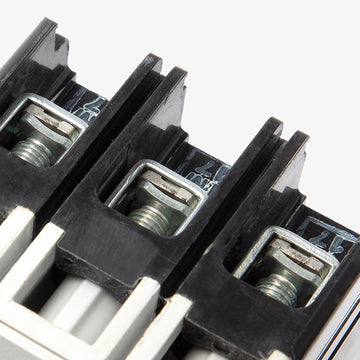

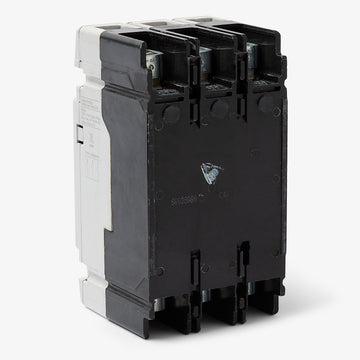

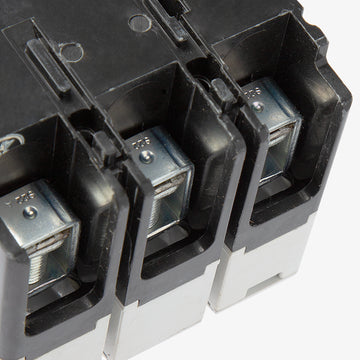

Eaton / Cutler-Hammer PDG13F0070TFFJ Molded Case Circuit Breaker
- 70A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0070TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0070TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0070TFFJ - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Description
Belonging to Eaton's Power Defense family, this 70A, 3-pole MCCB delivers dependable protection for commercial environments. The Frame 1 breaker meets global standards. It installs into compatible Power Defense panelboards and switchboards. The unit includes standard line and load terminals for 14 AWG to 3/0 AWG wire. Featuring a fixed thermal and magnetic (LI) trip mechanism, it offers a 25 kAIC rating at 480VAC. This current-limiting, HACR-rated breaker ensures excellent reliability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
6 answersWhat does the "TFFJ" suffix mean in the PDG13F0070TFFJ catalog number?
The "TFFJ" suffix indicates the breaker uses a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings (TFF), and it comes standard with line and load box lug terminals (J).
What does the "F" stand for in the PDG13F prefix?
In the Eaton Power Defense catalog logic, the "F" indicates the interrupting rating family. For this Frame 1 breaker, it signifies a 25kAIC rating at 480VAC.
Is the PDG13F0070TFFJ globally rated?
Yes, the "G" in the PDG1 prefix stands for Global. Power Defense breakers are globally rated platforms designed to meet multiple industry standards, including UL, CSA, IEC, and CCC.
Can the Power Defense Frame 1 replace older Eaton Series C or Series G breakers?
Yes, the Power Defense Frame 1 (PDG1) is the modern replacement for legacy Eaton Series G EG-frame and Series C F-frame circuit breakers. Retrofit kits or adapter plates may be required depending on your specific enclosure and mounting configuration.
Can I adjust the trip settings on the PDG13F0070TFFJ?
No, this specific model features a fixed thermal and fixed magnetic (LI) trip unit. The long-time and instantaneous trip thresholds are factory-set and cannot be adjusted in the field.
Does this breaker feature the ArcFlash Reduction Maintenance System (ARMS)?
No. The PDG13F0070TFFJ uses a basic fixed thermal-magnetic trip unit. ArcFlash Reduction Maintenance System (ARMS) capabilities are typically found on higher-frame Power Defense breakers equipped with advanced Power Xpert Release (PXR) electronic trip units.
