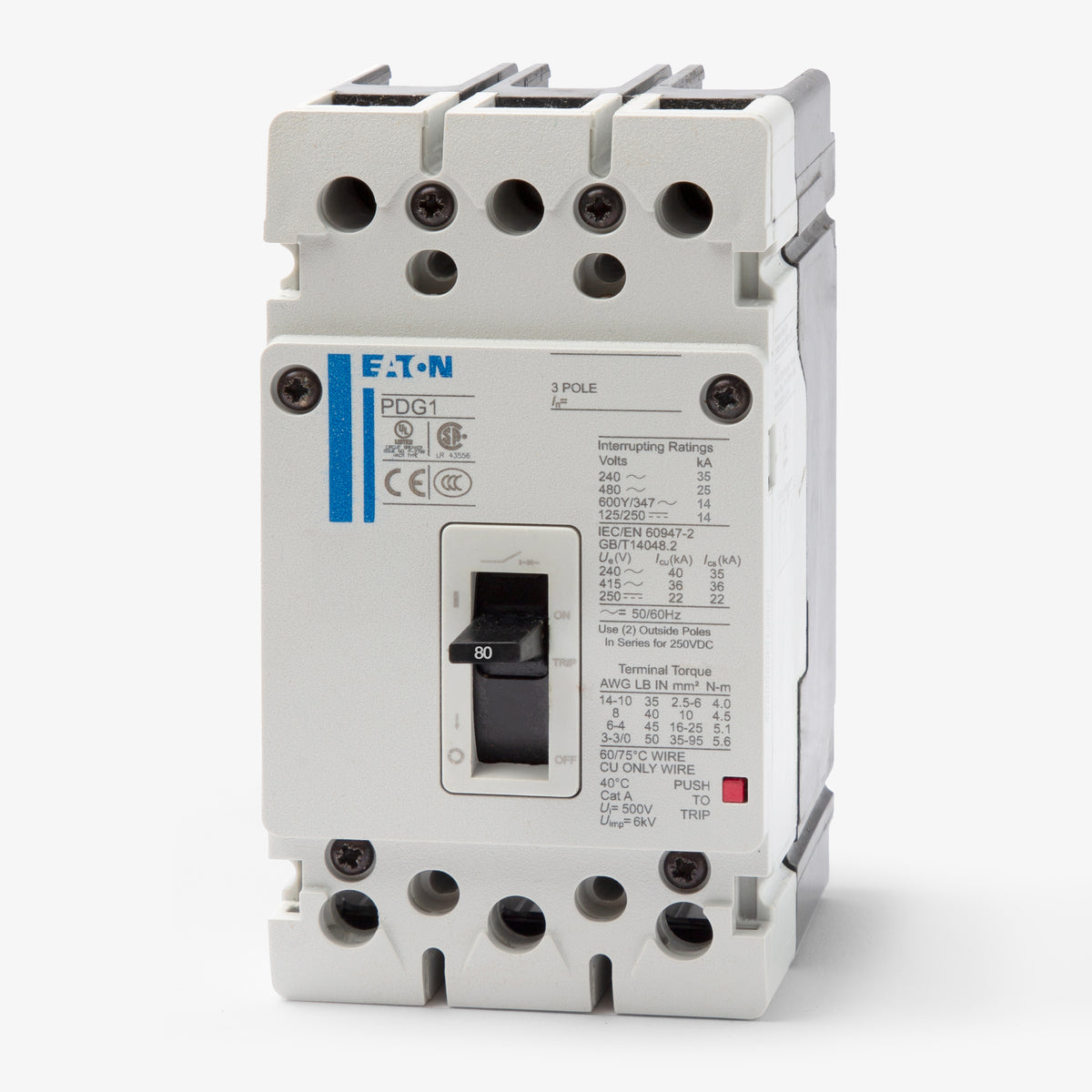

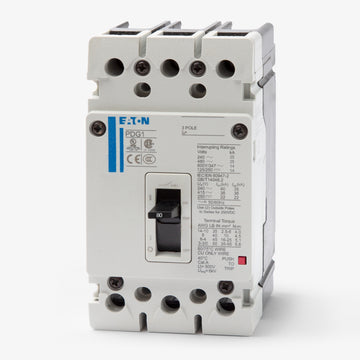

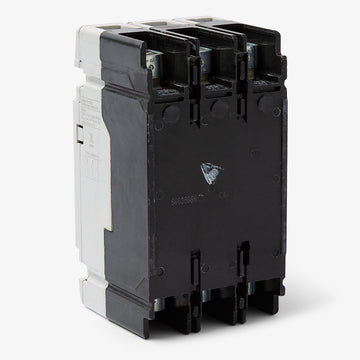

Eaton / Cutler-Hammer PDG13F0080TFFJ Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0080TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0080TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0080TFFJ - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the PDG13F0080TFFJ is a 3-pole, 80A molded case circuit breaker. As part of the Power Defense Frame 1 family, it delivers reliable performance for demanding environments. This panel-mount MCCB installs into Eaton Pow-R-Line panelboards and enclosures. It also serves as a drop-in replacement for legacy EGE3080FFG breakers. Featuring fixed thermal and magnetic trip functions (LI), it is rated 25kAIC at 480VAC and includes box lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13F0080TFFJ |
| Series | PDG1 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|

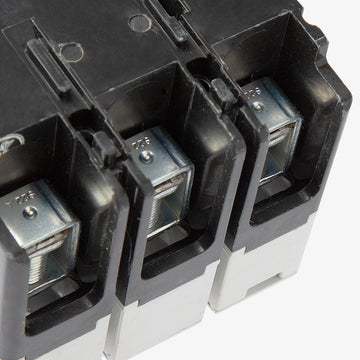

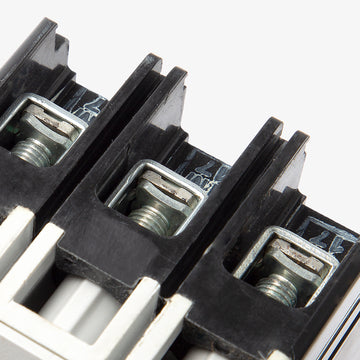

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhat panelboards and enclosures are compatible with the PDG13F0080TFFJ?
This Power Defense Frame 1 breaker is designed for use with Eaton Pow-R-Line panelboards and Power Defense enclosures.
What wire sizes are accepted by the terminals on this breaker?
The standard box lugs accept 14 AWG to 3/0 AWG aluminum or copper wire.
Can the PDG13F0080TFFJ be mounted on a DIN rail?
Yes. While it is primarily a panel mount breaker, it can be mounted to a standard DIN rail using an Eaton DIN rail adapter, such as catalog number PDG1XDIN34P.
What does the F in the PDG13F0080TFFJ catalog number signify?
The F indicates the interrupting rating of the breaker, which is 25kAIC at 480VAC.
What type of trip unit is installed in this breaker?
It features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, providing Long-Time and Instantaneous (LI) protection.
Can this Power Defense Frame 1 breaker replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 1 series is the modern replacement for legacy Eaton Series C F-Frame and Series G EG-Frame breakers. Updated mounting hardware is typically required for retrofit installations.
