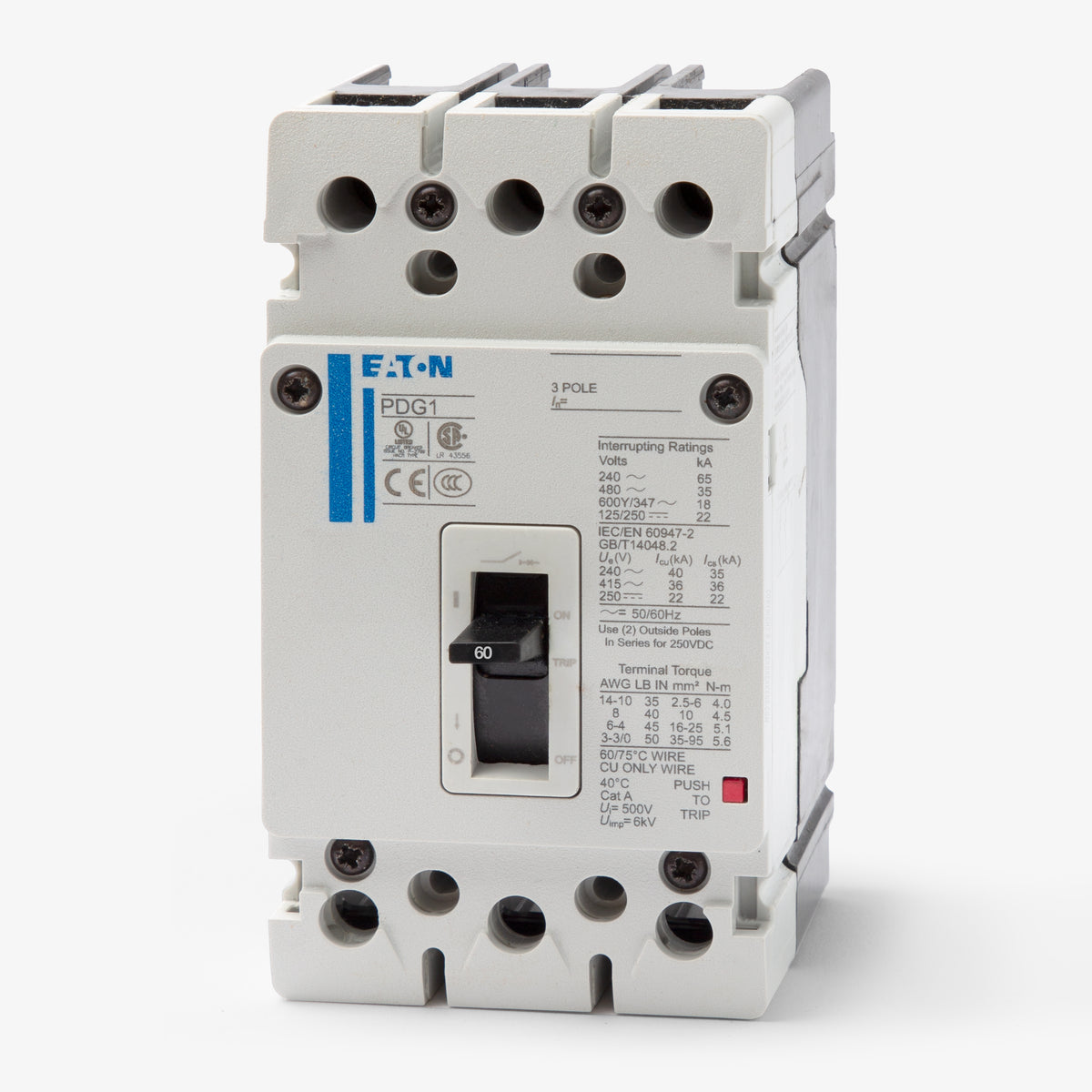

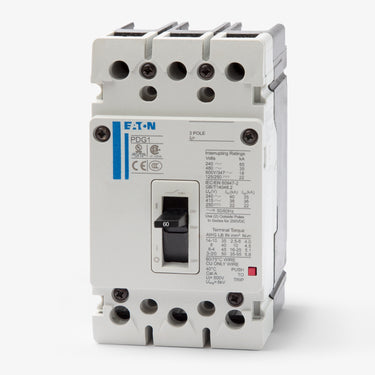

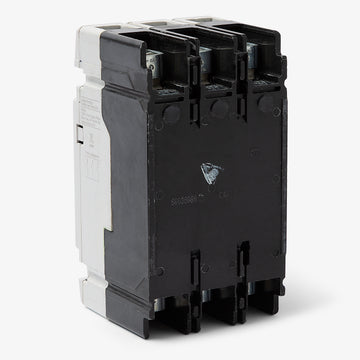

Eaton / Cutler-Hammer PDG13G0060TFFJ Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13G0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13G0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13G0060TFFJ - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Description
The PDG13G0060TFFJ is a 60A molded case circuit breaker from Eaton's Power Defense family. Built for industrial applications, it provides dependable protection in a compact Frame 1 footprint. This unit mounts into Eaton Power Defense panelboards and switchboards. It also serves as an exact replacement for the legacy Series G EGS3060FFG. Featuring a fixed thermal-magnetic (LI) trip unit, this breaker is rated 35kAIC at 480VAC and includes standard box lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

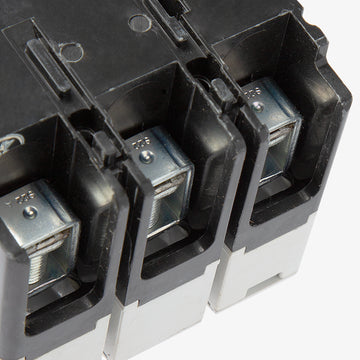

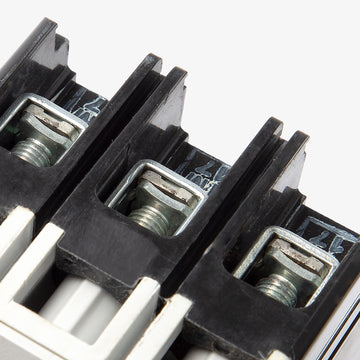

| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat does the first "G" in the PDG13G0060TFFJ catalog number represent?
The first "G" indicates that this is a globally rated breaker, meaning it is certified to UL, CSA, IEC, and CCC standards.
What does the second "G" in the catalog number PDG13G0060TFFJ indicate?
The second "G" signifies the interrupting rating tier for this Power Defense Frame 1 breaker, which provides 35kAIC at 480VAC.
What do the letters "TFFJ" mean in the part number?
"TFF" indicates a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings. The "J" specifies that the breaker comes with standard line and load box lugs.
Are the trip units on this Power Defense Frame 1 breaker interchangeable?
No, the trip units on Eaton PDG1 (Frame 1) circuit breakers are factory sealed and not field replaceable.
Which legacy Eaton or Cutler-Hammer breakers does the Power Defense Frame 1 replace?
The Power Defense Frame 1 series is the modern replacement for legacy Series C F-Frame breakers. A retrofit kit may be required when installing this into an existing Series C footprint.
