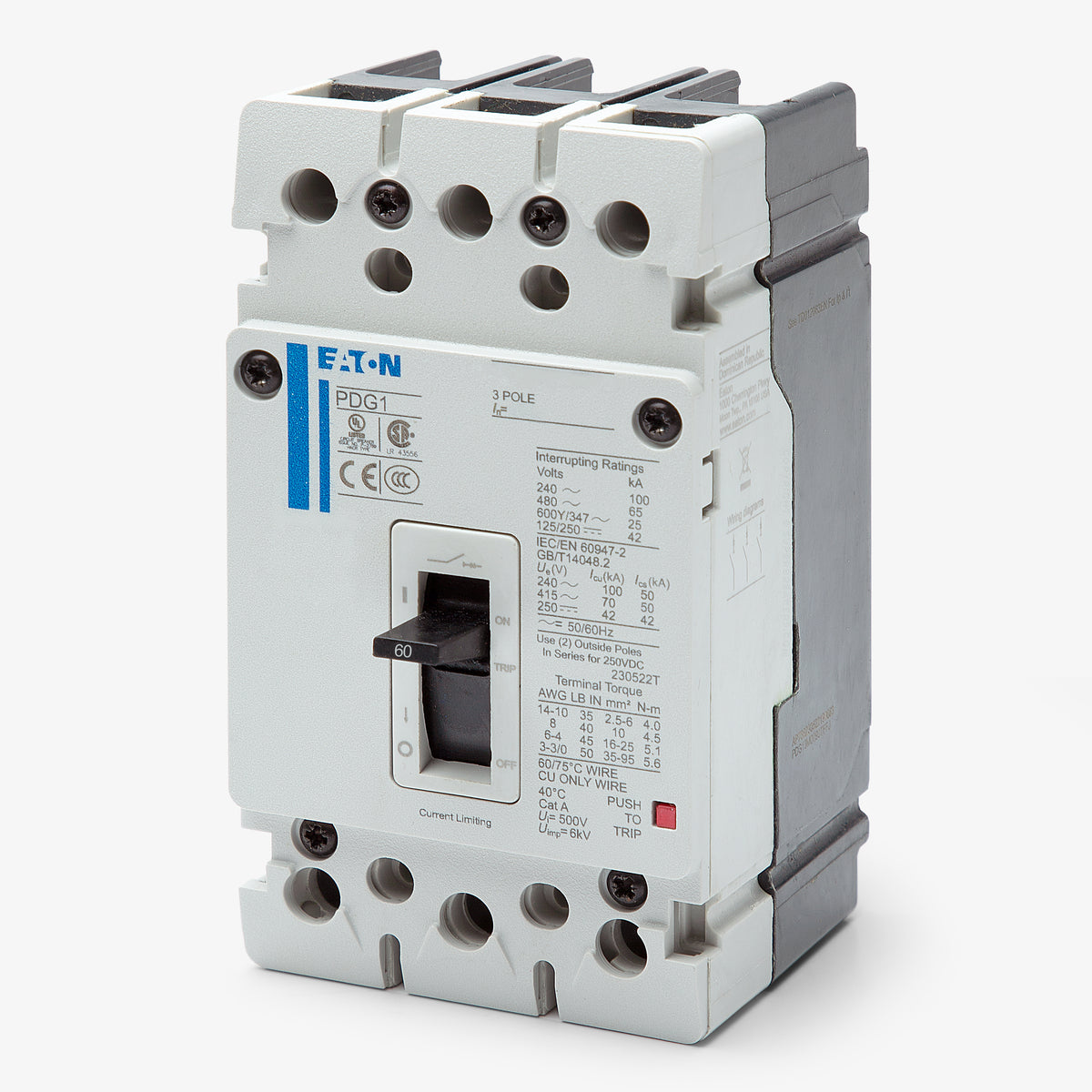

Eaton / Cutler-Hammer PDG13M0060TFFJ Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

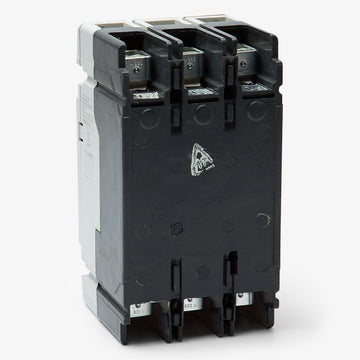

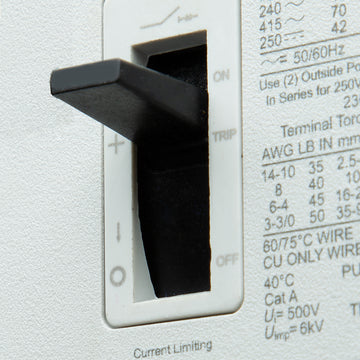

Eaton / Cutler-Hammer PDG13M0060TFFJ - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, this 60A Power Defense breaker utilizes a fixed thermal-magnetic trip unit to safeguard critical three-phase circuits. The panel-mount design integrates into Eaton switchboards and enclosures, effectively replacing the older EGH3060FFG model. Featuring a globally rated 65kAIC capacity at 480VAC, this frame 1 MCCB comes equipped with line and load box lugs while accommodating optional rotary handles or DIN rail adapters for versatile installation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs

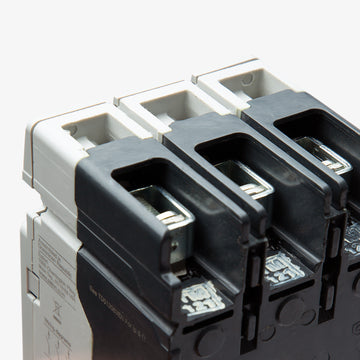

7 answersWhat wire sizes are compatible with the standard box lugs on the PDG13M0060TFFJ?
The factory-installed box lugs on this Frame 1 breaker accept wire gauges from 14 AWG up to 3/0 AWG.
Is the trip unit on this 60A breaker adjustable?
No, the PDG13M0060TFFJ features a fixed thermal and fixed magnetic (LI) trip unit. Neither the long-time nor the instantaneous pickup levels can be adjusted in the field.
What equipment is this Frame 1 breaker designed to be installed in?
It is designed for use in Eaton Power Defense panelboards, switchboards, motor control centers, and standalone enclosures.
Can the PDG13M0060TFFJ be used in direct current (DC) systems?
Yes, this breaker is rated for DC applications and carries an interrupting rating of 42kA at 250VDC.
Can the PDG13M0060TFFJ be mounted on a DIN rail?
Yes, this Power Defense Frame 1 breaker supports both standard panel mounting and DIN rail mounting configurations, making it suitable for motor control centers and control panels.
What does the "M" in the PDG13M0060TFFJ catalog number signify?
In the Eaton Power Defense nomenclature, the "M" designates the interrupting rating tier. For this Frame 1 breaker, it indicates a rating of 65kA at 480VAC.
What does the "LI" trip function code mean for this breaker?
The "LI" code indicates that the thermal-magnetic trip unit provides Long-Time (L) protection against overloads and Instantaneous (I) protection against short circuits.
