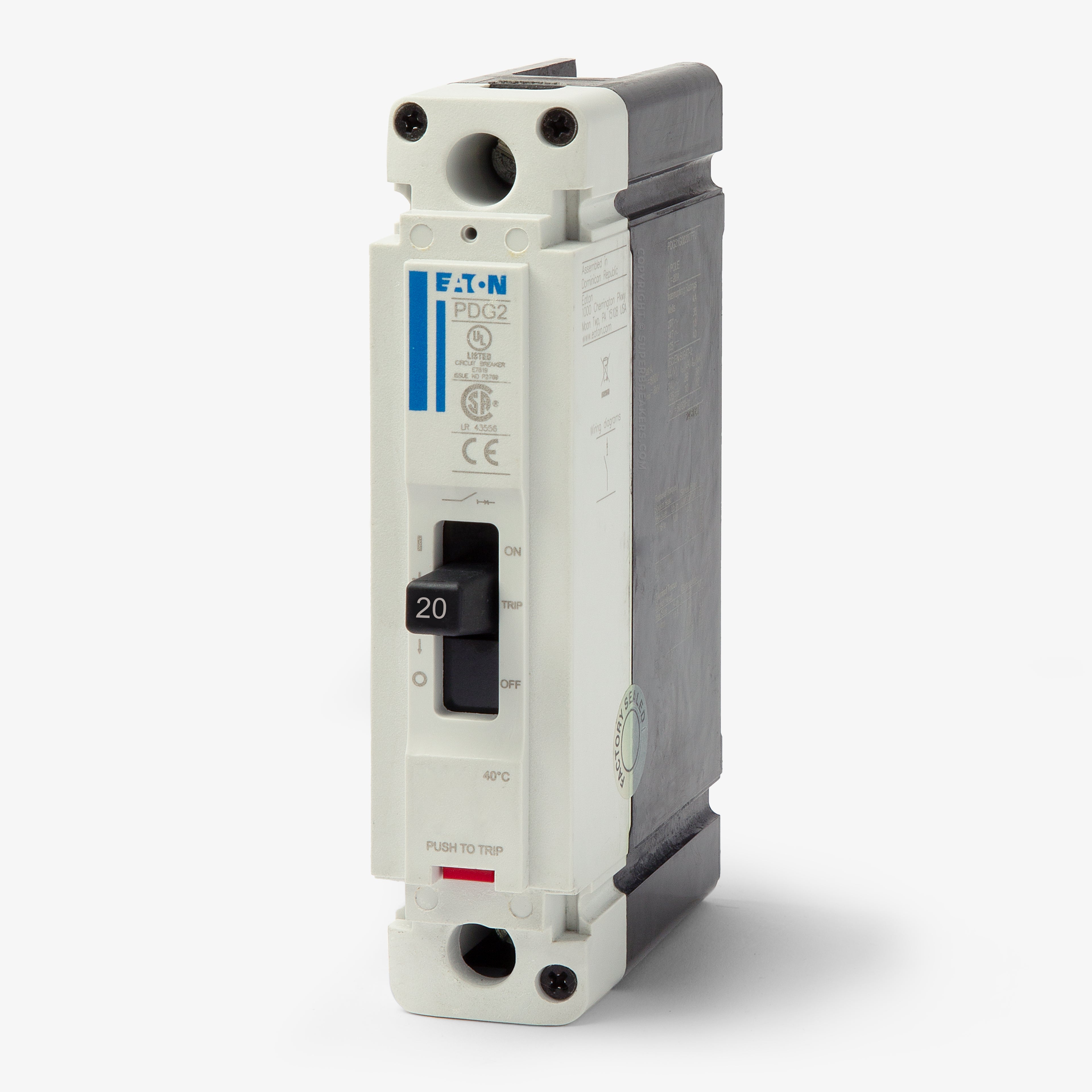

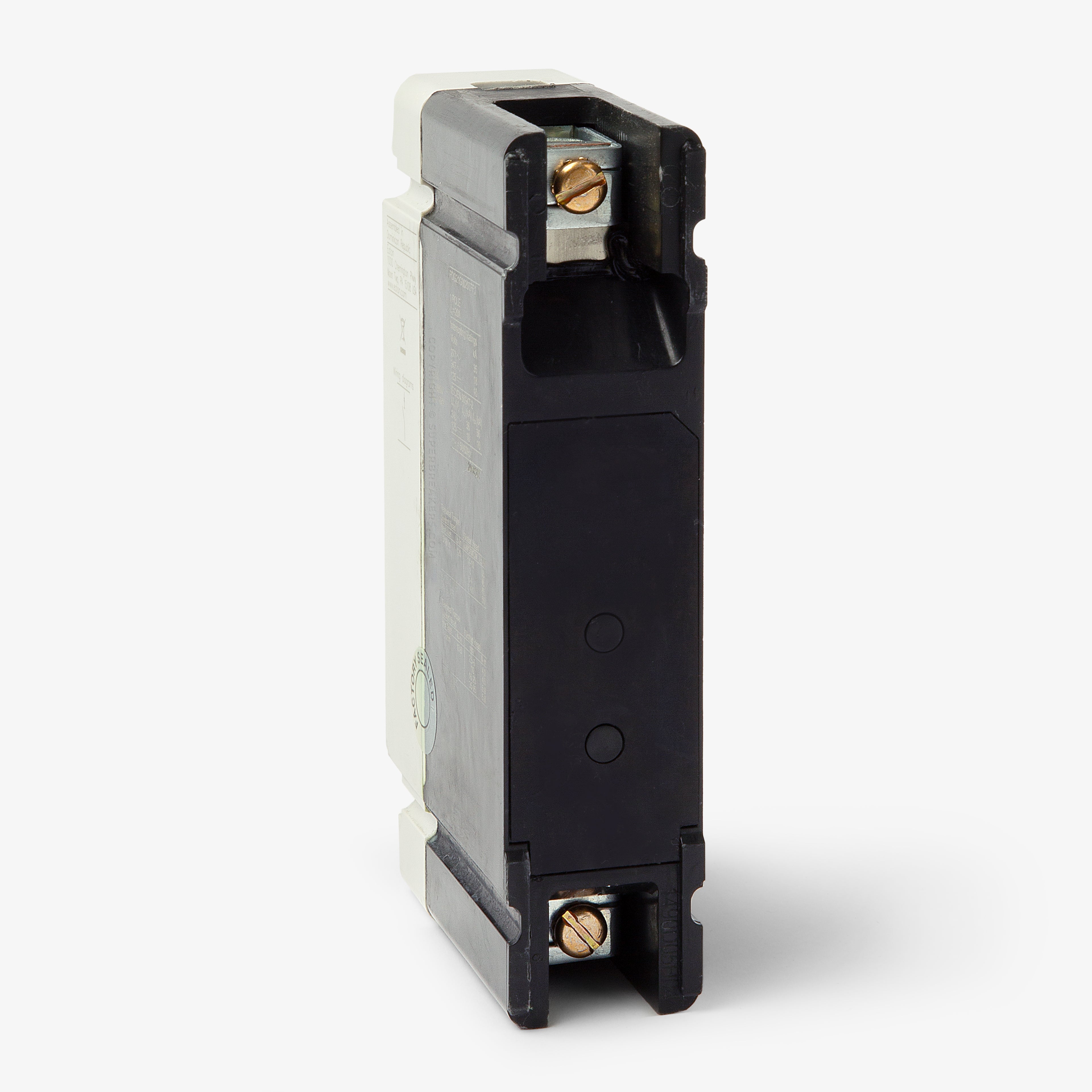

Eaton / Cutler-Hammer PDG21G0020TFFL Molded Case Circuit Breaker
- 20A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0020TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0020TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0020TFFL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG21G0020TFFL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG21G0020TFFL |
| Series | PDG2 |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG21G0020TFFL - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG21M0020TFFL
20A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0025TFFL
25A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0015TFFJ
15A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, this 1-pole, 20A molded case circuit breaker belongs to the Power Defense Frame 2 series. It provides robust overcurrent protection for modern electrical systems. This panel-mount MCCB installs into Eaton Power Defense panelboards, switchboards, and enclosures. It also functions as a seamless replacement for Series C F-Frame FD1020 breakers. Equipped with fixed thermal and magnetic trip functions (LI), it delivers a 35kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG21G0020TFFL |
| Series | PDG2 |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat frame size is the Eaton PDG21G0020TFFL?
This breaker is built on the Eaton Power Defense Frame 2 platform. It is designed for bolt-on installation in compatible Eaton Power Defense panelboards, switchboards, and industrial enclosures.
What does the G represent in the PDG21G0020TFFL catalog number?
In the Eaton Power Defense nomenclature, the letter G designates the interrupting rating tier. For this Frame 2 breaker, it indicates a maximum short-circuit interrupting capacity of 35kA at 480VAC.
Are the trip settings adjustable on this 20A breaker?
No, this specific model features a standard thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip thresholds. Applications requiring adjustability will need a Power Defense breaker equipped with an electronic trip unit.
Is this molded case breaker rated for direct current systems?
Yes, alongside its standard AC ratings, this breaker is certified for DC applications up to 125VDC, carrying a short-circuit interrupting rating of 10kA at that voltage.

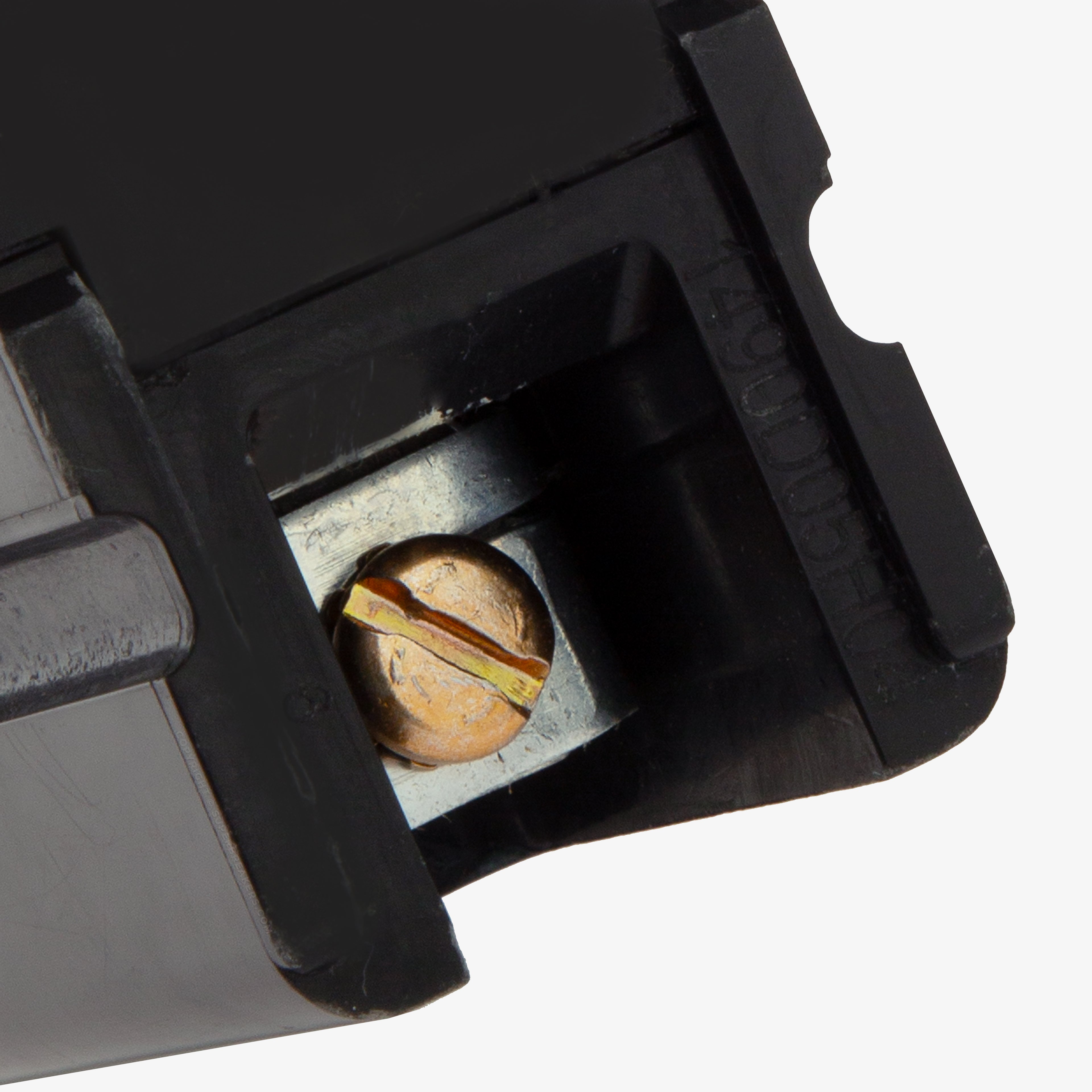

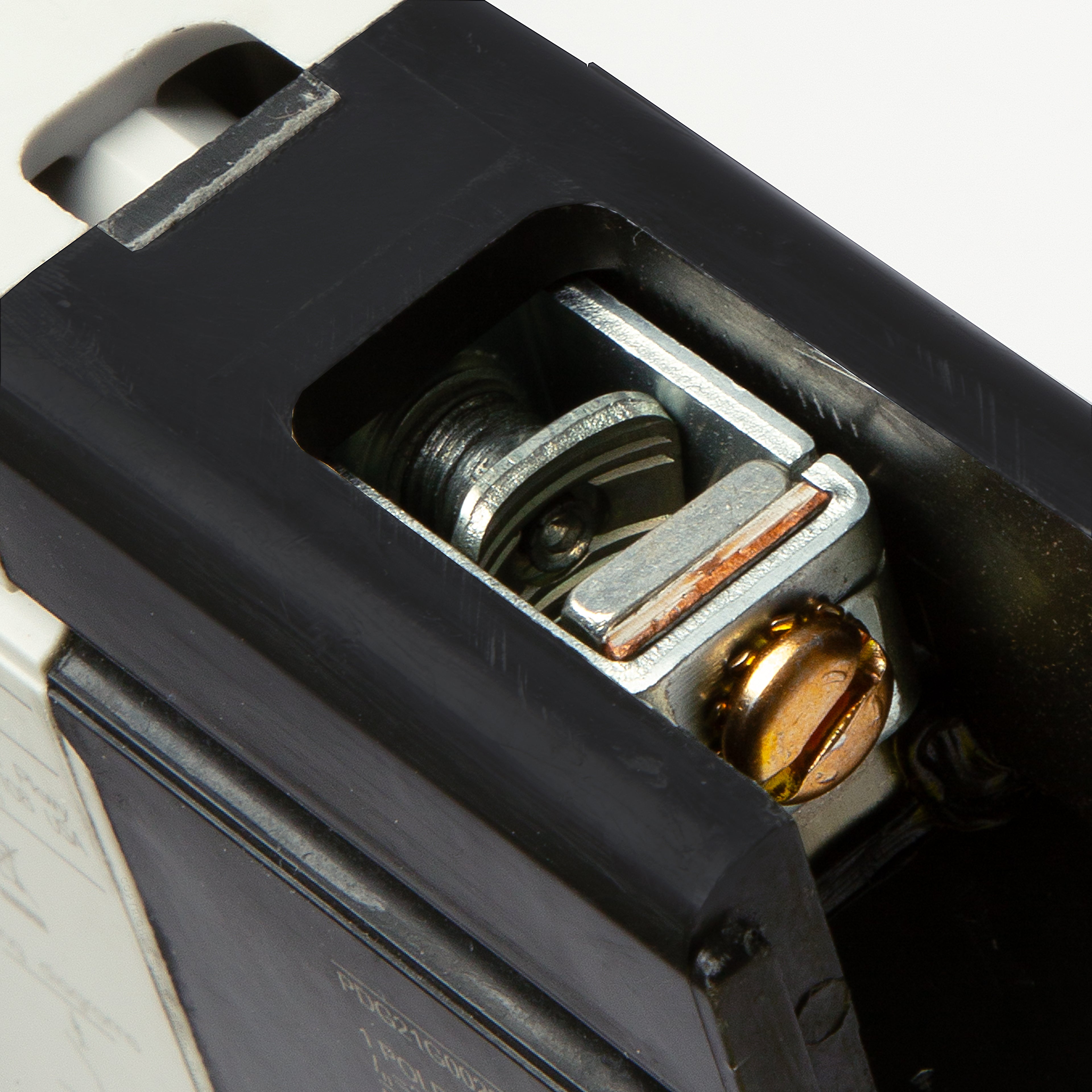

What wire sizes are accepted by the factory lugs?
The standard factory installed lugs on this breaker will accommodate conductor sizes ranging from 14 AWG up to 1/0 AWG. The terminals are dual-rated for use with both aluminum and copper wire.
