Eaton / Cutler-Hammer PDG21G0025TFFL Molded Case Circuit Breaker
- 25A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0025TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0025TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

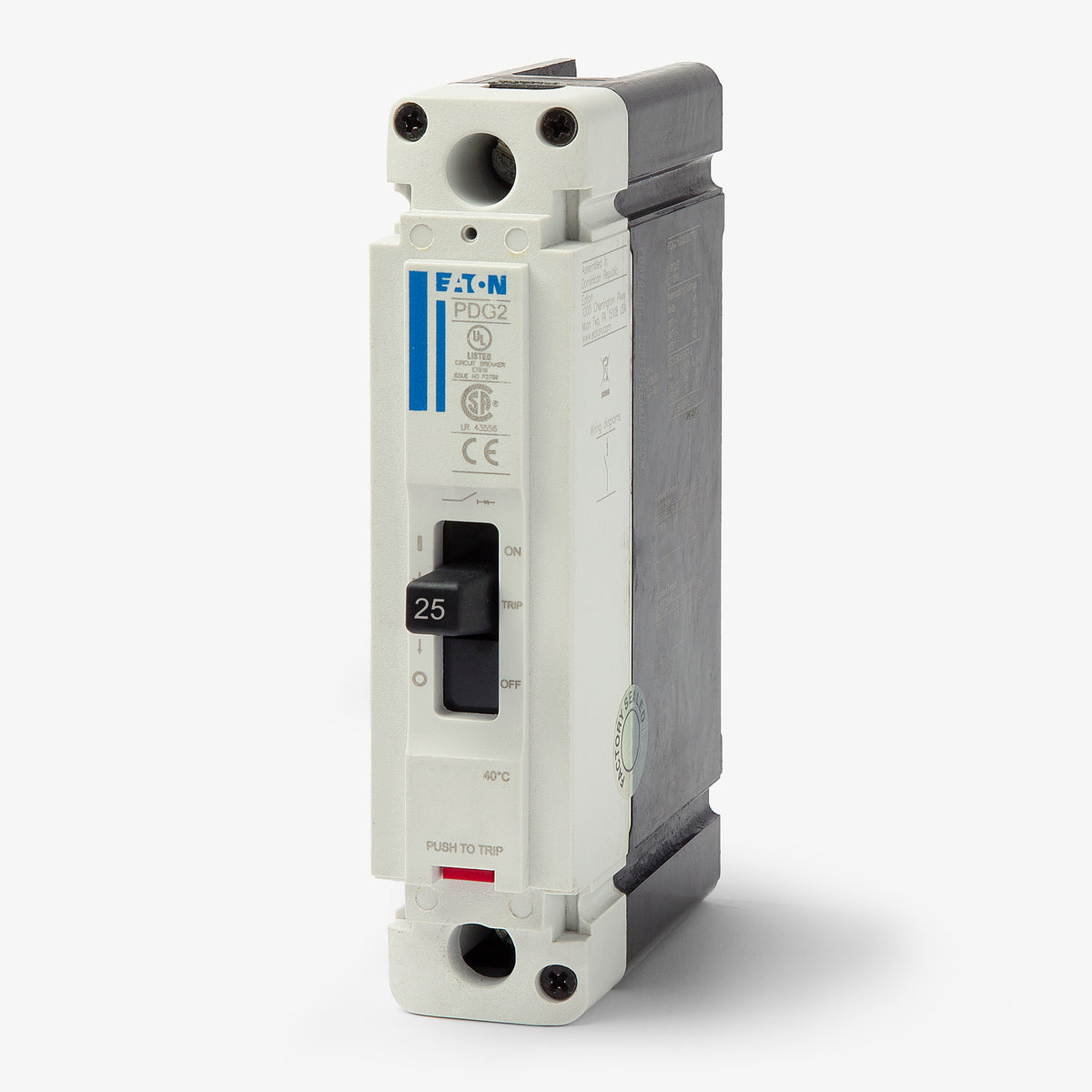

Eaton / Cutler-Hammer PDG21G0025TFFL - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21G0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21M0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0020TFFJ
20A 1 Pole Molded Case Circuit Breaker
Description
A dependable solution for modern facilities, the Eaton PDG21G0025TFFL is a 1-pole, 25A molded case circuit breaker from the globally rated Power Defense family. It integrates seamlessly into Eaton switchboards and panelboards, replacing legacy EGS1025FFG and FD1025 breakers while upgrading the interrupt capacity. Featuring a 65kAIC rating at 240VAC and a fixed thermal-magnetic trip unit, it ensures precise long-time and instantaneous protection. Standard load terminals are included.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Mechanism |
|---|---|
| Accessories | Standard Load Terminals (PDG2X1T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
6 answersWhich Eaton panels and enclosures accept the PDG21G0025TFFL circuit breaker?
This Frame 2 Power Defense breaker is engineered specifically for Eaton Power Defense enclosures, as well as compatible Eaton switchboards and panelboards that accept bolt-on Frame 2 devices.
What do the letters and numbers in the PDG21G0025TFFL part number mean?
"PDG2" designates a Global Frame 2 Power Defense breaker. "1" indicates a single pole, "G" specifies the 35kA at 480VAC interrupting capacity, "0025" is the 25A rating, "TFF" stands for a fixed thermal-magnetic trip unit, and "L" indicates standard load-side lug terminals are included.
What replacement terminal lug kit is compatible with the PDG21G0025TFFL?

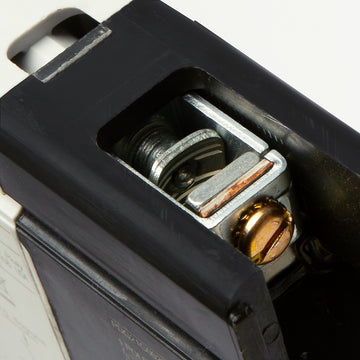

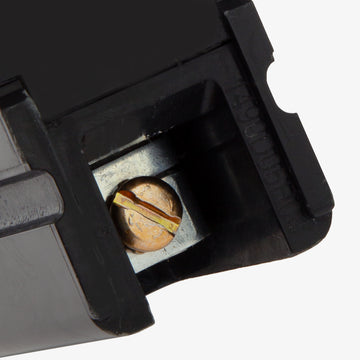

This breaker uses the Eaton PDG2X1T100 terminal lug kit on the load side, which accommodates aluminum or copper wire sizes from 14 AWG to 1/0 AWG.
Does the PDG21G0025TFFL feature adjustable trip settings?
No, this specific model features a fixed thermal and fixed magnetic trip unit. If your application requires adjustable trip settings, you will need a Power Defense breaker with an electronic trip unit instead of the "TFF" thermal-magnetic designation.
Can the PDG21G0025TFFL be used in direct current (DC) applications?
Yes, this thermal-magnetic breaker is suitable for DC applications, providing up to 10kA of interrupting capacity at 125VDC. Unlike breakers with electronic trip units which are strictly for AC systems, this thermal-magnetic model can safely protect DC circuits.
What does the "Globally Rated" designation mean for the PDG21G0025TFFL?
As part of the Power Defense Global (PDG) series, this breaker is designed to meet multiple international standards, including UL 489, CSA C22.2 No. 5, and IEC 60947-2. This makes it suitable for OEM equipment built for export or global deployment.
