Eaton / Cutler-Hammer PDG22F0015TFFL Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

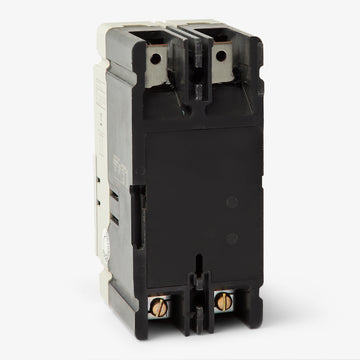

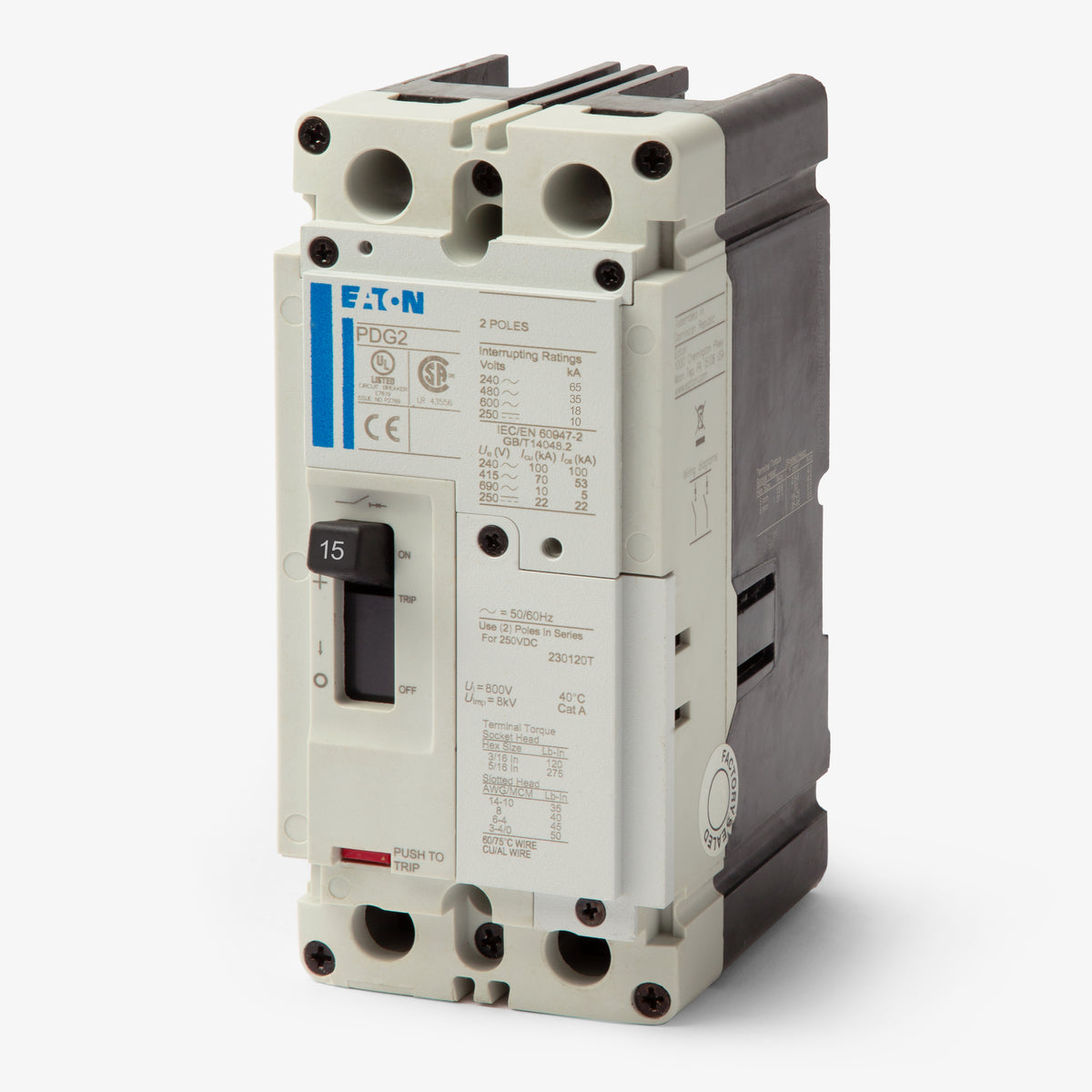

Eaton / Cutler-Hammer PDG22F0015TFFL - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0015TFFJ
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0015TFFL
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0015TFFJ
15A 2 Pole Molded Case Circuit Breaker
Description
Delivering dependable long-time and instantaneous fault protection, this two-pole Power Defense breaker handles up to 35kAIC at 240VAC. The compact Frame 2 footprint accommodates a wide range of commercial, industrial, and marine power distribution applications. Electricians frequently specify this model to swap out legacy FDB2015 and EGB2015 units. It comes equipped with load side lugs, ensuring secure terminations for wire gauges ranging from 14 AWG to 4 AWG.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG22F0015TFFL replace older Eaton Series C or Series G breakers?
Yes, the Power Defense PDG2 frame is Eaton's modern global platform designed to replace legacy Series C (such as FD and FDB) and Series G (such as EGB) breakers. It is frequently specified to swap out legacy FDB2015 and EGB2015 units, though updated mounting hardware is required for installation in older equipment.
What do the letters TFFL signify in the PDG22F0015TFFL catalog number?
In Eaton Power Defense nomenclature, TFF indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection. The L designates that the breaker comes factory-equipped with standard line and load lugs.
Are the trip settings on the PDG22F0015TFFL adjustable?
No, this specific model features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials. Applications requiring field-adjustable curve shaping will need a Power Defense breaker equipped with an electronic trip unit.
What wire gauge range do the standard lugs on this breaker accept?

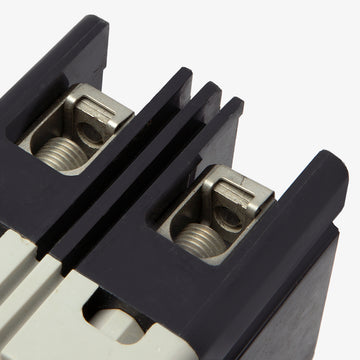

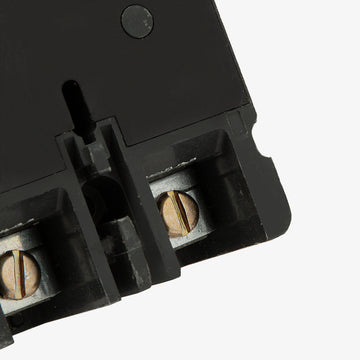

The factory-installed standard lugs on the PDG22F0015TFFL are designed to accept either aluminum or copper conductors ranging from 14 AWG to 4 AWG.
What type of enclosures and panels accept the PDG22F0015TFFL?
This Power Defense Frame 2 breaker is a bolt-on unit designed specifically for use in Eaton Power Defense panelboards, switchboards, and approved standalone enclosures.
Is the PDG22F0015TFFL suitable for direct current (DC) systems?
Yes, in addition to its standard AC ratings, this thermal-magnetic breaker is rated for use in DC applications up to 250VDC. When used in a 250VDC system, it provides an interrupting capacity of 10 kAIC.
