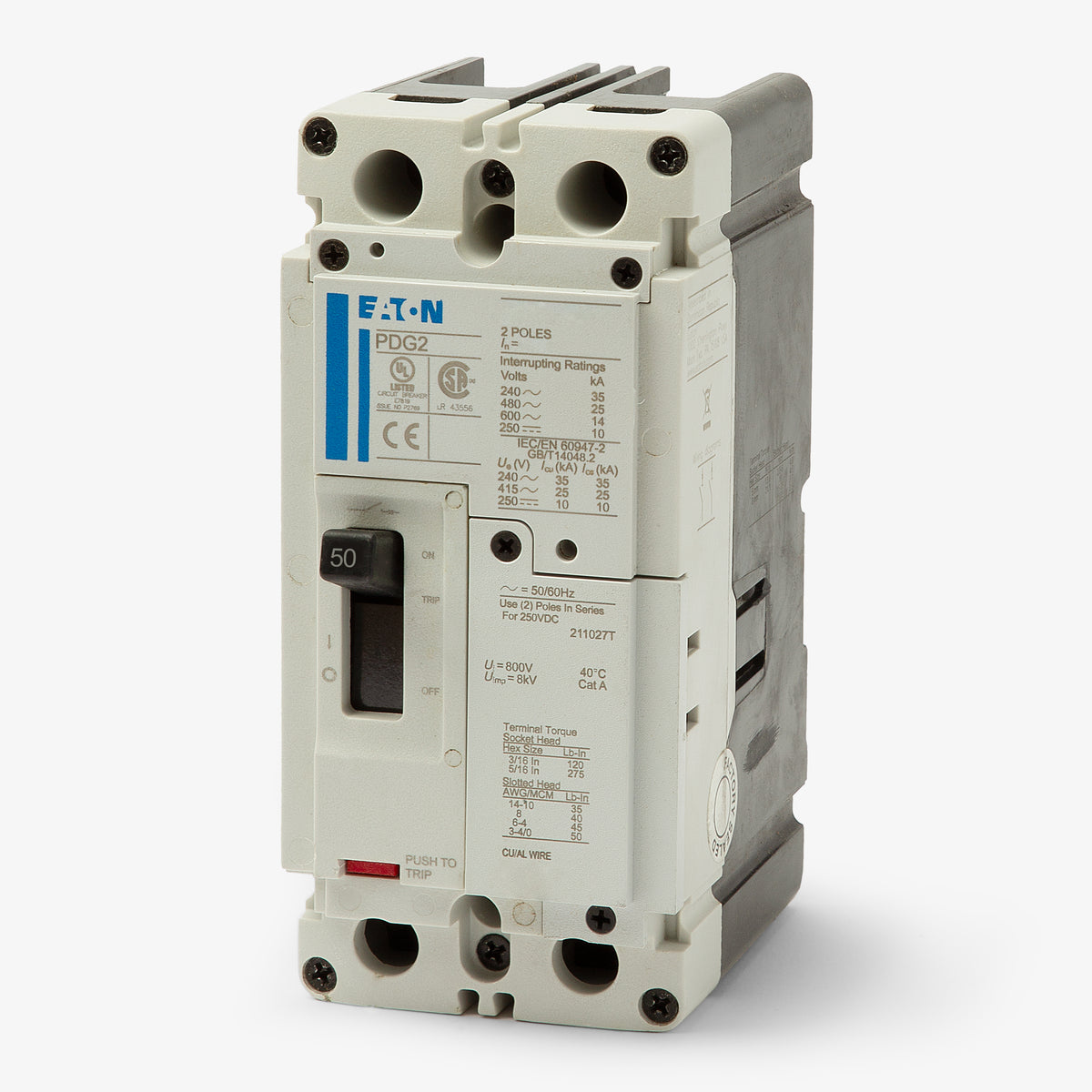

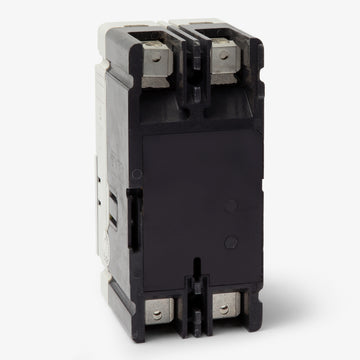

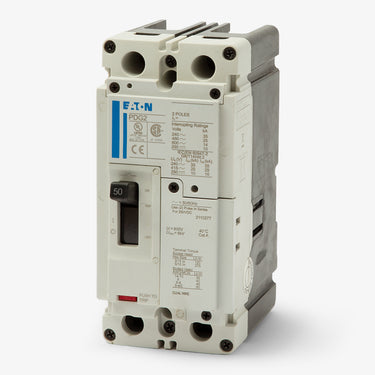

Eaton / Cutler-Hammer PDG22F0050TFFJ Molded Case Circuit Breaker
- 50A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0050TFFJ - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0050TFFJ
50A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0050TFFL
50A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22F0060TFFJ
60A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the Power Defense Frame 2 series, this 50A molded case circuit breaker delivers robust long-time and instantaneous (LI) protection. It is globally rated for commercial, industrial, and marine environments. The unit mounts into Eaton panelboards and switchboards, acting as a substitute for the legacy Series C FD2050. It comes equipped with standard line and load terminals. Featuring a 25 kAIC rating at 480VAC, it includes current limiting capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0050TFFJ |
| Series | PDG2 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersDoes the PDG22F0050TFFJ replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 series is a direct dimensional and functional replacement for legacy Eaton and Cutler-Hammer Series C Frame F breakers, such as the FD2050.
What does the F in the PDG22F0050TFFJ catalog number indicate?
In the Eaton Power Defense nomenclature, the F following the frame and pole designation indicates the breaker's interrupting capacity. For this model, it signifies a 25kAIC rating at 480VAC.
What equipment is compatible with the PDG22F0050TFFJ?
This breaker is designed to mount in Eaton Power Defense panelboards, switchboards, and enclosures configured for Frame 2 (PDG2) molded case circuit breakers.

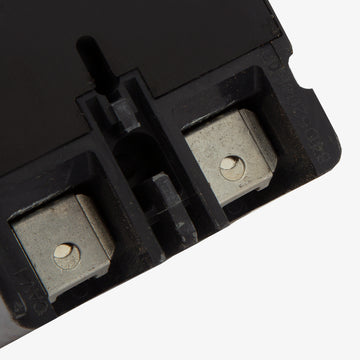

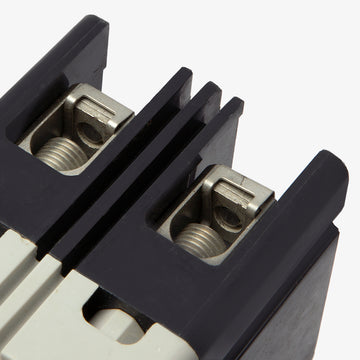

What type of terminals are included with the PDG22F0050TFFJ?
This breaker comes equipped with standard line and load lugs (catalog number PDG2X2T100) that accept 14 AWG to 1/0 AWG aluminum or copper wire.
Can the PDG22F0050TFFJ be reverse fed?
Yes, Eaton Power Defense Frame 2 molded case circuit breakers can be reverse fed, allowing the power source to be connected to either the top or bottom terminals.
Does the PDG22F0050TFFJ have adjustable trip settings?
No, this breaker features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. It provides standard long-time and instantaneous (LI) protection without field adjustability.
