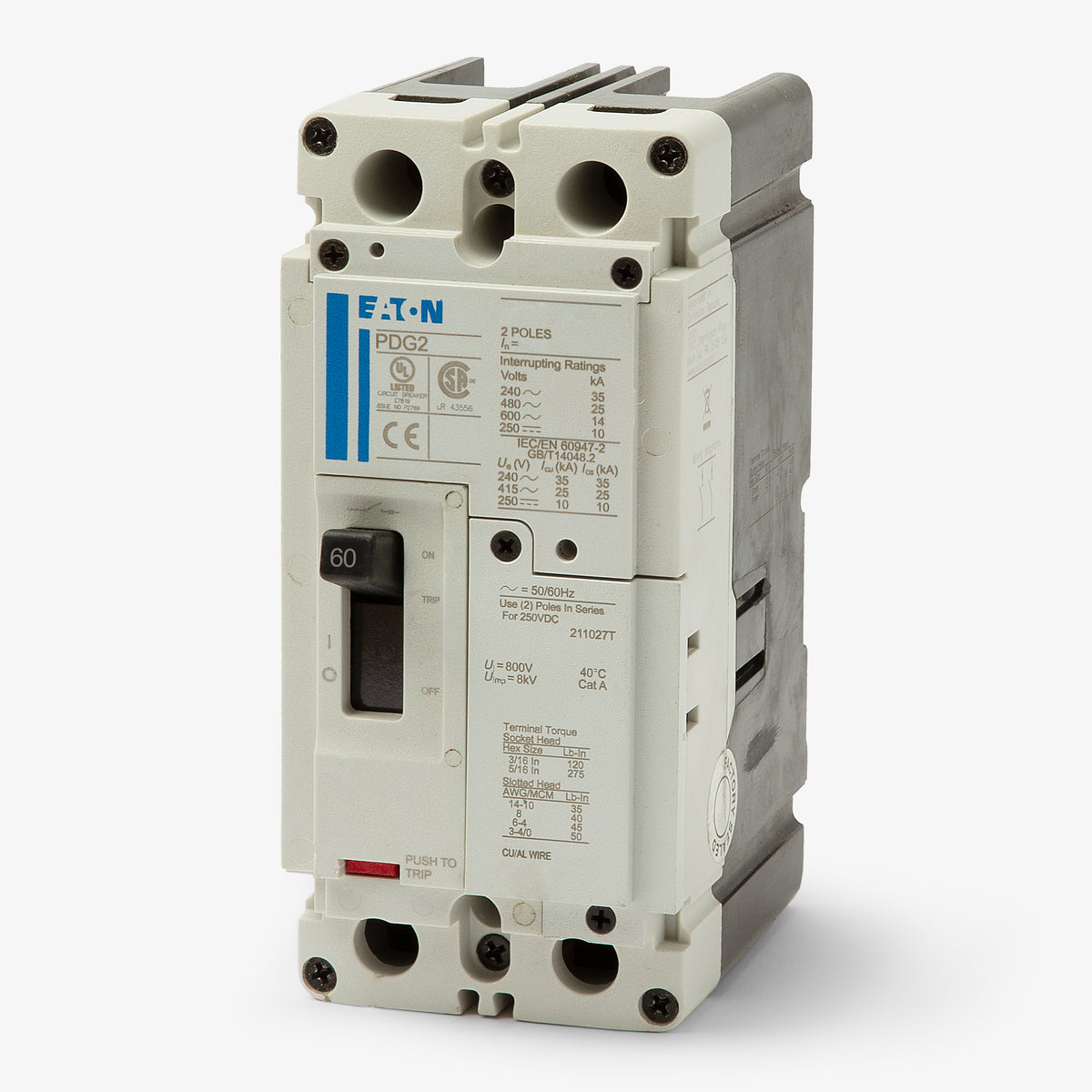

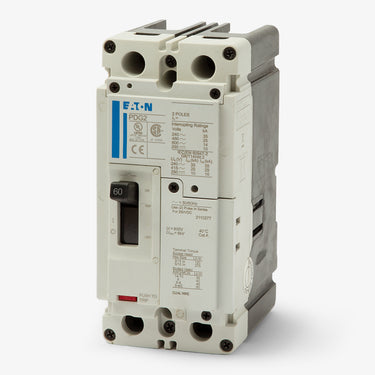

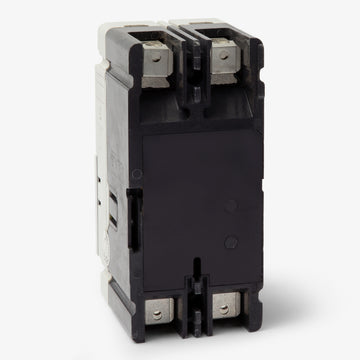

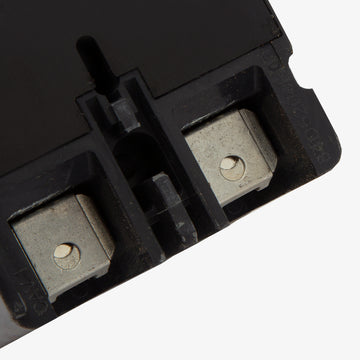

Eaton / Cutler-Hammer PDG22F0060TFFJ Molded Case Circuit Breaker
- 60A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0060TFFJ - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0060TFFJ
60A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0060TFFL
60A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0060TFFL
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG22F0060TFFJ delivers robust circuit protection up to 600VAC. This 60A, two-pole molded case circuit breaker belongs to the globally rated Power Defense series. It installs into Eaton panelboards using a standard panel mount configuration and includes line and load lugs. Serving as a replacement for discontinued FDB2060 units, it features a fixed thermal-magnetic trip unit and a 35kAIC rating at 240V for reliable LI protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0060TFFJ |
| Series | PDG2 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG22F0060TFFJ be used to replace older Eaton Series C breakers?
Yes, this Power Defense Frame 2 breaker serves as a replacement for discontinued FDB2060 units. It provides updated global ratings while maintaining a compatible panel mount configuration.
What wire sizes are accepted by the terminals on the PDG22F0060TFFJ?

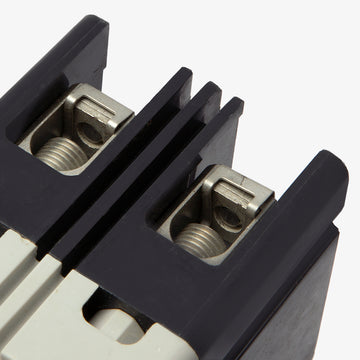

The factory-installed line and load lugs accommodate conductors ranging from 14 AWG to 1/0 AWG. These terminals are dual-rated for both aluminum and copper wiring.
Where is the PDG22F0060TFFJ typically installed?
This feed-thru molded case circuit breaker is engineered specifically for integration into Eaton Power Defense enclosures and panelboards that support Frame 2 devices.
How does the fixed thermal-magnetic trip unit operate on this model?
The LI trip unit provides Long-Time overload protection and Instantaneous short-circuit protection. Because the TFFJ suffix indicates fixed thermal and fixed magnetic settings, neither trip threshold can be field-adjusted.
Can this Eaton Frame 2 breaker be applied in DC electrical systems?
Yes, the PDG22F0060TFFJ is rated for 250VDC applications with a 10kAIC interrupting capacity, in addition to its standard AC ratings up to 600VAC.
Does this breaker provide ground fault or equipment protection?
No, the PDG22F0060TFFJ features a standard LI (Long-Time and Instantaneous) thermal-magnetic trip unit. It does not include integrated ground fault or equipment protection functions.
