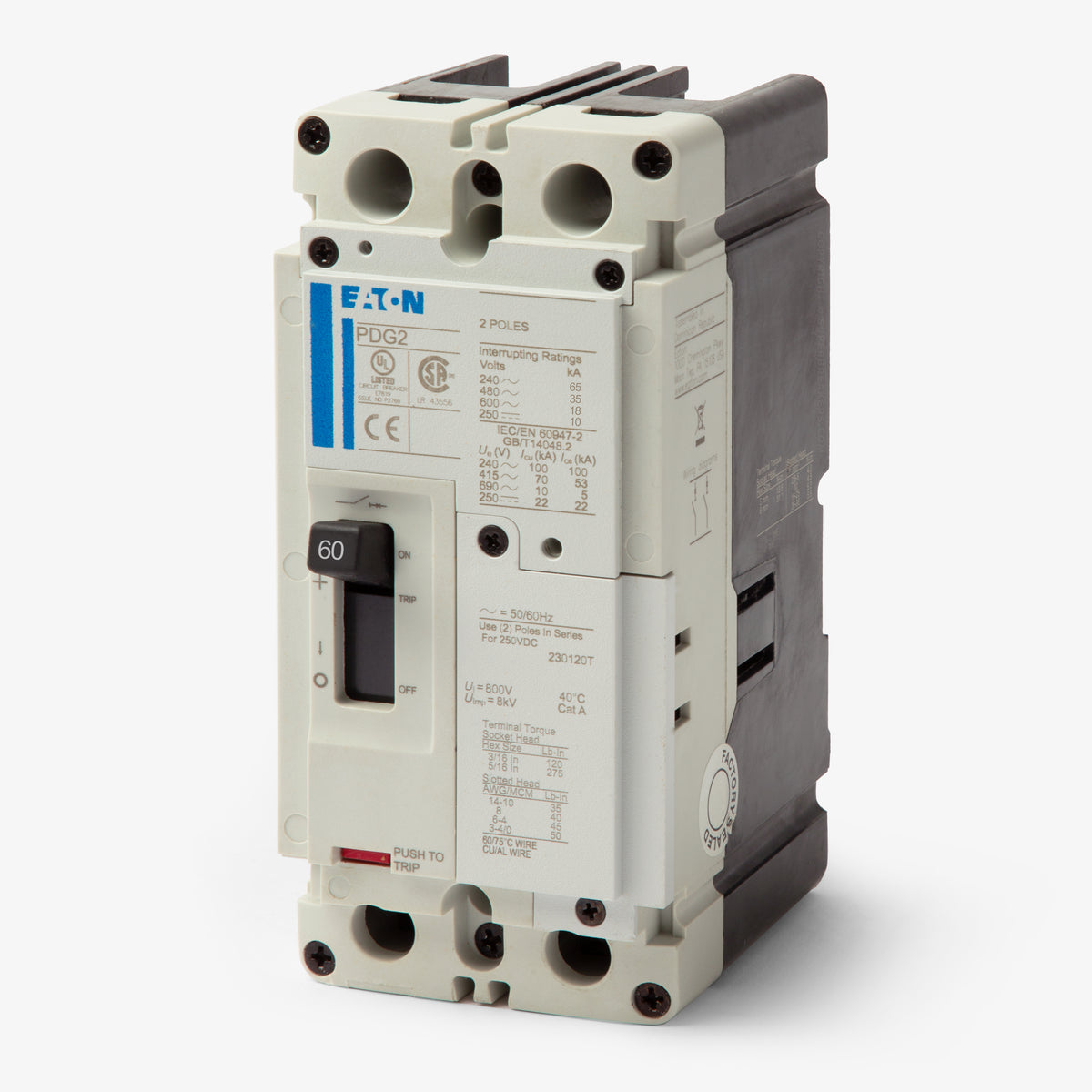

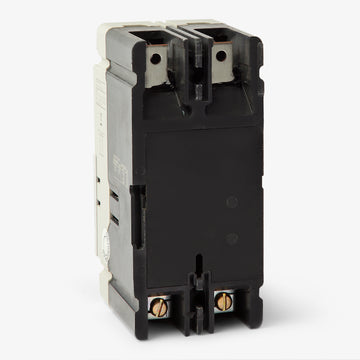

Eaton / Cutler-Hammer PDG22G0060TFFL Molded Case Circuit Breaker
- 60A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0060TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0060TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22G0060TFFL - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0060TFFL
60A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0070TFFJ
70A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0070TFFL
70A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable overcurrent protection, this 60A Power Defense circuit breaker is ideal for marine, commercial, and industrial facilities. The two-pole device utilizes fixed thermal and magnetic trip settings to safeguard critical electrical circuits. Designed for panel mount installations, it integrates seamlessly into Eaton switchboards and enclosures. It replaces older Series C F-Frame FD2060 models. This specific configuration features standard terminals on the load side only.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

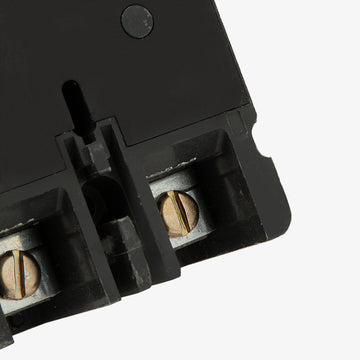

| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter |
|---|---|

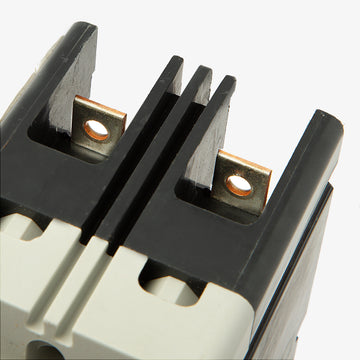

| Accessories | Standard Terminals Load Only (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan the PDG22G0060TFFL be used to replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 series is the modern replacement for legacy Eaton and Cutler-Hammer Series C F-Frame breakers, such as the FD2060.
Is the PDG22G0060TFFL suitable for direct current (DC) applications?
Yes, it is rated for up to 250VDC. In the Power Defense line, DC ratings are exclusive to thermal-magnetic breakers like this one and typically require wiring two poles in series to achieve the full 250VDC rating.
Are the trip settings adjustable on the PDG22G0060TFFL?
No. This breaker features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip thresholds are factory-set and cannot be modified in the field.
What standards does the Power Defense Global (PDG) series meet?
The "G" in the PDG prefix indicates it is a globally rated breaker, designed to meet major industry standards including UL 489, CSA, IEC 60947-2, and CCC.
Does this breaker provide ground fault or arc fault protection?
No, the PDG22G0060TFFL is a standard thermal-magnetic breaker designed strictly for overload and short-circuit protection. It does not include built-in ground fault (GFCI) or arc fault (AFCI) circuitry.
Can the PDG22G0060TFFL be reverse fed?
Yes, standard Power Defense Frame 2 molded case circuit breakers can be reverse fed. Note that motor circuit protectors (MCPs) in this series cannot be reverse fed.
Is the PDG22G0060TFFL HACR rated?
Yes, as a UL 489 listed breaker, it is inherently HACR (Heating, Air Conditioning, and Refrigeration) rated and suitable for protecting multi-motor HVAC equipment.
