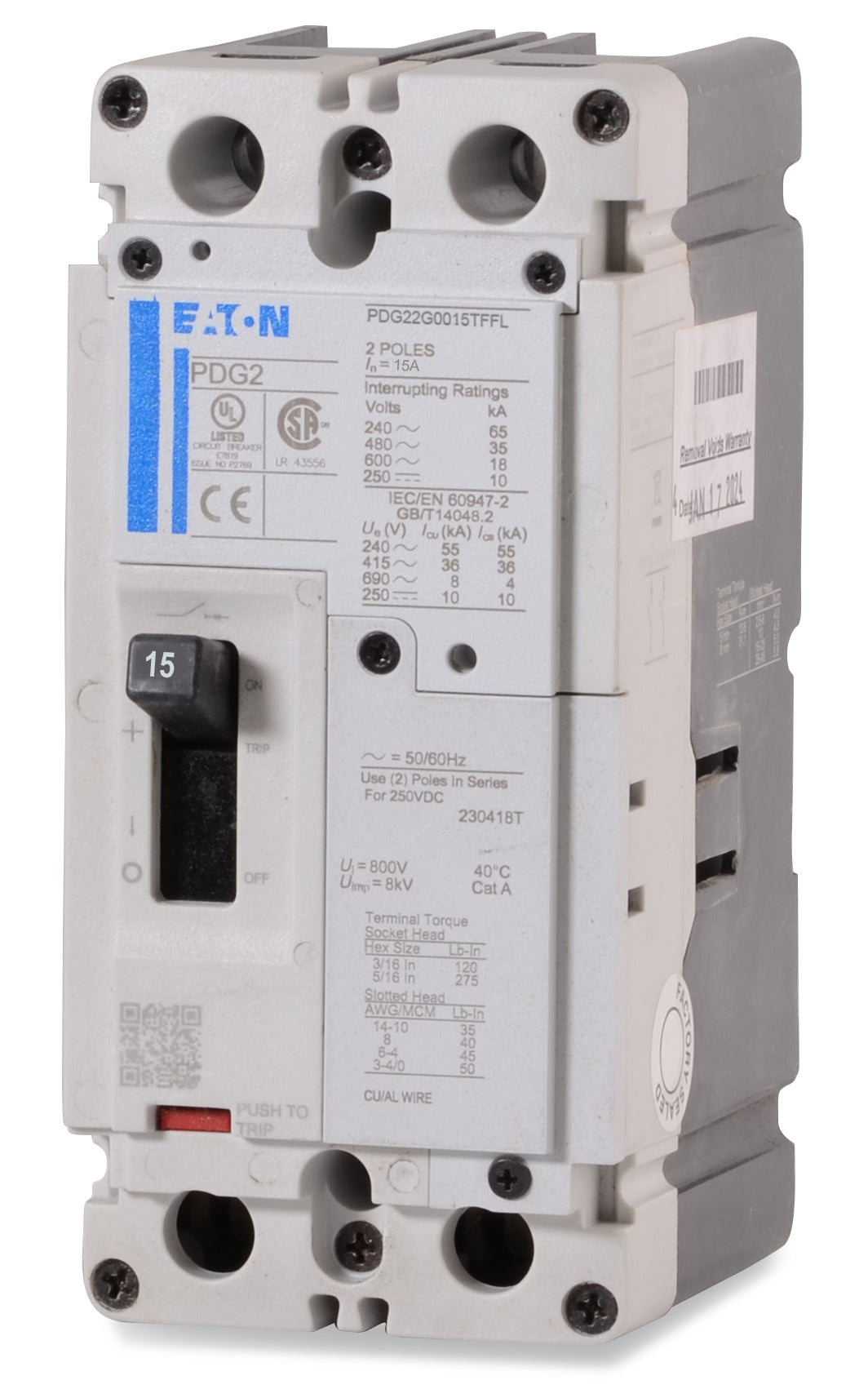

Eaton / Cutler-Hammer PDG22G0015TFFL Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22G0015TFFL - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0015TFFJ
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0015TFFL
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0020TFFJ
20A 2 Pole Molded Case Circuit Breaker
Description
Part of the globally rated Power Defense series, the Eaton PDG22G0015TFFL is a 2-pole, 15A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to deliver precise long-time and instantaneous (LI) protection for commercial and industrial systems. This Frame 2 breaker mounts into Eaton panelboards, acting as a reliable upgrade for legacy FD2015 and EGE2015 units. It comes equipped with load side terminals. Boasting a 65kAIC rating at 240VAC, it ensures superior safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Terminals (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG22G0015TFFL replace older Eaton Series C breakers?
Yes, this Power Defense Frame 2 breaker serves as a direct upgrade and replacement for legacy FD2015 and EGE2015 circuit breakers in existing Eaton panelboards.
Which panelboards are compatible with this Power Defense Frame 2 breaker?
The PDG22G0015TFFL is designed for bolt-on installation in Eaton Pow-R-Line 1a, 2a, 3a, and 4 panelboards, as well as compatible Eaton switchboards and enclosures.
Does the PDG22G0015TFFL come with both line and load lugs?
No, this specific configuration includes load-side terminals only. Line-side connections must be sourced separately or integrated directly into the panelboard bus depending on your setup.
What wire sizes are accepted by the load lugs on this 15A breaker?
The included load-side lugs accept wire gauges ranging from 14 AWG up to 1/0 AWG.
Can I adjust the trip settings on the PDG22G0015TFFL?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous protection settings are factory-set and cannot be adjusted in the field.
Is the PDG22G0015TFFL rated for use in DC circuits?
Yes, in addition to its AC ratings, this 2-pole breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC.
