Eaton/Cutler-Hammer PDG22G0080TFFL Circuit Breaker
- 80
- 2 Pole
- Panel
Eaton/Cutler-Hammer
PDG22G0080TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG22G0080TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG22G0080TFFL 2 Pole Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton/Cutler-Hammer PDG22G0080TFFL 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 2 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 1 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|

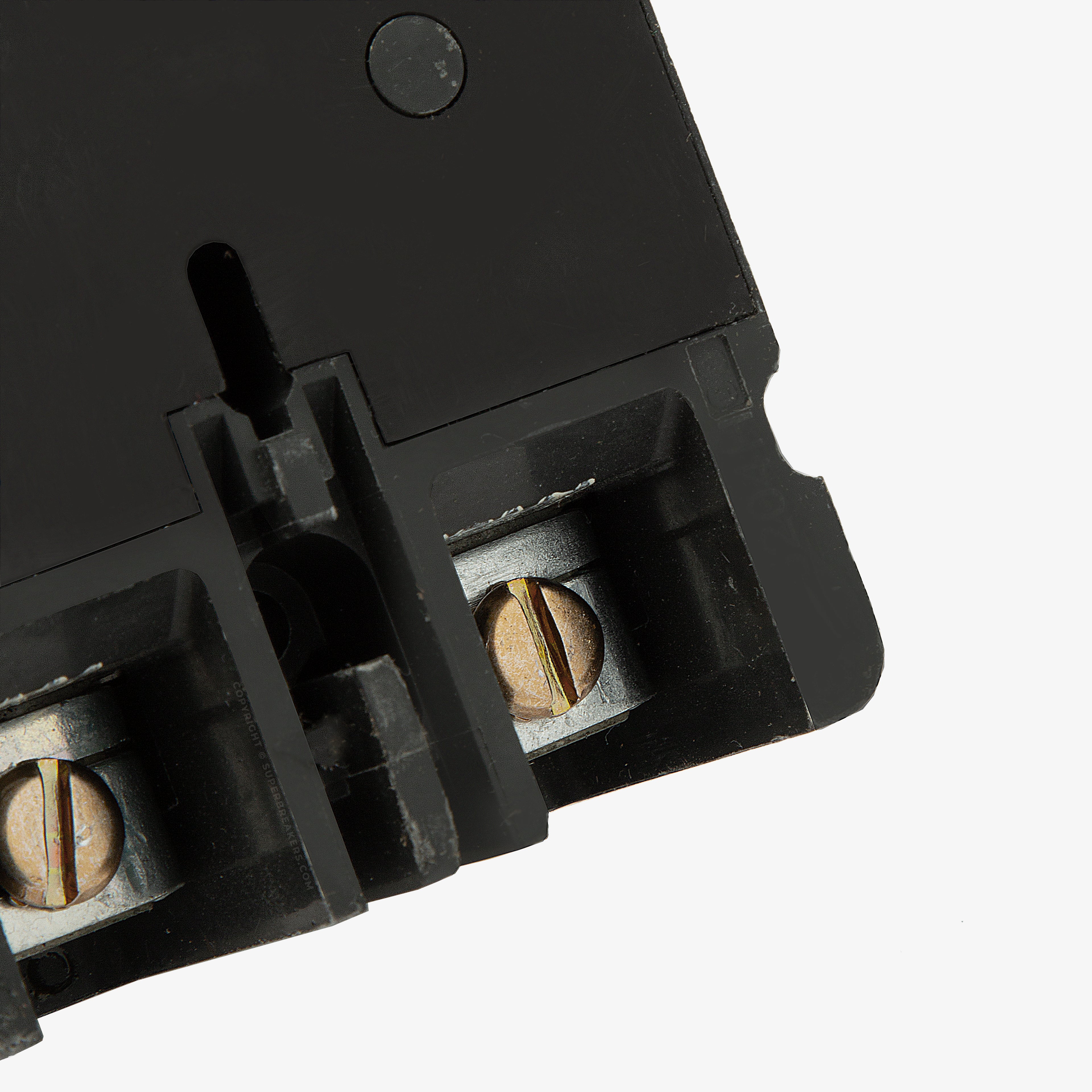

| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG22G0080TFFL 2 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 2 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 1 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG22M0090TFFL
90A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0070TFFJ
70A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0070TFFL
70A 2 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer PDG22G0080TFFL 2 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG22G0080TFFL is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG22G0080TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 2 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 1 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhat panels are compatible with the PDG22G0080TFFL?
This breaker is designed for Eaton Power Defense panelboards, switchboards, and enclosures. If you are retrofitting this into a legacy Pow-R-Line panelboard, UL requires the installation of a new Pow-R-Line Xpert connector kit before mounting the breaker.
Can the Power Defense Frame 2 replace older Series C F-frame breakers?
Yes, Power Defense Frame 2 circuit breakers are the direct modern upgrade for legacy Eaton and Cutler-Hammer Series C F-frame breakers. Note that aftermarket installations in older assemblies may require updated mounting hardware or connector kits.
What does the TFFL suffix mean in the PDG22G0080TFFL part number?
In the Power Defense nomenclature, TFF indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection. The L signifies that the breaker is supplied with standard load-side lug terminals.
Does this breaker include electronic diagnostic features?
No, the PDG22G0080TFFL features a traditional thermal-magnetic trip unit for standard long-time and instantaneous protection. It does not include the Power Xpert Release (PXR) electronic trip unit required for advanced network communication or predictive diagnostics.
Is the PDG22G0080TFFL suitable for international projects?
Yes, the Eaton Power Defense series is a globally rated platform. These breakers are certified to meet major local and international requirements, including UL, CSA, IEC, and CCC standards.
What safety procedures are required when installing this breaker?
Always de-energize the switchboard or panelboard before beginning installation. Verify that no voltage is present using a properly rated voltage testing device, and ensure all installers wear the appropriate personal protective equipment (PPE) as required by NFPA 70E and local safety regulations.
