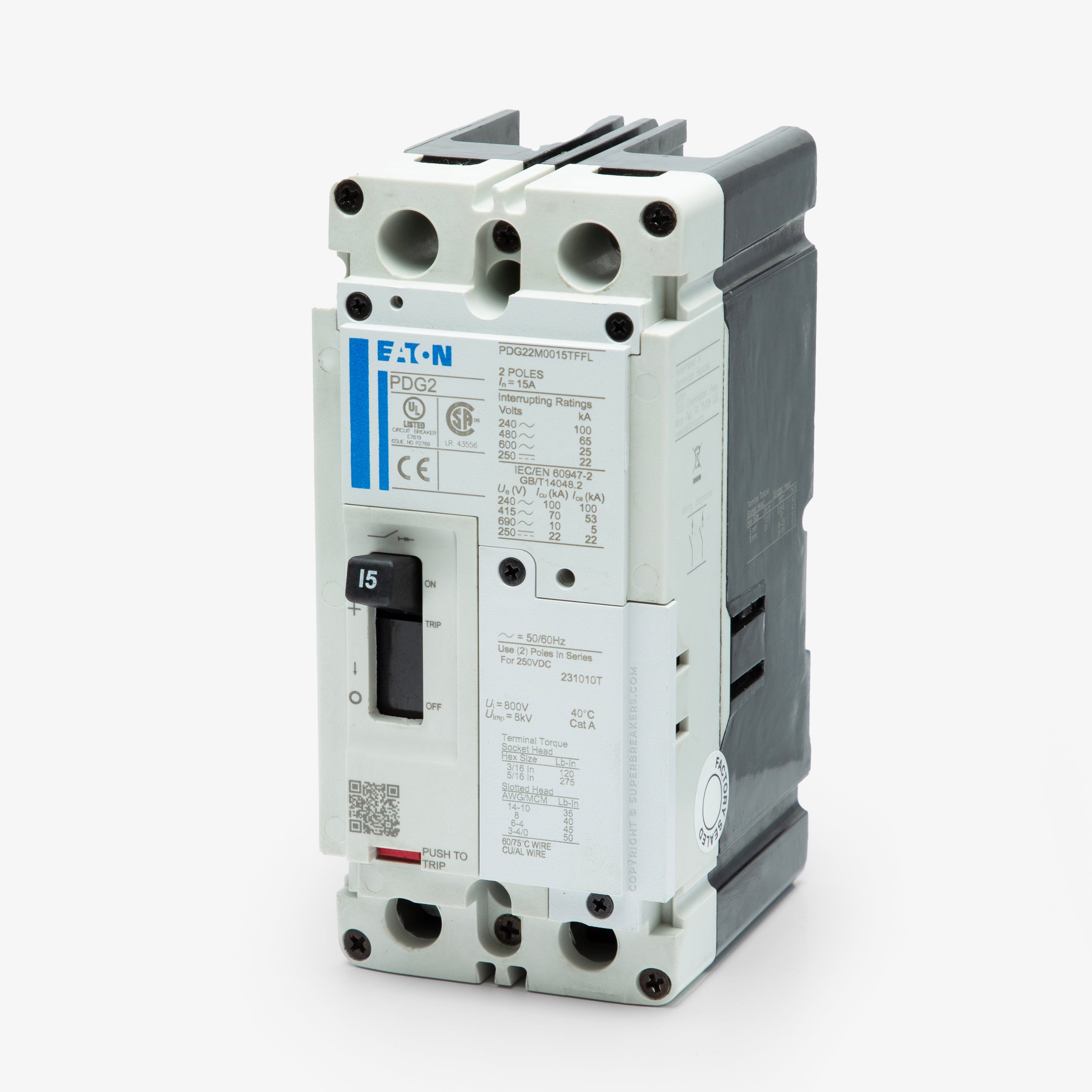

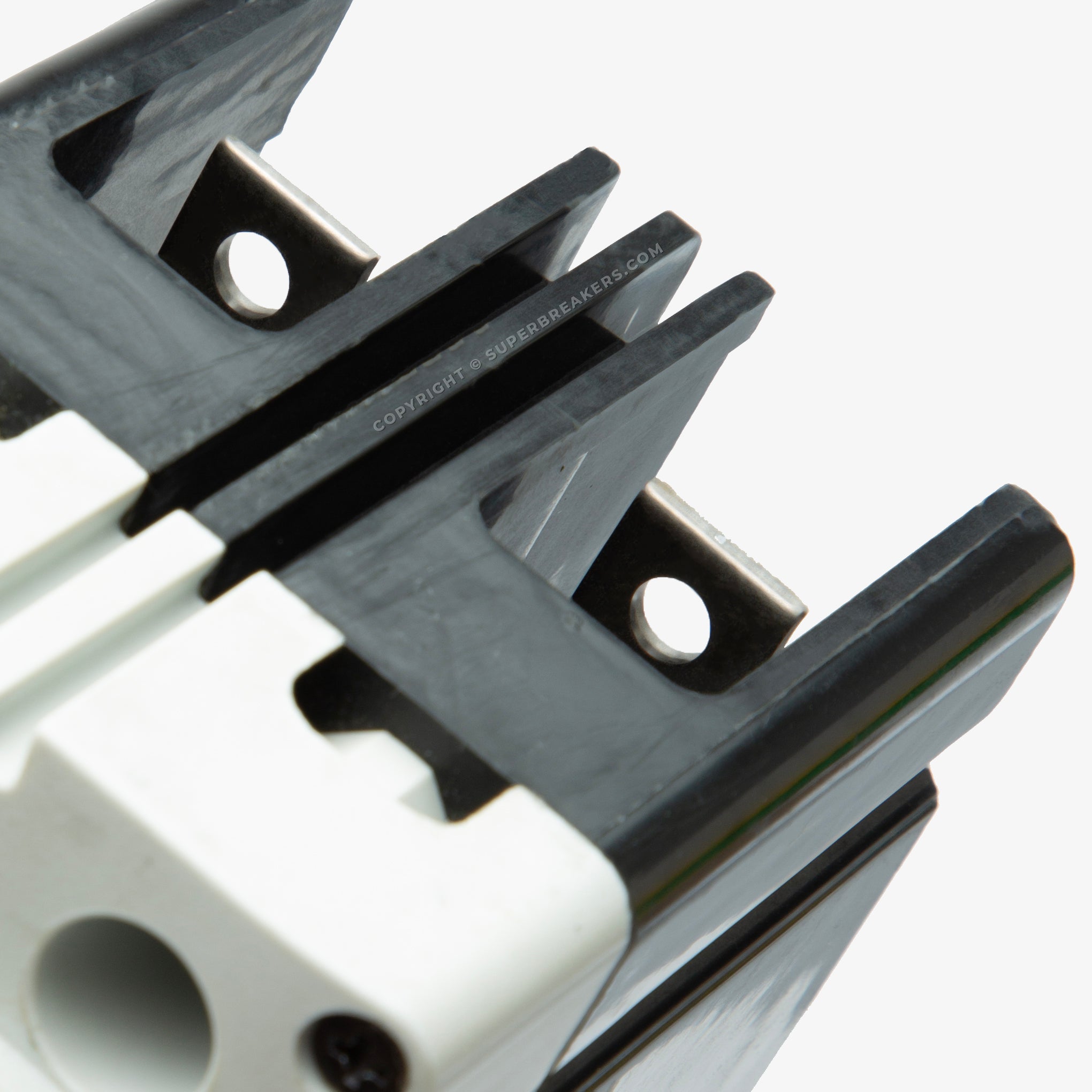

Eaton / Cutler-Hammer PDG22M0015TFFL Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22M0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22M0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22M0015TFFL - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0020TFFL
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0020TFFJ
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0025TFFL
25A 2 Pole Molded Case Circuit Breaker
Description
Designed for modern electrical systems, the Eaton PDG22M0015TFFL is a 2-pole, 15A molded case circuit breaker from the Power Defense family. It provides reliable overcurrent protection for commercial and industrial applications requiring a 65kAIC rating at 480VAC. This Frame 2 breaker mounts into Eaton panelboards and enclosures. It serves as an exact replacement for legacy HFD2015 and EGH2015FFG units. Features include a fixed thermal-magnetic trip unit and standard load-side terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
7 answersWhat does the TFFL suffix mean in the PDG22M0015TFFL catalog number?
In the Eaton Power Defense catalog system, TFFL indicates that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings (TFF). The L signifies that it comes with standard lugs.
What does the M stand for in the middle of the catalog number?
The M designates the interrupting capacity tier for this specific Power Defense frame. In this case, it indicates a rating of 65kAIC at 480VAC.
Can the PDG22M0015TFFL circuit breaker be reverse fed?
Yes, standard Eaton Power Defense Frame 1 and Frame 2 molded case circuit breakers can be reverse fed. Note that this applies to standard thermal-magnetic breakers like this one, but not to motor circuit protectors.

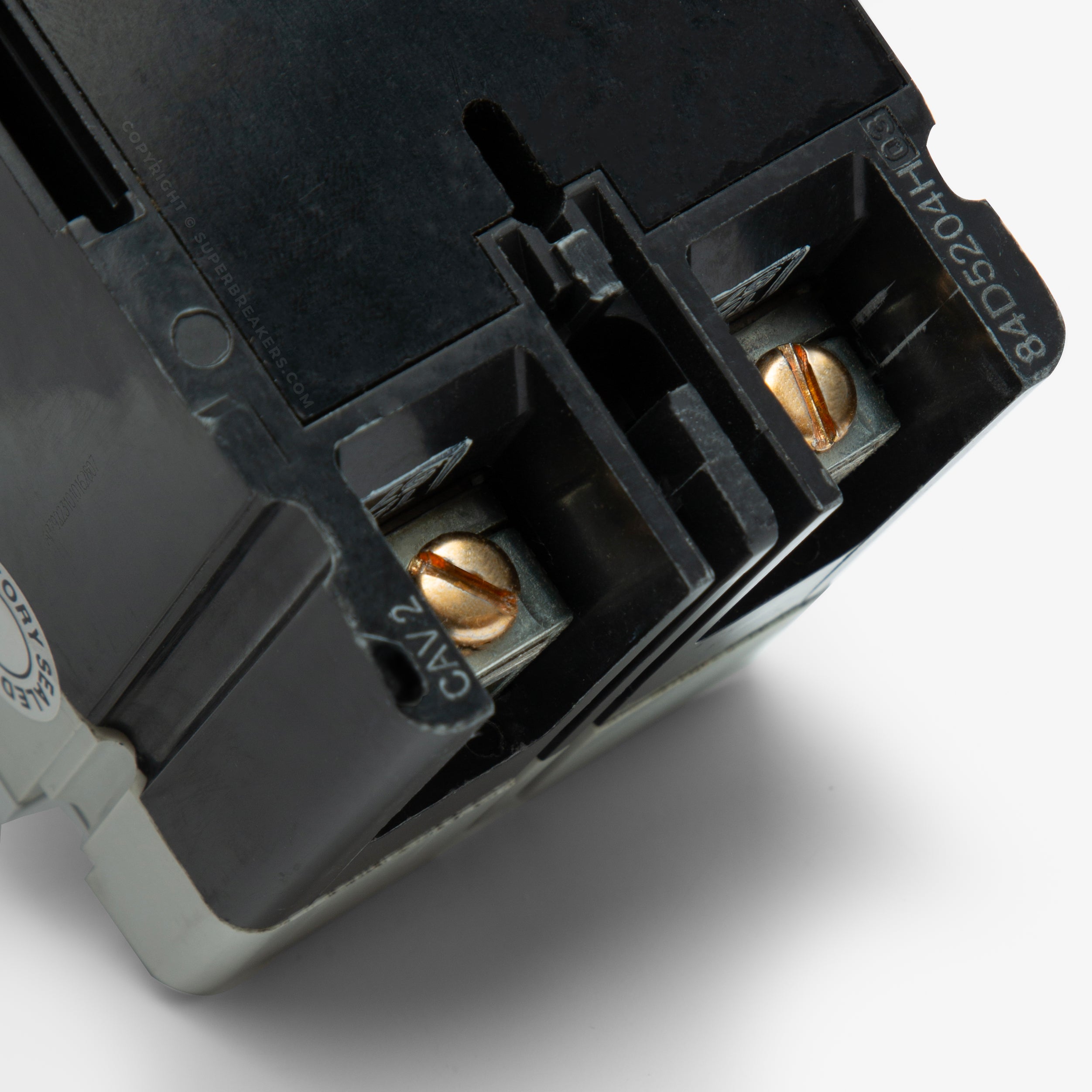

What wire sizes are compatible with the standard lugs on this breaker?
The factory-installed lugs accept 14 to 1/0 AWG aluminum or copper wire. For proper installation, always verify the specific torque requirements printed on the breaker label or in Eaton instruction leaflet IL012106EN, as torque values vary by wire gauge.
Is the PDG22M0015TFFL rated for direct current (DC) systems?
Yes, this breaker is suitable for DC applications. It carries a maximum voltage rating of 250VDC and provides an interrupting capacity of 22kAIC at that voltage.
Does this Power Defense breaker include ground fault protection?
No, this model uses a standard thermal-magnetic trip unit providing long-time and instantaneous (LI) protection. It does not have built-in ground fault equipment protection or personnel protection.
What equipment is this Frame 2 breaker designed to be installed in?
The PDG22M0015TFFL is a bolt-on molded case circuit breaker designed for use within Eaton Power Defense panelboards, switchboards, and standalone enclosures.
