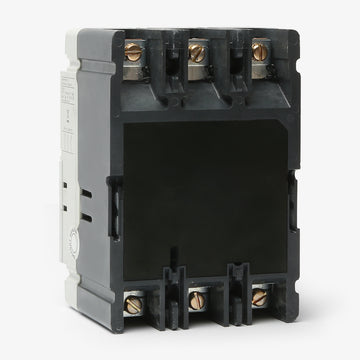

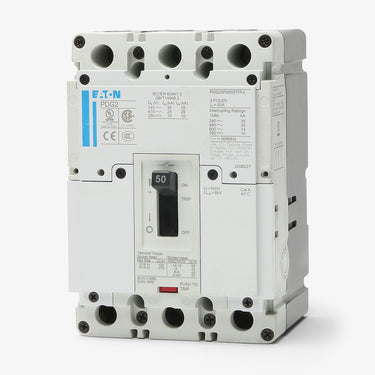

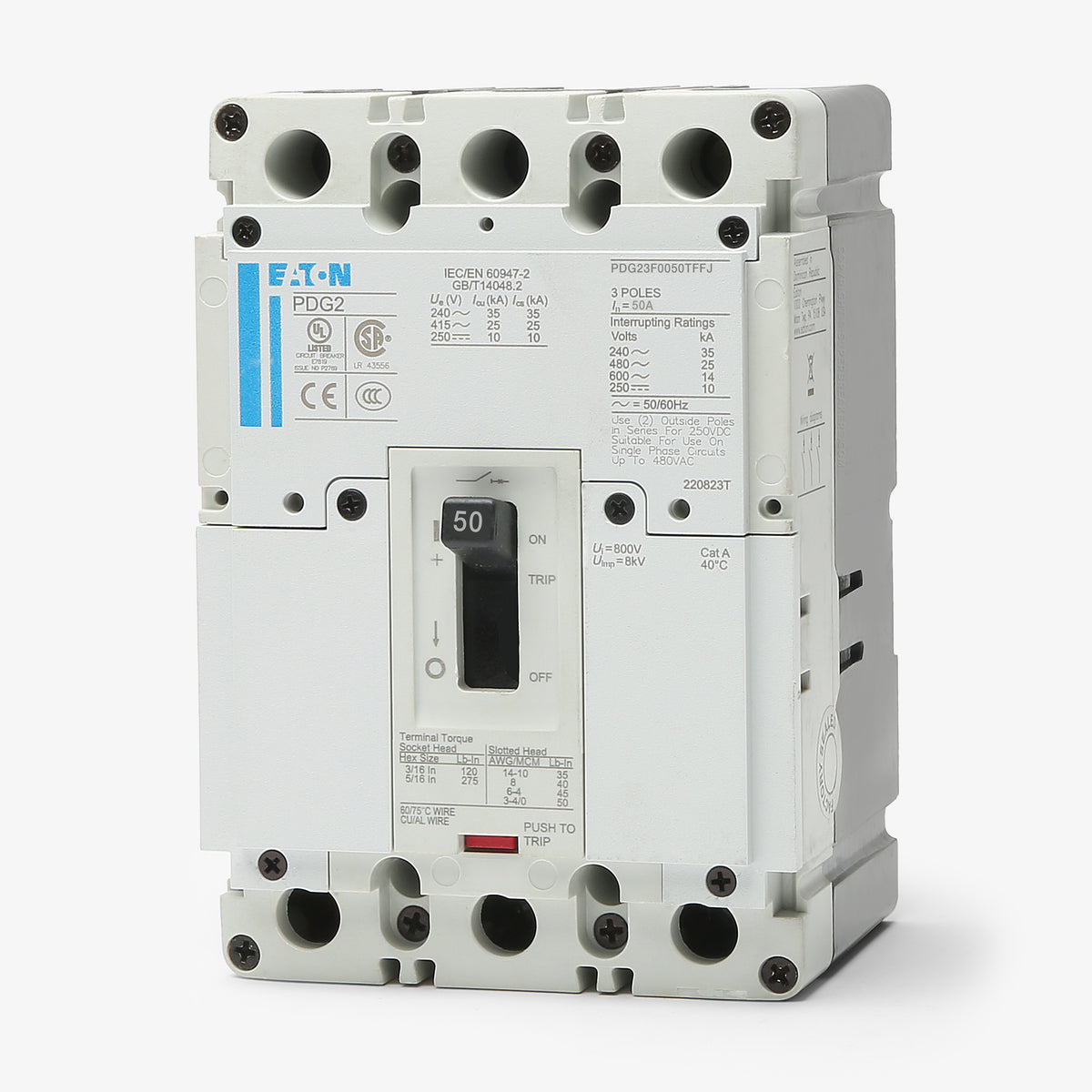

Eaton / Cutler-Hammer PDG23F0050TFFJ Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0050TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0050TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0050TFFJ - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23G0050TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23G0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG23F0050TFFJ is a 3-pole, 50A molded case circuit breaker from the Power Defense Frame 2 series. It mounts into compatible Eaton panelboards and switchboards, serving as a replacement for legacy FDB3050 breakers. Rated at 35kAIC at 240V (25kAIC at 480V), this unit features fixed thermal-magnetic trip technology for reliable long-time and instantaneous (LI) protection. Includes standard line and load terminals.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0050TFFJ |
| Series | PDG2 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated, Current Limiting |
Product FAQs
6 answersCan the PDG23F0050TFFJ be used to replace older Eaton or Cutler-Hammer breakers?
Yes, the Power Defense Frame 2 series serves as a replacement for legacy 50A F-frame breakers, such as the FDB3050, in compatible panelboards and switchboards.
What does the F in the PDG23F0050TFFJ catalog number indicate?
The F designates the breaker's interrupting capacity. For this Frame 2 model, it signifies a 25kAIC rating at 480VAC and a 35kAIC rating at 240VAC.
Does the PDG23F0050TFFJ come with line and load lugs installed?

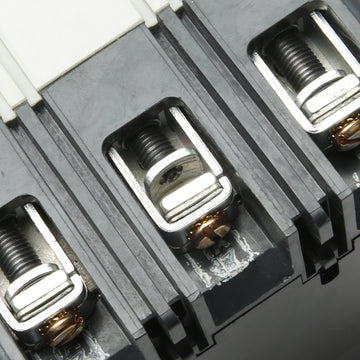

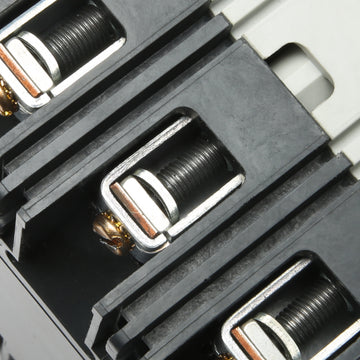

Yes, the TFFJ suffix indicates that this breaker includes standard line and load terminals. These factory-installed lugs accept 14 to 1/0 AWG aluminum or copper wire.
What enclosures and panelboards are compatible with the PDG23F0050TFFJ?
This breaker is designed for use with Eaton Power Defense enclosures and panelboards that accept Frame 2 molded case circuit breakers.
Is the trip unit on the PDG23F0050TFFJ adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without field adjustability.
Can the PDG23F0050TFFJ be used in DC applications?
Yes, this breaker is rated for 250VDC with an interrupting capacity of 10kAIC, making it suitable for compatible direct current systems.
