Eaton / Cutler-Hammer PDG23F0050TFFL Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0050TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0050TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

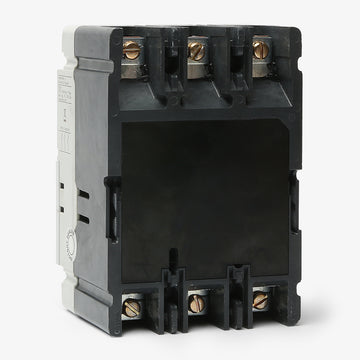

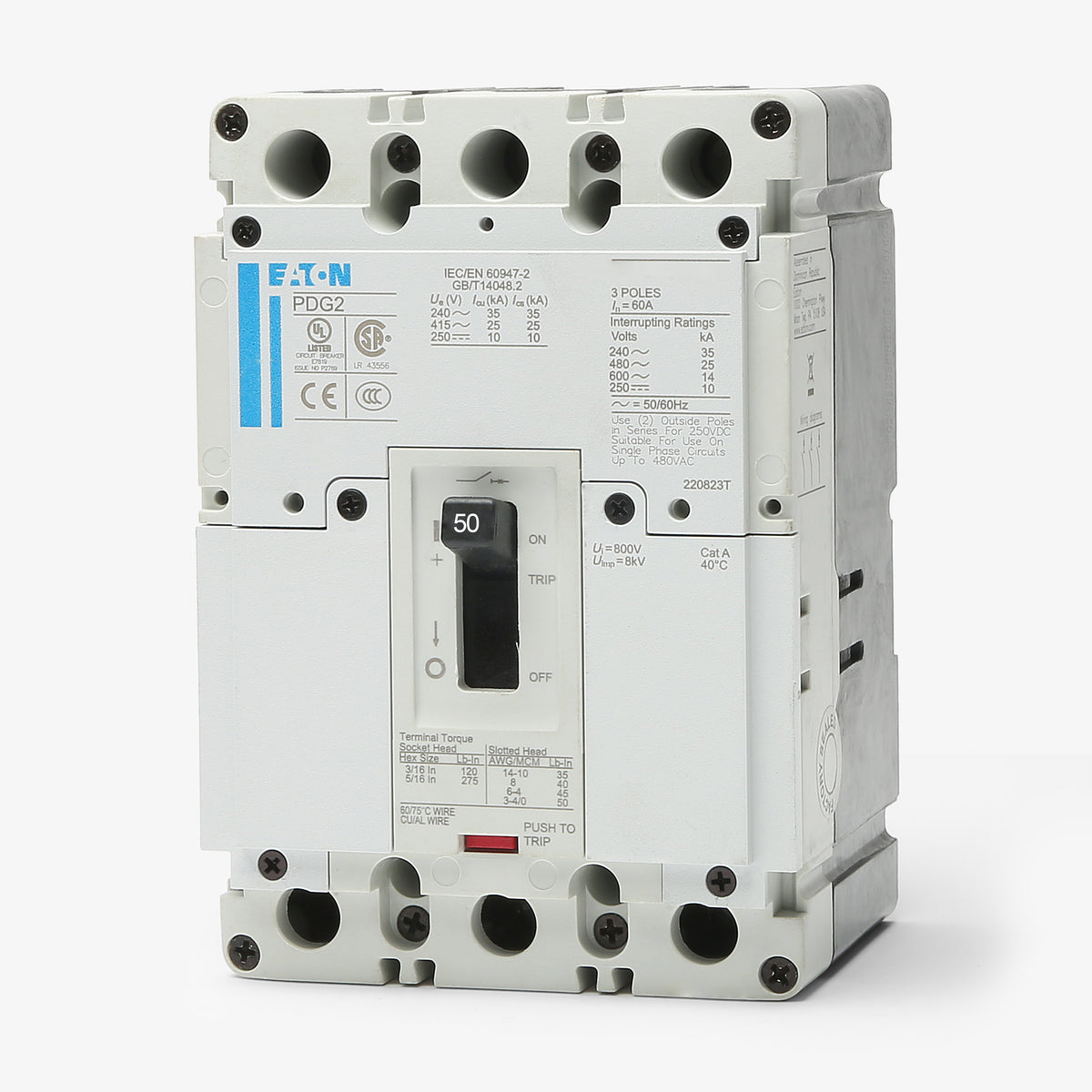

Eaton / Cutler-Hammer PDG23F0050TFFL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23G0050TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0050TFFL
50A 3 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, the Eaton PDG23F0050TFFL is a 3-pole, 50A molded case circuit breaker within the advanced Power Defense family. This Frame 2 device mounts into Eaton enclosures and panelboards, offering a seamless upgrade path for older EGE3050FFG and FD3050 models. Delivering 35kAIC at 240V and 25kAIC at 480V, it utilizes reliable fixed thermal and magnetic trip functions (LI) to safeguard commercial systems. Configured with standard load terminals only.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator, DIN Rail Adapter |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting |
Product FAQs
6 answersWhat older Eaton or Cutler-Hammer breakers does the PDG23F0050TFFL replace?
The Power Defense Frame 2 series provides a direct upgrade path for legacy Series C F-Frame and Series G EG-Frame breakers. This 50A model serves as a modern replacement for older catalog numbers like the FD3050 and EGE3050FFG.
What type of wire terminals are included with this Power Defense Frame 2 breaker?

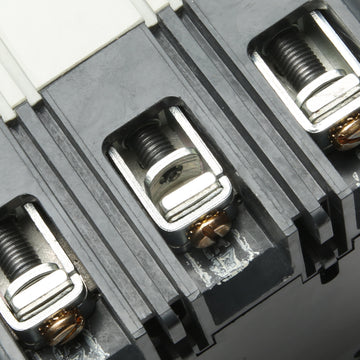

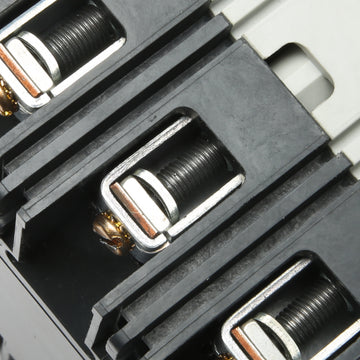

The PDG23F0050TFFL comes standard with load-side lug terminals only. These lugs accept 14 to 1/0 AWG aluminum or copper wire. Line-side connections are typically bolted directly to the bus in compatible panelboards or switchboards.
Can the trip settings on the PDG23F0050TFFL be adjusted in the field?
No, this specific breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set for 50 amps and cannot be modified.
What enclosures and panels are compatible with this 50A breaker?
This Frame 2 molded case circuit breaker is designed for bolt-on installation in Eaton Power Defense enclosures, switchboards, and panelboards.
Is the PDG23F0050TFFL rated for direct current applications?
Yes, in addition to its AC ratings up to 600VAC, this thermal magnetic breaker is rated for 250VDC systems with an interrupting capacity of 10kAIC.
Does the PDG23F0050TFFL meet international safety standards?
Yes, the Eaton Power Defense platform is globally rated. It meets major industry safety standards including UL, CSA, IEC, and CCC requirements for commercial and industrial power distribution.
