Eaton / Cutler-Hammer PDG23F0070TFFJ Molded Case Circuit Breaker
- 70A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0070TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0070TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

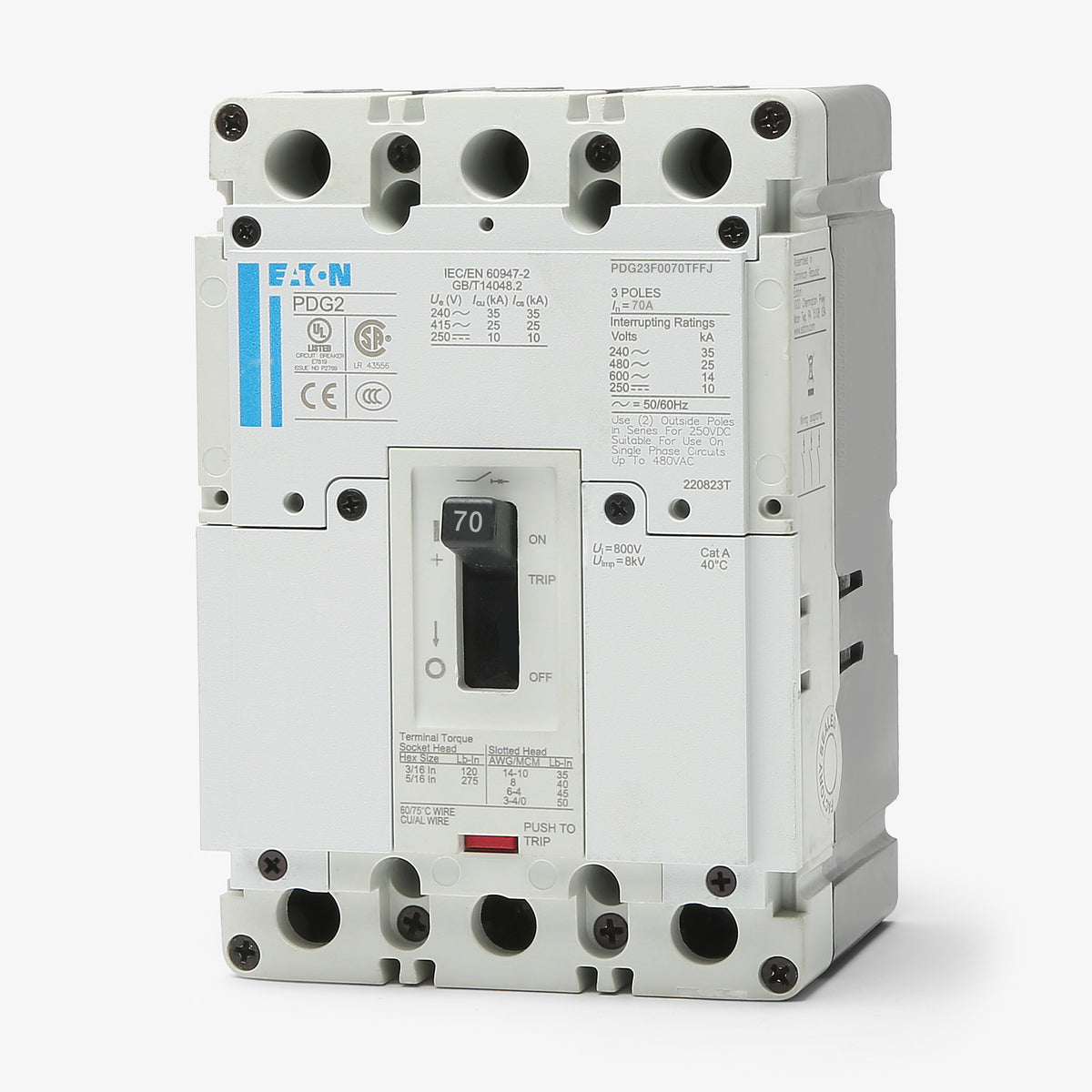

Eaton / Cutler-Hammer PDG23F0070TFFJ - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0070TFFL
70A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23M0070TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, the Eaton PDG23F0070TFFJ is a 70A, 3-pole molded case circuit breaker. It provides reliable long-time and instantaneous (LI) protection. This Frame 2 breaker installs into Eaton Power Defense and Series C F-Frame panelboards. It acts as an exact replacement for discontinued FD3070 and EGE3070FFG models, including line and load lugs. Delivering 35kAIC at 240V, the unit features fixed thermal-magnetic trip units and a current-limiting design.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0070TFFJ |
| Series | PDG2 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Mechanism |
|---|---|

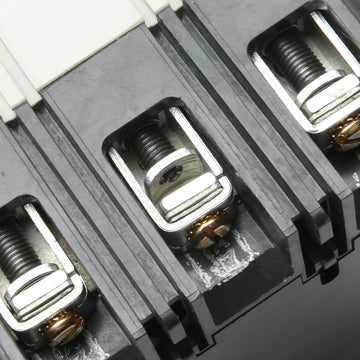

| Accessories | Line and Load Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG23F0070TFFJ be used to replace older Eaton or Cutler-Hammer breakers?
Yes, this Power Defense Frame 2 breaker is a direct replacement for discontinued legacy models such as the FD3070 and EGE3070FFG. It fits into the same Eaton switchboards, enclosures, and Series C F-Frame panelboards.
What does the F in the PDG23F0070TFFJ catalog number indicate?
The F designates the interrupting rating for this Power Defense Frame 2 breaker. It indicates a short-circuit rating of 25kAIC at 480VAC and 35kAIC at 240VAC.
What type of terminals are included with the PDG23F0070TFFJ?
The J at the end of the catalog number indicates that this breaker comes standard with line and load lugs. These feed-thru terminals accept 14 to 1/0 AWG aluminum or copper wire.
Is this breaker compatible with older Series C F-Frame panelboards?
Yes, the Power Defense Frame 2 footprint is backward compatible with legacy Series C F-Frame panelboards, allowing for seamless upgrades without modifying the existing enclosure.
What type of trip unit is installed in the PDG23F0070TFFJ?
This breaker features a fixed thermal and fixed magnetic trip unit, indicated by the TFF in the catalog number. It provides non-adjustable long-time and instantaneous (LI) overcurrent protection.
Does this breaker meet global electrical safety standards?
Yes, the Power Defense global platform is certified for use across multiple international standards, including UL 489, CSA C22.2 No. 5, IEC 60947-2, and CCC.
