Eaton / Cutler-Hammer PDG23F0070TFFL Molded Case Circuit Breaker
- 70A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0070TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0070TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0070TFFL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton/Cutler-HammerPDG23M0070TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23G0070TFFL
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Utilizing fixed thermal and magnetic trip technology, the Eaton PDG23F0070TFFL provides precise LI protection for industrial power distribution. This 70A, 3-pole molded case circuit breaker belongs to the Power Defense family. Designed for seamless integration, this Frame 2 MCCB mounts into Eaton panelboards. It serves as a direct cross-reference for legacy FDB3070 breakers, simplifying facility upgrades. The unit includes load-side terminals only. It features a 35kAIC rating at 240V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Global Ratings, Current Limiting, Molded Case Circuit Breaker |
Product FAQs
6 answersCan the PDG23F0070TFFL replace legacy Cutler-Hammer Series C breakers?
Yes, the Eaton Power Defense Frame 2 is the direct upgrade and replacement for legacy Series C F-Frame breakers, including the FDB3070.
Can this Frame 2 thermal-magnetic breaker be reverse fed?
Yes, Eaton Power Defense Frame 2 thermal-magnetic circuit breakers are suitable for reverse feed applications.
What does the "TFF" in the catalog number PDG23F0070TFFL signify?
The "TFF" designates the trip unit type. It stands for a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection settings.
Does the PDG23F0070TFFL include lugs on both the line and load sides?

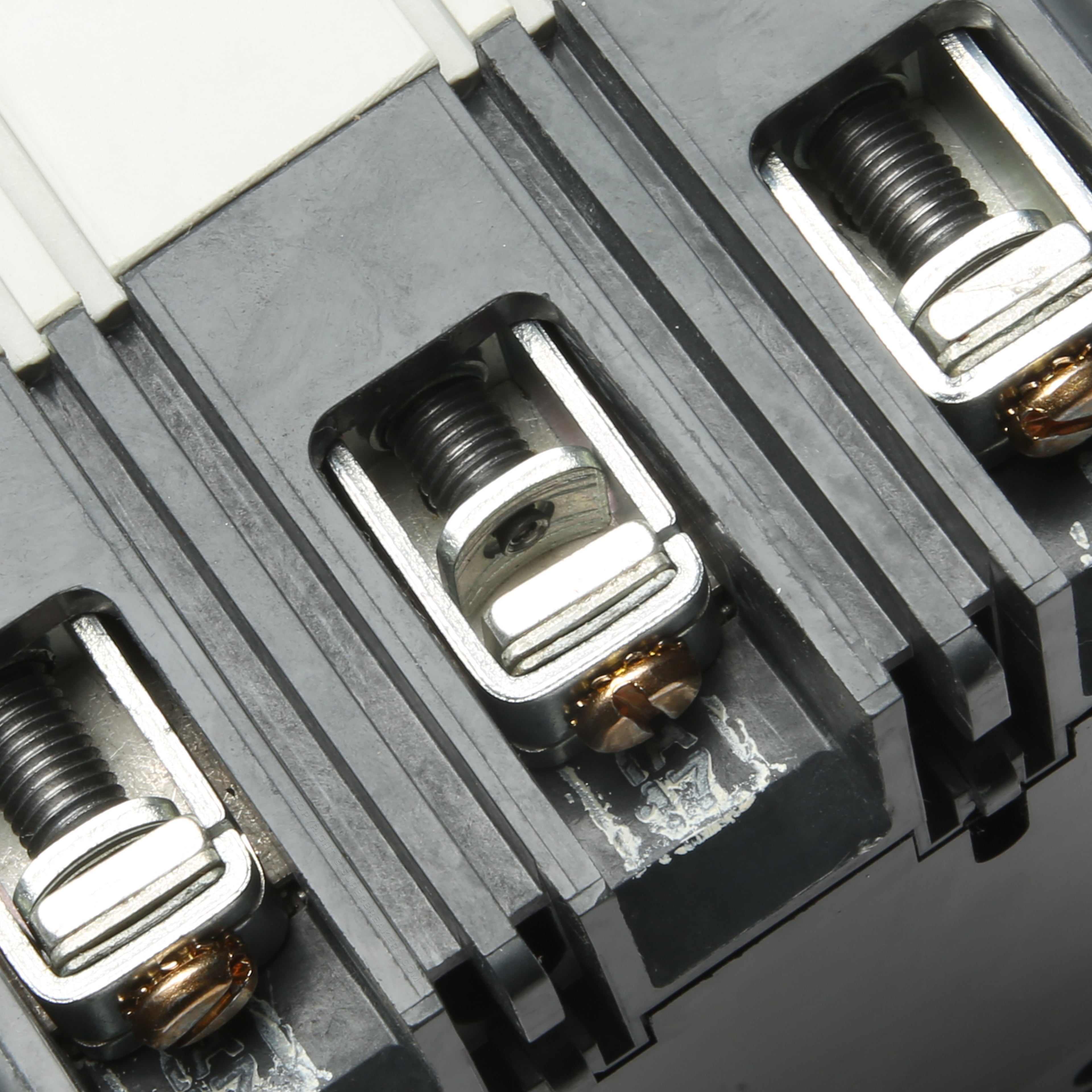

No, this specific configuration includes standard lugs on the load side only. The line side features a bolt-on connection for direct installation onto a panelboard bus.
What wire sizes are supported by the standard lugs on this breaker?
The included load-side lugs accept wire sizes from 14 AWG up to 1/0 AWG, and are rated for both aluminum and copper conductors.
Which panels and enclosures are compatible with the PDG23F0070TFFL?
This Frame 2 molded case circuit breaker is designed for bolt-on installation in Eaton panelboards and Eaton Power Defense enclosures.
