Eaton / Cutler-Hammer PDG23G0030TFFJ Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

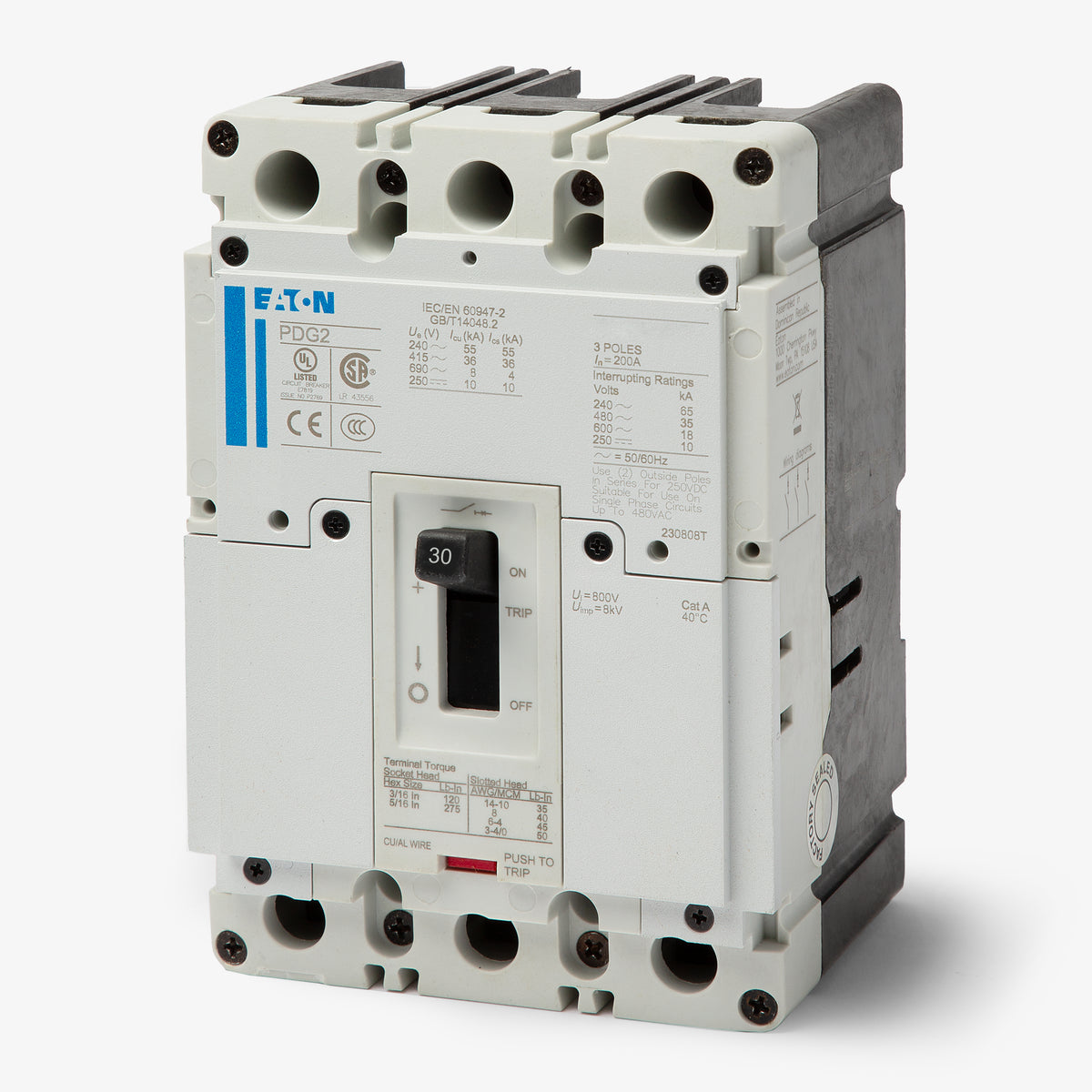

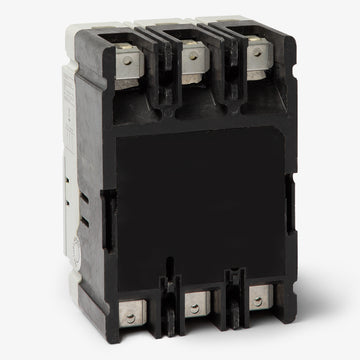

Eaton / Cutler-Hammer PDG23G0030TFFJ - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0030TFFL
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0035TFFL
35A 3 Pole Molded Case Circuit Breaker
Description
Built for robust industrial protection, the Eaton PDG23G0030TFFJ is a 30-amp, three-pole molded case circuit breaker from the Power Defense family. It utilizes a fixed thermal-magnetic trip unit to provide long-time and instantaneous (LI) protection for commercial and marine electrical systems. Designed for panel mount applications, this breaker installs into Eaton Power Defense panelboards, switchboards, and enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0030TFFJ |
| Series | PDG2 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
7 answersWhat equipment is the PDG23G0030TFFJ designed to fit?
This Frame 2 breaker is engineered for installation in Eaton Power Defense panelboards, switchboards, and enclosures.
What does the "G" interrupting rating designator mean for the PDG23G0030TFFJ?
In the Eaton Power Defense nomenclature, the "G" indicates a standard interrupting rating of 35kAIC at 480VAC, 65kAIC at 240VAC, and 18kAIC at 600VAC.
Is the PDG23G0030TFFJ rated for direct current (DC) systems?
Yes, this thermal-magnetic breaker supports DC applications with a rating of 10kAIC at 250VDC.

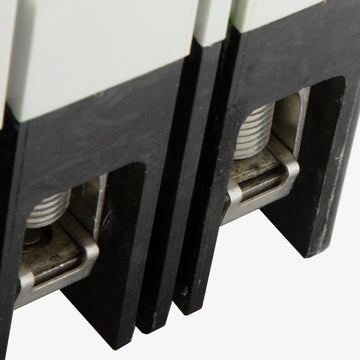

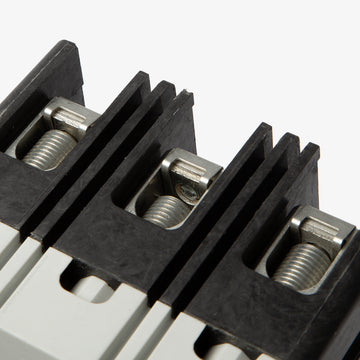

What wire sizes and materials do the standard lugs on the PDG23G0030TFFJ accept?
The factory-installed feed-thru lugs accept 14 AWG to 1/0 AWG wire and are rated for both aluminum (Al) and copper (Cu) conductors.
Can I adjust the trip settings on the PDG23G0030TFFJ?
No. This breaker is equipped with a fixed thermal and fixed magnetic (LI) trip unit, meaning the long-time and instantaneous protection settings are factory-set and non-adjustable.
What frame size is the PDG23G0030TFFJ?
This breaker belongs to the Eaton Power Defense Frame 2 (PDE Frame) family.
What does the "TFFJ" suffix indicate in the PDG23G0030TFFJ catalog number?
It specifies a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings (TFF), along with standard line and load terminals (J).
