Eaton/Cutler-Hammer PDG23G0030TFFL Circuit Breaker
- 30
- 3 Pole
- Panel
Eaton/Cutler-Hammer
PDG23G0030TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0030TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0030TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0030TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | AWG 14 to AWG 1/0, Al/Cu |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting, Common Trip, Trip-Free Mechanism, Reverse Feed |
Quantity
Eaton/Cutler-Hammer PDG23G0030TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | AWG 14 to AWG 1/0, Al/Cu |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting, Common Trip, Trip-Free Mechanism, Reverse Feed |
Similar Items
Eaton / Cutler-HammerPDG23M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0030TFFL
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0035TFFL
35A 3 Pole Molded Case Circuit Breaker
Description

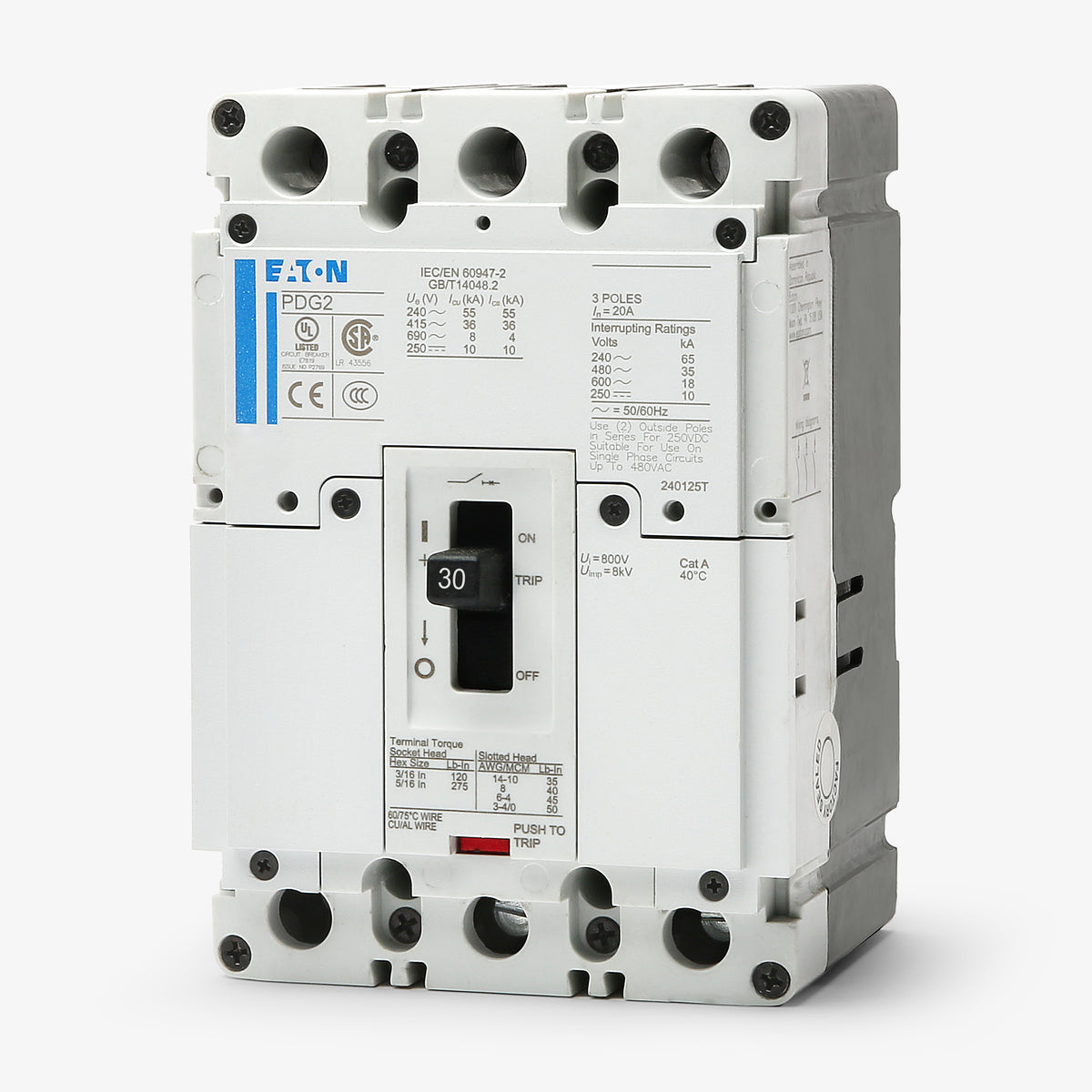

Eaton/Cutler-Hammer PDG23G0030TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0030TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0030TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 30 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | 2 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | AWG 14 to AWG 1/0, Al/Cu |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting, Common Trip, Trip-Free Mechanism, Reverse Feed |
Product FAQs
6 answersWhat equipment is compatible with the PDG23G0030TFFL?
This Frame 2 Power Defense circuit breaker is engineered for use in Eaton Pow-R-Line panelboards, switchboards, and matching motor control centers.
What does the TFFL suffix in the catalog number mean?
The TFFL suffix indicates that the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic protection settings, and that it ships with standard load-side lugs.
Can I use this to replace older Eaton or Cutler-Hammer circuit breakers?
Yes, the Power Defense Frame 2 series serves as the modern replacement for legacy Eaton Series C F-Frame and Series G EG-Frame breakers. Note that retrofitting into older panelboards may require a new Power Defense connector kit.

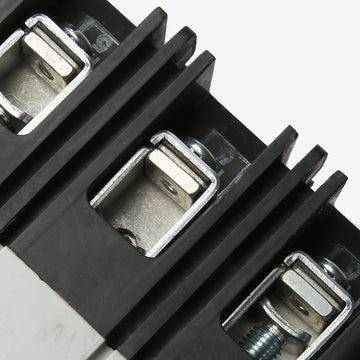

Are line and load lugs included with this breaker?

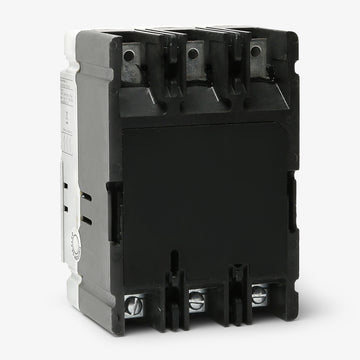

This specific configuration includes standard lugs on the load side only. Because it is a bolt-on breaker, the line side is designed to mount directly to the panelboard bus.
Is this breaker suitable for HVAC equipment protection?
Yes, it is HACR rated, meaning it has been tested and certified to safely handle the unique inrush currents and operational demands of heating, air conditioning, and refrigeration motor circuits.
What global certifications does this breaker carry?
It is a globally rated component that meets UL 489, CSA, IEC 60947-2, and CCC standards, ensuring regulatory compliance for systems built for North American and international markets.
