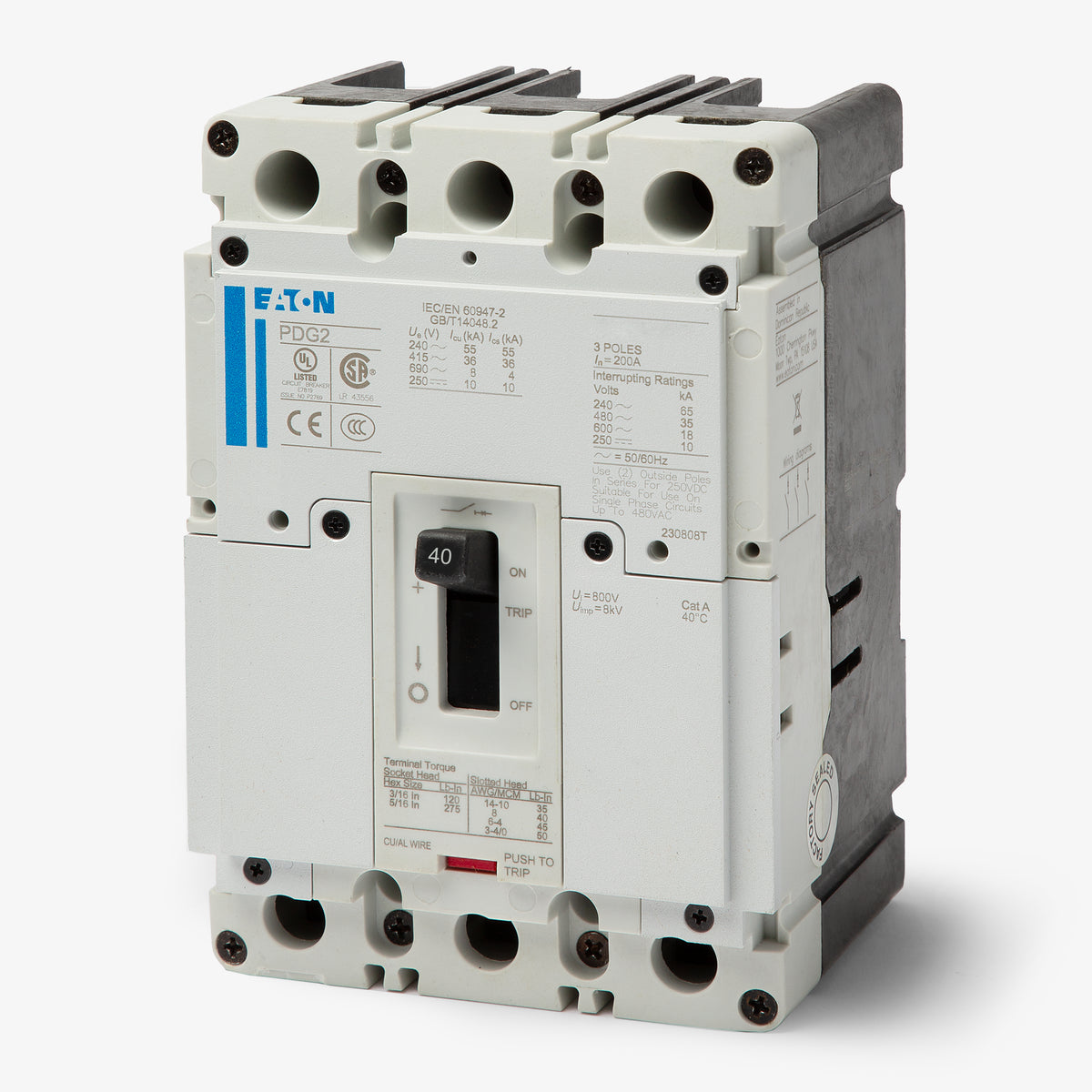

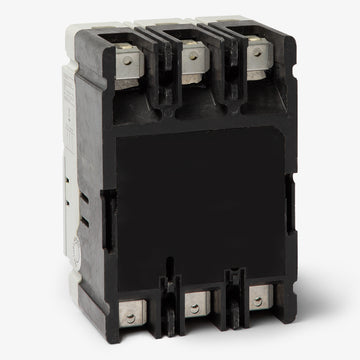

Eaton / Cutler-Hammer PDG23G0040TFFJ Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0040TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0040TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0040TFFJ - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFL
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0045TFFL
45A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust industrial applications, this 40A, 3-pole MCCB belongs to the Eaton Power Defense series. The Frame 2 device provides reliable power distribution. Featuring standard line and load terminals, it mounts into compatible Eaton panelboards. It seamlessly replaces legacy Cutler-Hammer EGE3040FFG and FD3040 breakers. Delivering 35 kAIC at 480VAC, the fixed thermal-magnetic trip unit ensures precise long-time and instantaneous (LI) defense against overloads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0040TFFJ |
| Series | PDG2 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
5 answersWhat does the "G" in the PDG23G0040TFFJ catalog number indicate?
The "G" following the pole count designates the interrupting rating. For this Power Defense Frame 2 breaker, it signifies a 35kAIC rating at 480VAC.
What does "TFF" stand for in the PDG23G0040TFFJ part number?
"TFF" indicates the trip unit configuration. It stands for a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings, providing standard Long-Time and Instantaneous (LI) protection.
What does the "J" at the end of the PDG23G0040TFFJ catalog number mean?

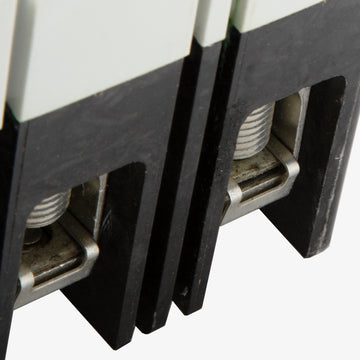

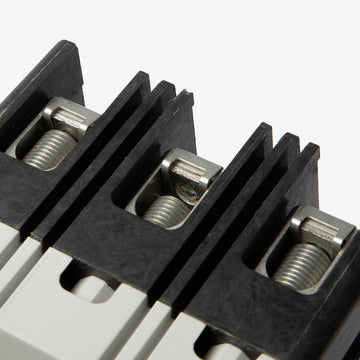

The "J" indicates that the breaker is supplied with standard line and load box terminals (lugs) that accept 14 AWG to 1/0 AWG wire.
Can the Eaton PDG23G0040TFFJ be reverse fed?
Yes, standard Eaton Power Defense Frame 1 and Frame 2 molded case circuit breakers can be reverse fed.
What is the replacement terminal kit for the PDG23G0040TFFJ?
The standard replacement box terminal kit for this breaker is Eaton catalog number PDG2X3T100, which includes three steel lugs rated for 14 AWG to 1/0 AWG wire.
