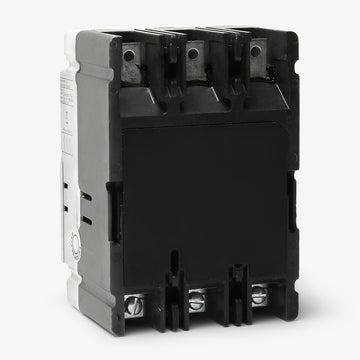

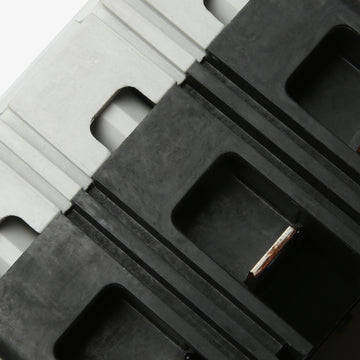

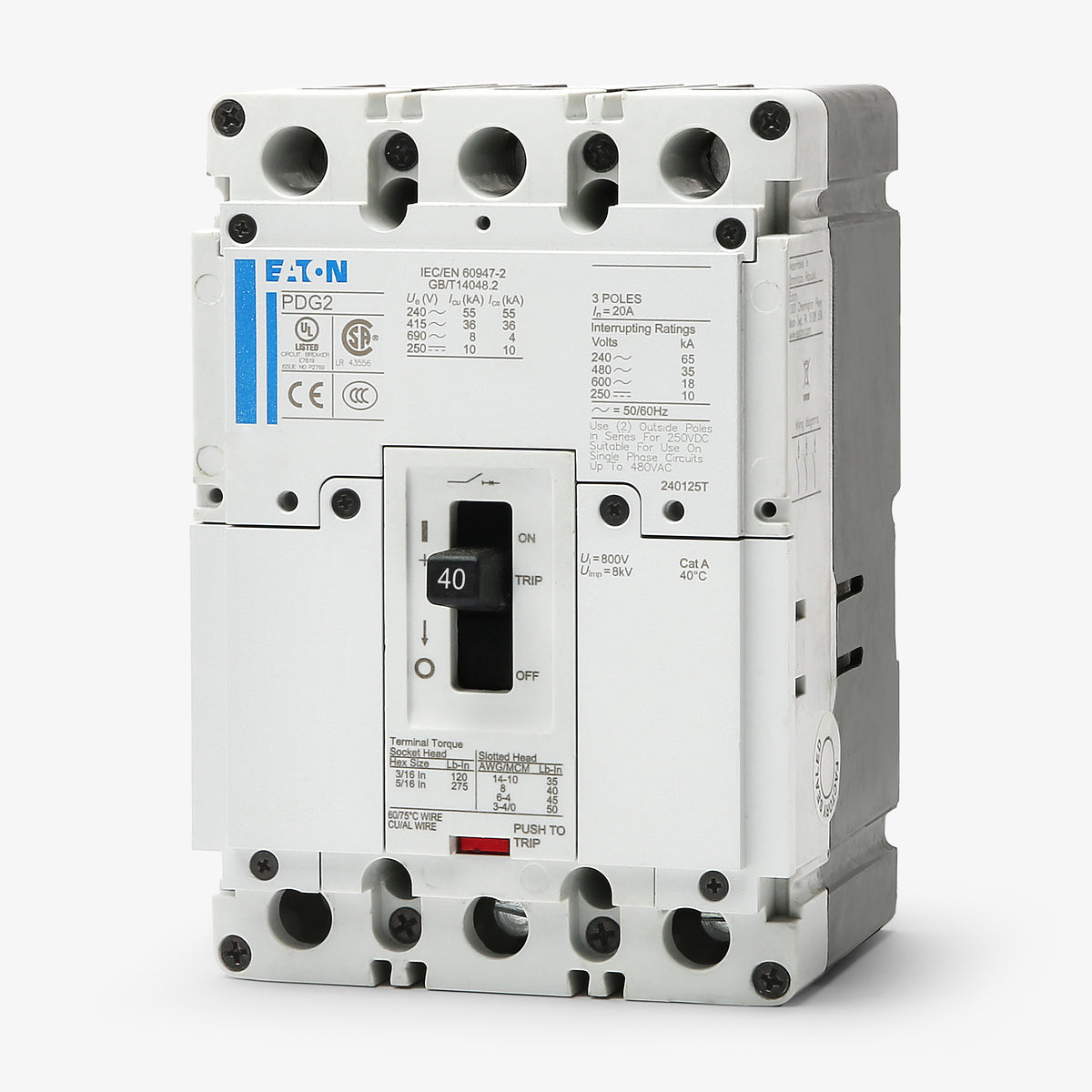

Eaton/Cutler-Hammer PDG23G0040TFFL Circuit Breaker
- 40
- 3 Pole
- Panel Mount
Eaton/Cutler-Hammer
PDG23G0040TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0040TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0040TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0040TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23G0040TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFL
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0045TFFL
45A 3 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer PDG23G0040TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0040TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0040TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
5 answersWhat do the TFF and L suffixes stand for in the PDG23G0040TFFL part number?

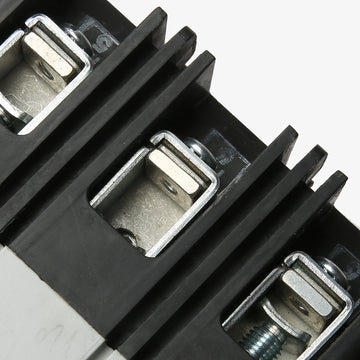

The TFF suffix designates a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. The L suffix signifies that the breaker is equipped with standard lugs on the load side only, as the line side is designed to bolt directly to the panel bus.
Are Power Defense Frame 2 breakers compatible with older Cutler-Hammer Series C installations?
Yes. Eaton designed the Power Defense Frame 2 series to share the exact same physical footprint as legacy Series C F-Frame circuit breakers. They serve as direct drop-in replacements for older Pow-R-Line panelboards and enclosures.
How does the bolt-on connection work for this specific Eaton breaker?
The PDG23G0040TFFL is configured for direct panelboard mounting. It includes a standard lug terminal on the load side for wire connections, while the line side lacks a lug and bolts directly to the internal busbars of Eaton panelboards and switchboards.
Is the trip unit on the PDG23G0040TFFL field adjustable for selective coordination?
No. This model features a fixed thermal and fixed magnetic trip unit. If your power distribution system requires field-adjustable coordination, you will need to select a breaker with an adjustable thermal-magnetic or electronic trip unit.
Does this breaker provide Ground Fault or Zone Selective Interlocking (ZSI) protection?
No. The standard thermal-magnetic trip unit on this breaker only provides basic long-time and instantaneous (LI) overcurrent protection. Advanced safety features like ground fault protection and ZSI require upgrading to a Power Defense model equipped with an electronic PXR trip unit.
