Eaton/Cutler-Hammer PDG23G0080TFFL Circuit Breaker
Eaton/Cutler-Hammer
PDG23G0080TFFL
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23G0080TFFL
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23G0080TFFL 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23G0080TFFL 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23G0080TFFL 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0080TFFL
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Description

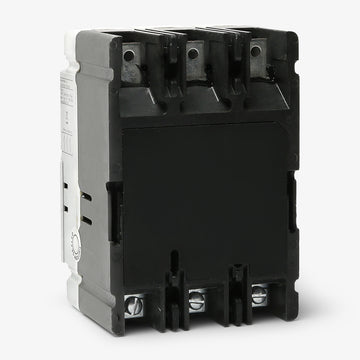

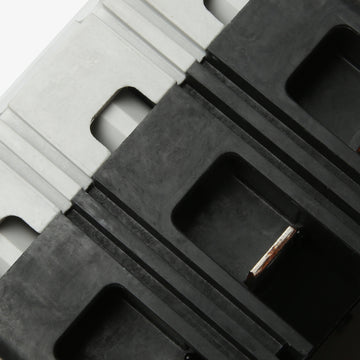

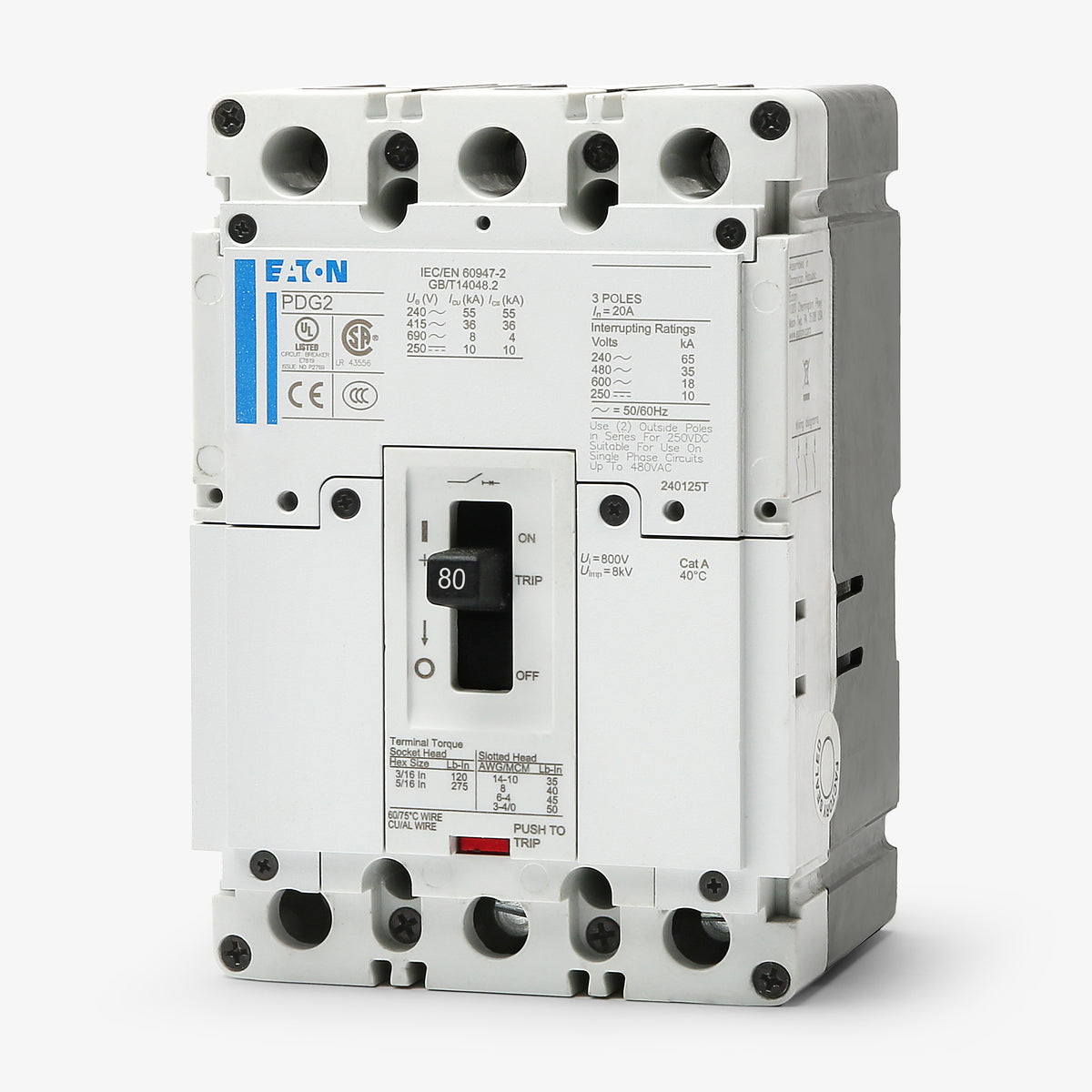

Eaton/Cutler-Hammer PDG23G0080TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0080TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0080TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 80 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals Load Only |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
7 answersCan the PDG23G0080TFFL replace older Series C F-Frame breakers?
Yes, the Eaton Power Defense Frame 2 (PDG2) series is the designated replacement for legacy Cutler-Hammer and Eaton Series C F-Frame circuit breakers, including FD, HFD, and FDC models.
What does the TFFL suffix mean in the PDG23G0080TFFL catalog number?
The TFFL suffix indicates the breaker has a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings, and it is supplied with standard lug terminals on the load side only.

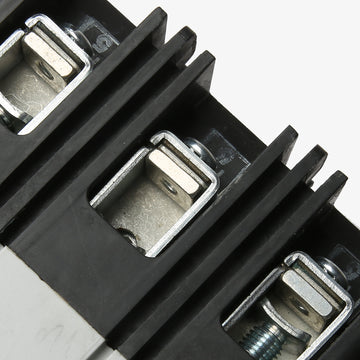

What wire size and material do the load lugs on the PDG23G0080TFFL accept?
The included load-side standard lugs are rated for 14 AWG to 1/0 AWG aluminum or copper conductors.
What equipment is the PDG23G0080TFFL designed to be installed in?
This panel-mount molded case circuit breaker is engineered for installation in Eaton Power Defense panelboards, switchboards, and enclosures.
What does the second G indicate in the PDG23G0080TFFL catalog number?
In the Eaton Power Defense nomenclature, the second G designates the interrupting rating. For this Frame 2 breaker, it signifies a 35kAIC rating at 480VAC.
Does the PDG23G0080TFFL feature the Arcflash Reduction Maintenance System (ARMS)?
No. This breaker is equipped with a basic fixed thermal-magnetic trip unit. The ARMS feature is only available on Power Defense breakers equipped with advanced Power Xpert Release (PXR) electronic trip units.
Can the PDG23G0080TFFL be used in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for use in DC applications up to 250VDC, where it provides a 10kAIC interrupting rating.
