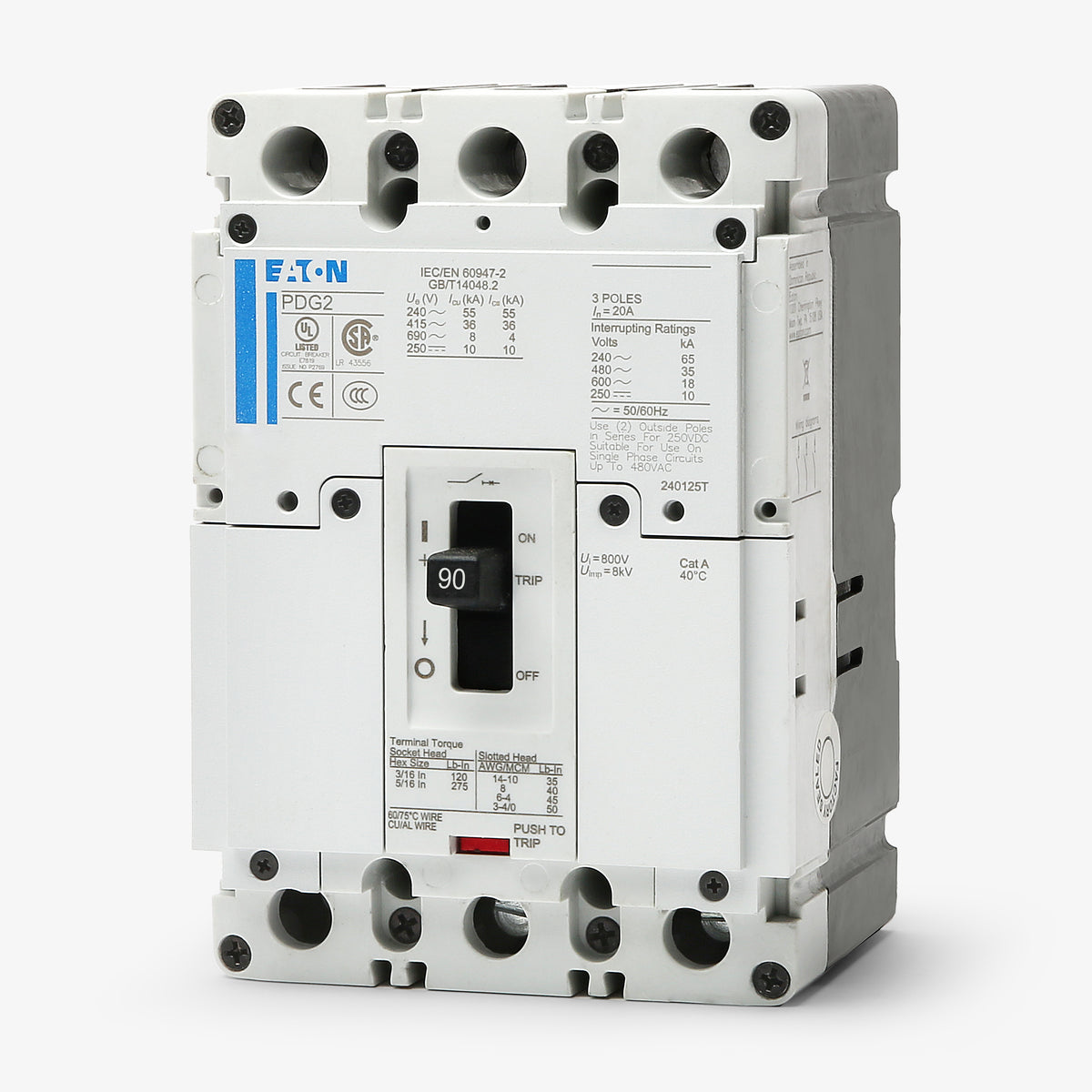

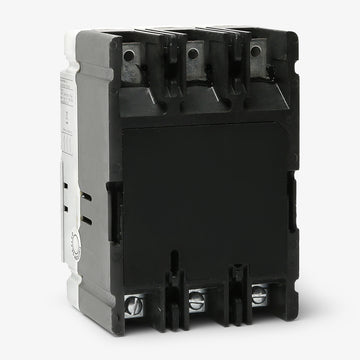

Eaton/Cutler-Hammer PDG23G0090TFFL 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23G0090TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0090TFFL has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications

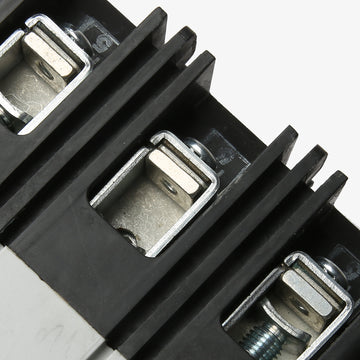

| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | PDG23G0090TFFL |
| Series | Power Defense |
| Amperage | 90 A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Handle Lock, Terminal Shields, Multi-Wire Connector |
|---|---|
| Standards | RoHS |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersDoes the Power Defense PDG23G0090TFFL replace older Eaton Series C breakers?
Yes, Eaton Power Defense Frame 2 breakers are the direct modern replacement for legacy Series C F-Frame breakers, such as the discontinued FD3090. Updated Eaton mounting hardware is required when upgrading to the Power Defense platform.
Can the PDG23G0090TFFL circuit breaker be reverse fed?
Yes, standard Eaton Power Defense Frame 2 molded case circuit breakers can be reverse fed. Note that this applies to standard thermal-magnetic breakers, whereas motor circuit protectors in this frame size cannot be reverse fed.
How does the PDG23G0090TFFL catalog number break down?
PDG2 indicates a Power Defense Frame 2 breaker. The 3 is for 3 poles, and G denotes a 35kAIC rating at 480VAC. The 0090 specifies 90 amps, TFF stands for a fixed thermal and fixed magnetic trip unit, and L indicates standard load-side lugs.
Are the trip settings adjustable on the PDG23G0090TFFL?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
Is this 3-pole breaker suitable for DC applications?
Yes, the PDG23G0090TFFL is rated for use in DC systems up to 250VDC, providing an interrupting rating of 10kAIC.
What equipment is the PDG23G0090TFFL designed to be installed in?
This Frame 2 breaker is designed for panel mount, bolt-on installation in Eaton Power Defense panelboards, switchboards, and compatible enclosures.
