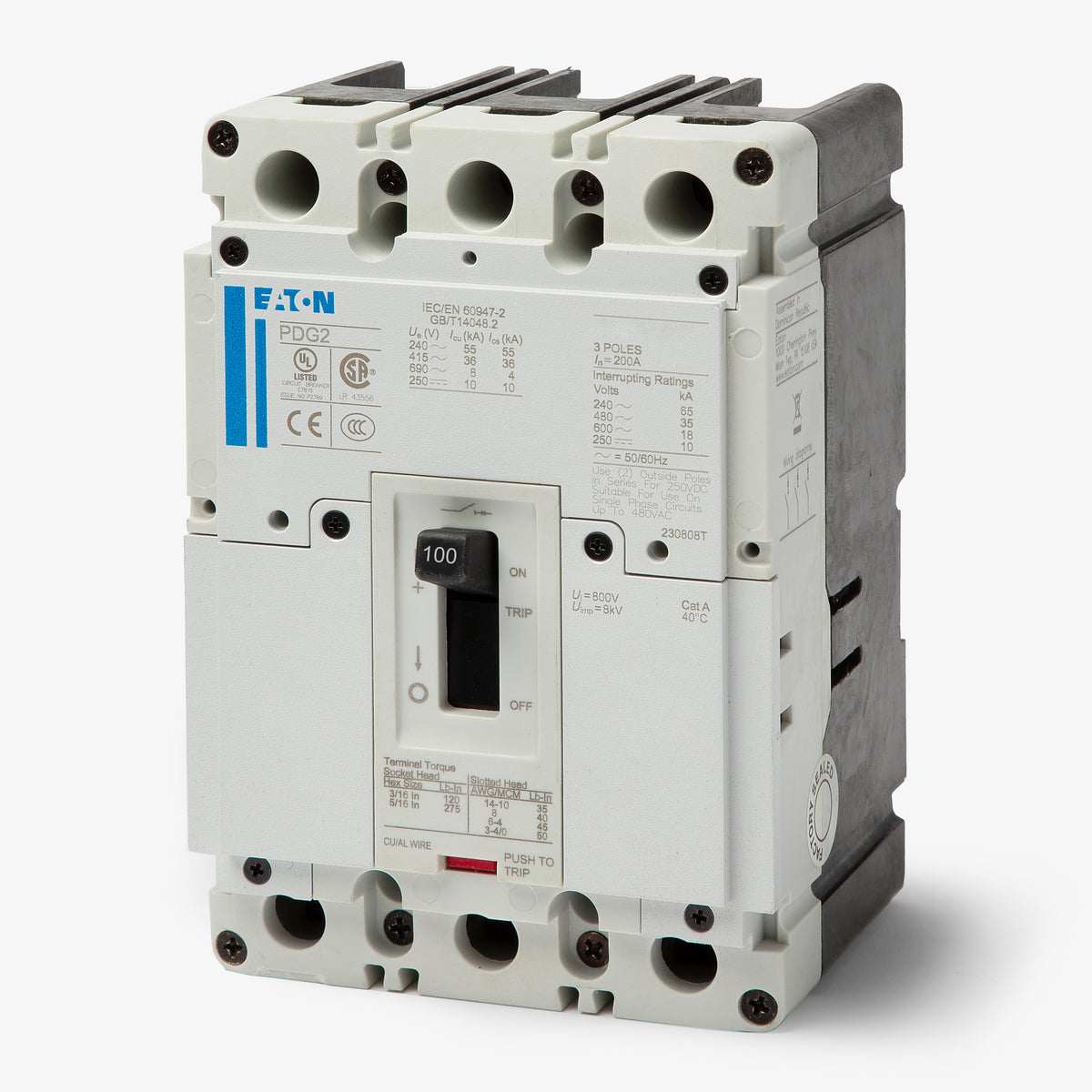

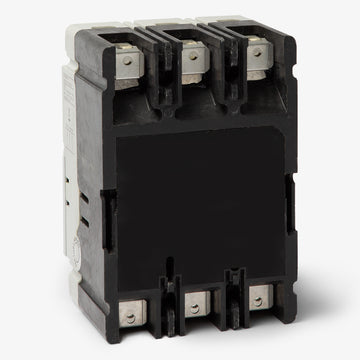

Eaton / Cutler-Hammer PDG23G0100TFFJ Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0100TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0100TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0100TFFL
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0110TFFL
110A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the Power Defense Frame 2 series, this 3-pole, 100A MCCB provides reliable protection for 600VAC and 250VDC systems. It is built for demanding commercial and industrial applications. This panel-mount breaker installs into Eaton Power Defense and Series C panelboards. It serves as a direct drop-in replacement for discontinued FD3100 breakers, simplifying facility upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23G0100TFFJ |
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Eaton Series C Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Handle Mechanism, Padlock Attachment, Terminal Shields, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
7 answersCan the Eaton PDG23G0100TFFJ replace older Series C circuit breakers?
Yes, the Power Defense Frame 2 (PDG2) series is the direct replacement for legacy Eaton Series C F-Frame breakers. When replacing a 100A, 3-pole breaker like the FD3100, you will need to use updated Eaton mounting hardware designed for the Power Defense platform.
What does the G in the PDG23G0100TFFJ catalog number signify?
In the Eaton Power Defense nomenclature, the G indicates the interrupting rating. For this Frame 2 breaker, it signifies a capacity of 35kA at 480VAC and 65kA at 240VAC.
What does TFF mean in the PDG23G0100TFFJ catalog number?
The TFF designates the trip unit type. It stands for a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings, meaning the trip thresholds are factory set and non-adjustable.
What does the J at the end of the PDG23G0100TFFJ catalog number indicate for installation?

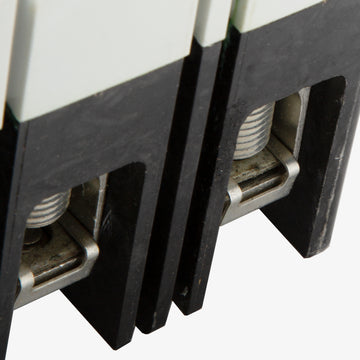

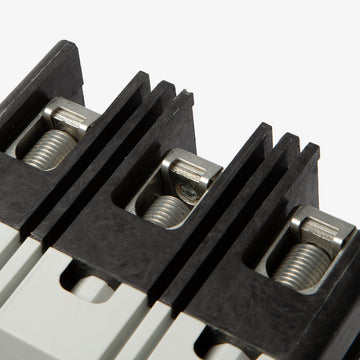

The J signifies that the breaker comes equipped with standard line and load terminals (lugs). These standard lugs accommodate wire sizes ranging from 14 AWG to 1/0 AWG.
How does the LI trip function operate on the PDG23G0100TFFJ?
The LI designation stands for Long-Time and Instantaneous trip functions. The fixed thermal element provides the long-time delay to protect against sustained overloads, while the fixed magnetic element provides instantaneous tripping to safely clear short circuits.
Are the terminal lugs on the Power Defense Frame 2 interchangeable with older Series C breakers?
Yes, Eaton PD2 (Frame 2) breakers can use the same terminal lugs as the legacy Series C F-Frame breakers, and vice versa. This allows for flexibility if you have existing F-Frame lugs you wish to reuse.
Which panelboards are compatible with the PDG23G0100TFFJ breaker?
This breaker is designed for use in Eaton Power Defense Panelboards as well as legacy Eaton Series C Panelboards, provided the correct mounting hardware is utilized.
