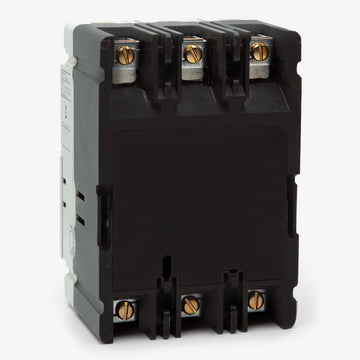

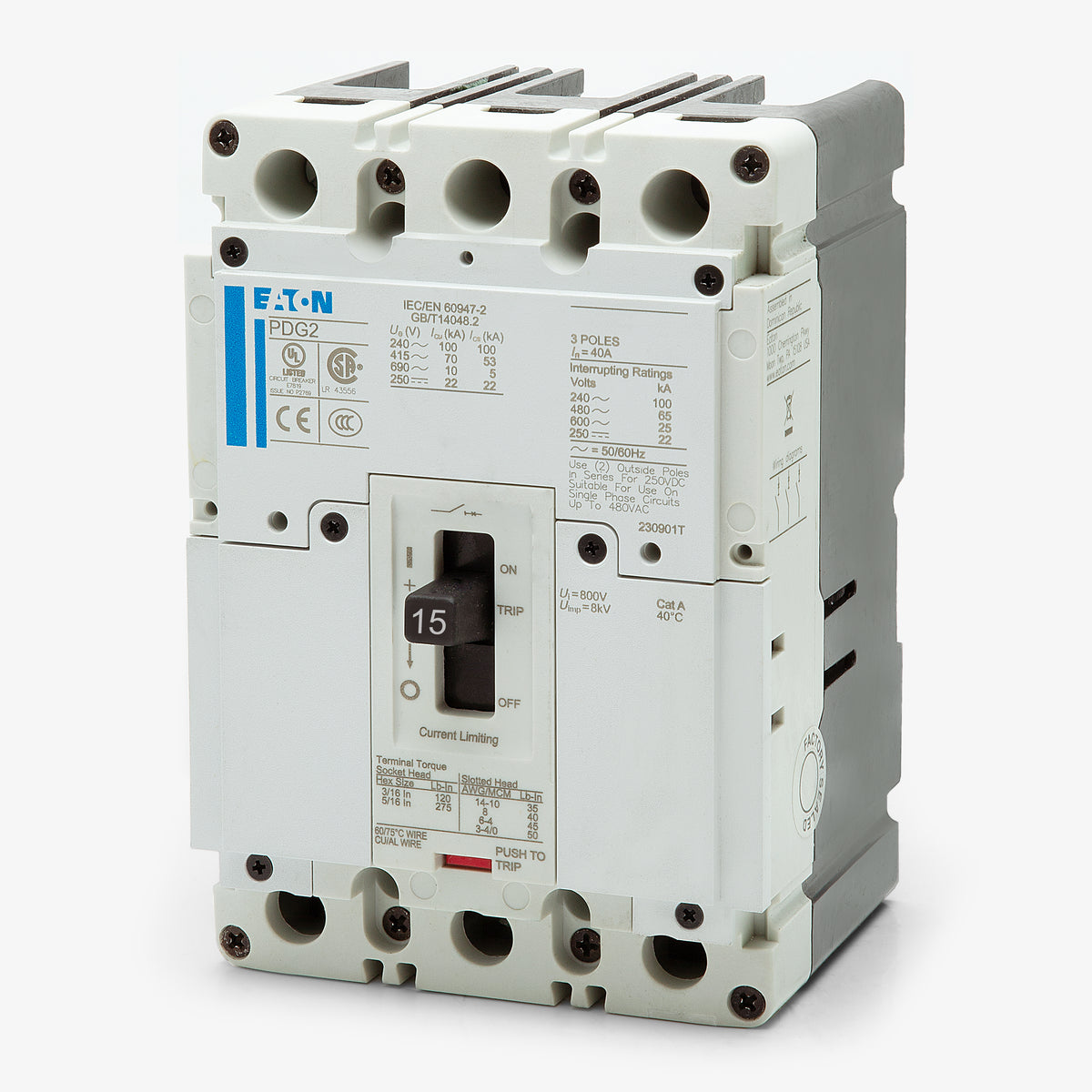

Eaton / Cutler-Hammer PDG23M0015TFFL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23M0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23M0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23M0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer PDG23M0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Quantity
Eaton / Cutler-Hammer PDG23M0015TFFL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0020TFFL
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0025TFFL
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Eaton PDG23M0015TFFL is a 3-pole, 15A molded case circuit breaker from the Power Defense Frame 2 series. It provides reliable overcurrent protection for demanding electrical systems. This panel-mount MCCB installs into Eaton Power Defense enclosures and panelboards. It serves as a drop-in replacement for legacy HFD3015 and EGH3015 breakers, simplifying facility upgrades. Rated 65kAIC at 480V, it features a fixed thermal-magnetic trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant |
Product FAQs
6 answersCan the PDG23M0015TFFL replace older legacy Cutler-Hammer breakers?
Yes. This Power Defense Frame 2 circuit breaker serves as a direct drop-in replacement for legacy F-frame and EG-frame models, specifically the HFD3015 and EGH3015. This simplifies facility upgrades without requiring structural panel modifications.
Are the thermal and magnetic trip settings adjustable?
No. The TFFL suffix indicates that this breaker utilizes a fixed thermal and fixed magnetic trip unit. The overload and instantaneous short-circuit protection thresholds are strictly factory set and cannot be modified in the field.
Does this breaker support direct current applications?
Yes. In addition to standard AC systems, it is fully rated for DC power. It provides a 22kA interrupting capacity at 250VDC, making it versatile for both commercial AC power and dedicated DC control circuits.
What does the L in the catalog suffix mean for installation?

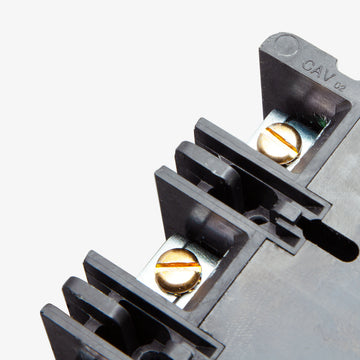

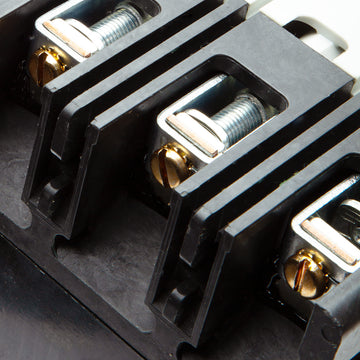

The L at the end of the TFFL catalog number signifies that the breaker comes equipped with standard load-side terminal lugs. These lugs directly accept wire gauges ranging from 14 AWG to 1/0 AWG.
What equipment is this breaker designed to mount in?
The PDG23M0015TFFL features a complete bolt-on frame specifically engineered for panel-mount installations within Eaton Power Defense enclosures and panelboards.
What safety and environmental certifications does this model carry?
This globally rated Power Defense breaker is UL 489 certified for molded case circuit breakers and meets RoHS environmental compliance standards.
