Eaton/Cutler-Hammer PDG23M0225TFFJ Circuit Breaker
- 225
- 3 Pole
- Panel
Eaton/Cutler-Hammer
PDG23M0225TFFJ
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
PDG23M0225TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer PDG23M0225TFFJ 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer PDG23M0225TFFJ 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | PDG23M0225TFFJ |
| Series | Power Defense |
| Amperage | 225 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
Quantity
Eaton/Cutler-Hammer PDG23M0225TFFJ 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | Power Defense |
| Amperage | 225 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
Similar Items
Eaton / Cutler-HammerPDG23P0225TFFL
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0200TFFL
200A 3 Pole Molded Case Circuit Breaker
Description

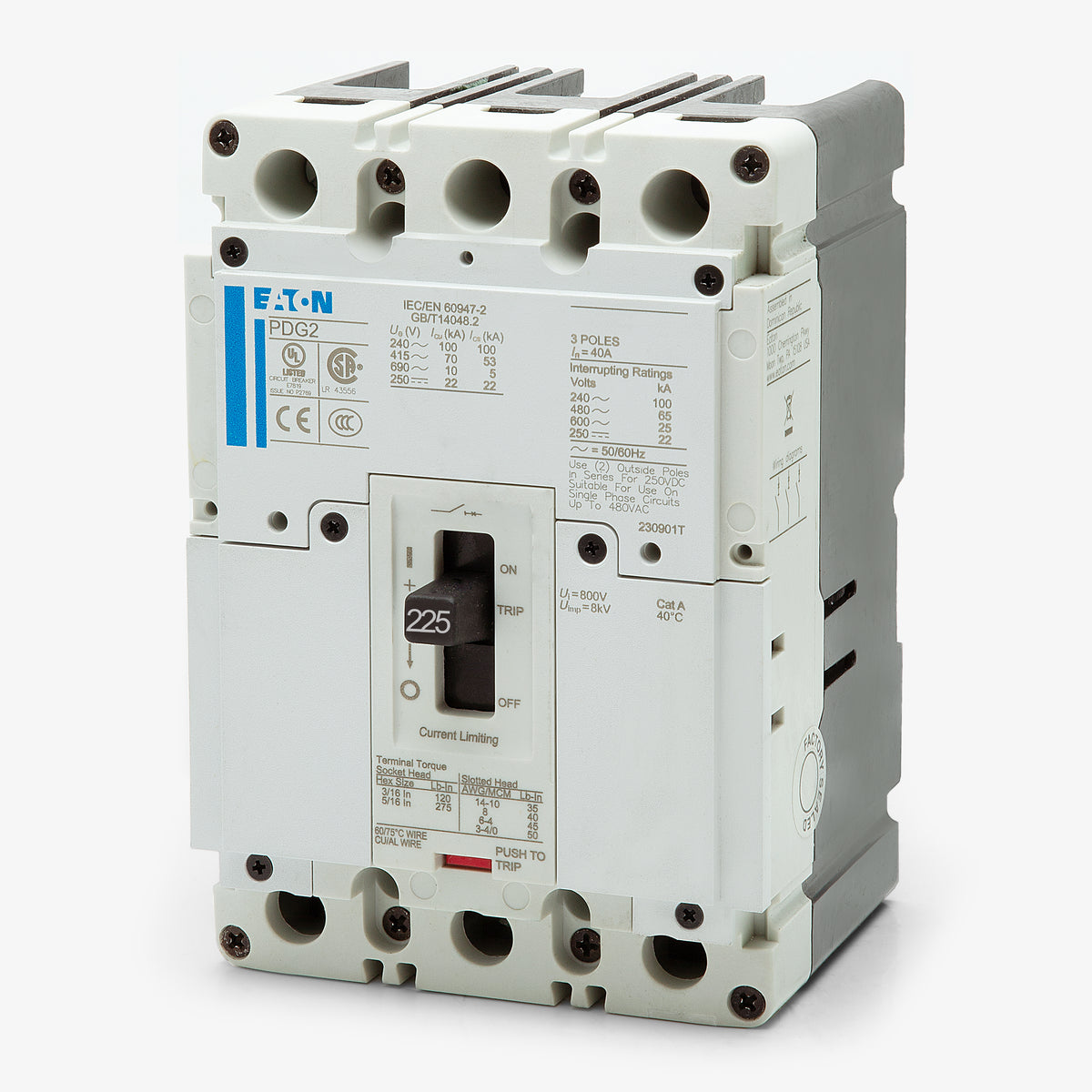

Eaton/Cutler-Hammer PDG23M0225TFFJ 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer PDG23M0225TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0225TFFJ has a panel mounting type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | PDG23M0225TFFJ |
| Series | Power Defense |
| Amperage | 225 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields |
|---|---|
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, RoHS Compliant |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the PDG23M0225TFFJ?
This breaker is designed for installation in Eaton Power Defense panelboards, switchboards, and enclosures.
Can the Eaton PDG23M0225TFFJ be reverse fed?
Yes, standard Power Defense Frame 2 molded case circuit breakers can be reverse fed.
What does the PDG23M0225TFFJ catalog number indicate?
"PDG" stands for Power Defense Global, "2" indicates a Frame 2 size, and "3" means it is a 3-pole breaker. "M" denotes the 65kA at 480VAC interrupting rating, "0225" is the 225A rating, "TFF" specifies a fixed thermal and fixed magnetic trip unit, and "J" indicates standard lug terminals.
Is the PDG23M0225TFFJ suitable for DC power systems?
Yes, this thermal-magnetic breaker is rated for use in DC applications up to 250VDC, with an interrupting capacity of 22kAIC.
Does the PDG23M0225TFFJ provide ground fault protection?
No, this breaker features a standard LI (Long-Time and Instantaneous) thermal-magnetic trip unit. It does not include equipment ground fault protection.
Are the trip settings adjustable on the PDG23M0225TFFJ?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the trip settings cannot be adjusted in the field.
