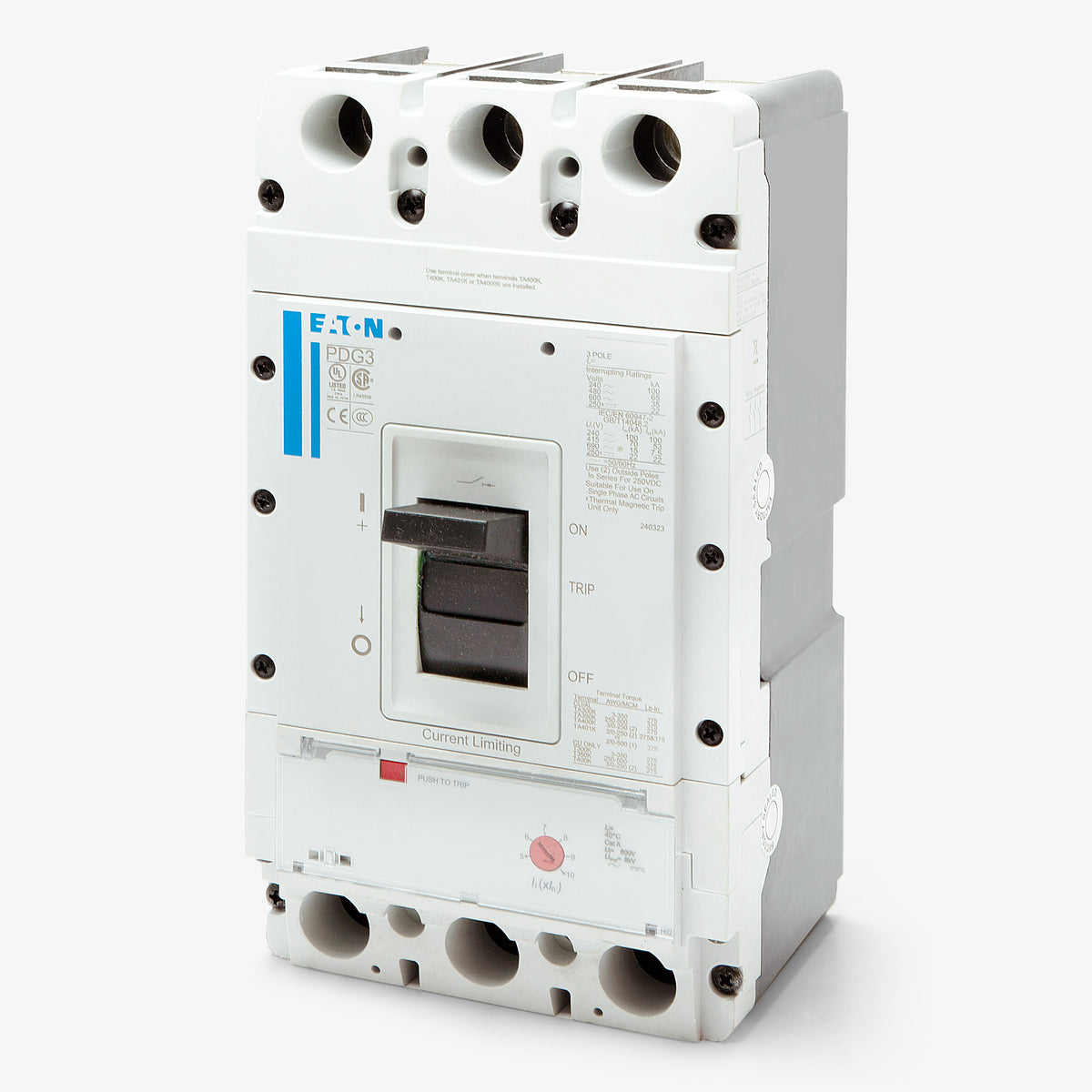

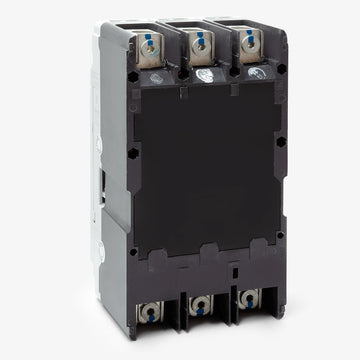

Eaton / Cutler-Hammer PDG33F0175TFAJ Molded Case Circuit Breaker
- 175A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG33F0175TFAJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG33F0175TFAJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG33F0175TFAJ - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG33M0175TFAJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33F0200TFAJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33G0200TFAJ
200A 3 Pole Molded Case Circuit Breaker
Description
Belonging to the globally rated Power Defense series, the PDG33F0175TFAJ is a 175A, 3-pole molded case circuit breaker built for industrial power distribution. It delivers reliable thermal-magnetic protection with long-time and instantaneous (LI) functions. This Frame 3 breaker installs into compatible Pow-R-Line panelboards using standard lugs. It serves as a functional replacement for the discontinued JGE3175.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG33F0175TFAJ |
| Series | PDG3 |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 3 Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, UL, RoHS |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards are compatible with the Eaton PDG33F0175TFAJ?
This Frame 3 breaker is designed for installation in Eaton Power Defense Frame 3 panelboards and Eaton Pow-R-Line panelboards.
What wire sizes and conductor materials are accepted by the standard lugs?

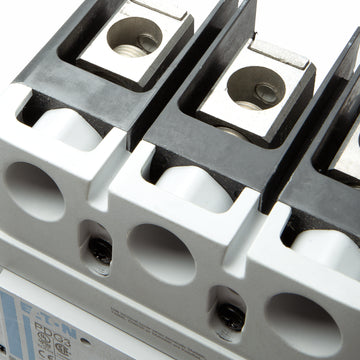

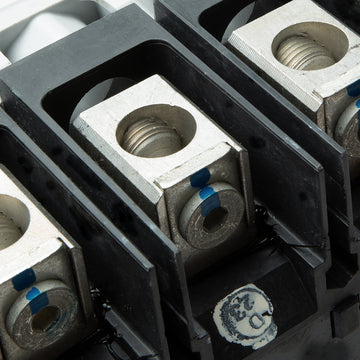

The factory-installed feed-thru lugs accept wire sizes ranging from 3 AWG to 350 kcmil and are rated for both aluminum and copper conductors.
What does the LI trip function indicate on this thermal-magnetic breaker?
The LI designation signifies that the trip unit provides Long-Time protection for standard overloads and Instantaneous protection for short circuits.
Are the trip settings adjustable on the PDG33F0175TFAJ?
Yes, this breaker features a fixed thermal element for overload protection and an adjustable magnetic element, allowing you to fine-tune the short-circuit response.
Can this Power Defense breaker replace older legacy models?
Yes, the PDG33F0175TFAJ serves as a functional replacement for discontinued legacy breakers with matching specifications, such as the Eaton Series G JGE3175. Note that updated mounting hardware may be required when retrofitting into older equipment.
What safety verification is required before installing this breaker?
Always de-energize the panelboard or switchgear before beginning installation. Use a properly rated voltage sensing device to confirm that all power is completely disconnected to prevent electrical shock and arc flash hazards.
