Eaton / Cutler-Hammer PDG33G0150TFAJ Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG33G0150TFAJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG33G0150TFAJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

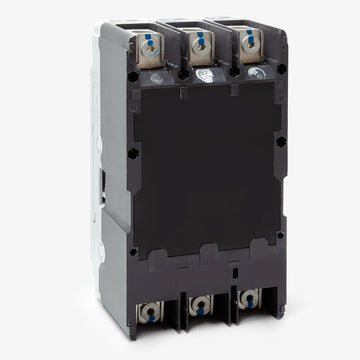

Eaton / Cutler-Hammer PDG33G0150TFAJ - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG33M0175TFAJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33G0200TFAJ
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33M0200TFAJ
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Eaton PDG33G0150TFAJ is a 3-pole, 150A molded case circuit breaker from the Power Defense family. It provides robust long-time and instantaneous (LI) protection. This panel-mount unit installs into Eaton Frame 3 panelboards and enclosures. It serves as a functional replacement for legacy JGS3150FAG models, offering updated performance in a Frame 3 footprint. Rated 35kAIC at 480VAC, it features a fixed thermal and adjustable magnetic trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG3 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 3 Panelboards, Enclosures |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism, Motor Operator |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG3X3TA300) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, UL, RoHS |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
8 answersWhat panelboards are compatible with the PDG33G0150TFAJ?
This breaker is designed specifically for Eaton Power Defense Frame 3 panelboards and compatible standalone enclosures.

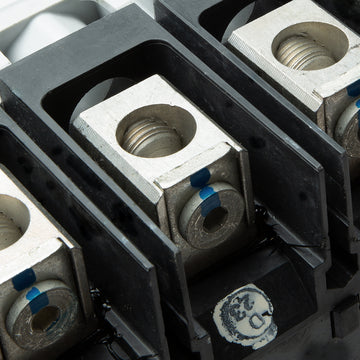

What wire sizes do the factory-installed lugs accept?
The standard feed-thru lugs on this breaker accept 3 AWG to 350 kcmil aluminum or copper conductors.
What is the catalog number for the replacement lug kit?
The standard 3-pole replacement lug kit for this Frame 3 breaker is Eaton part number PDG3X3TA300.
How does the trip unit operate on the PDG33G0150TFAJ?
It utilizes a thermal-magnetic trip unit featuring a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection.
Can this breaker be used in DC applications?
Yes, it carries a DC rating of 250VDC with a 10kA interrupting capacity, making it suitable for specific direct current applications alongside its standard AC ratings.
What is the interrupting capacity of this breaker at 240VAC?
While it is rated for 35kAIC at 480VAC, the interrupting capacity increases to 65kAIC when applied at 240VAC.
Are the line and load terminals included with this breaker?
Yes, this is a complete breaker that includes standard line and load side lugs factory installed for a feed-thru connection.
What global safety standards does this Power Defense breaker meet?
As a globally rated breaker, it is certified to UL 489, CSA, IEC 60947-2, and CCC standards, ensuring compliance across multiple regions.
