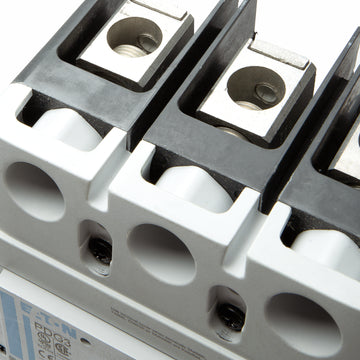

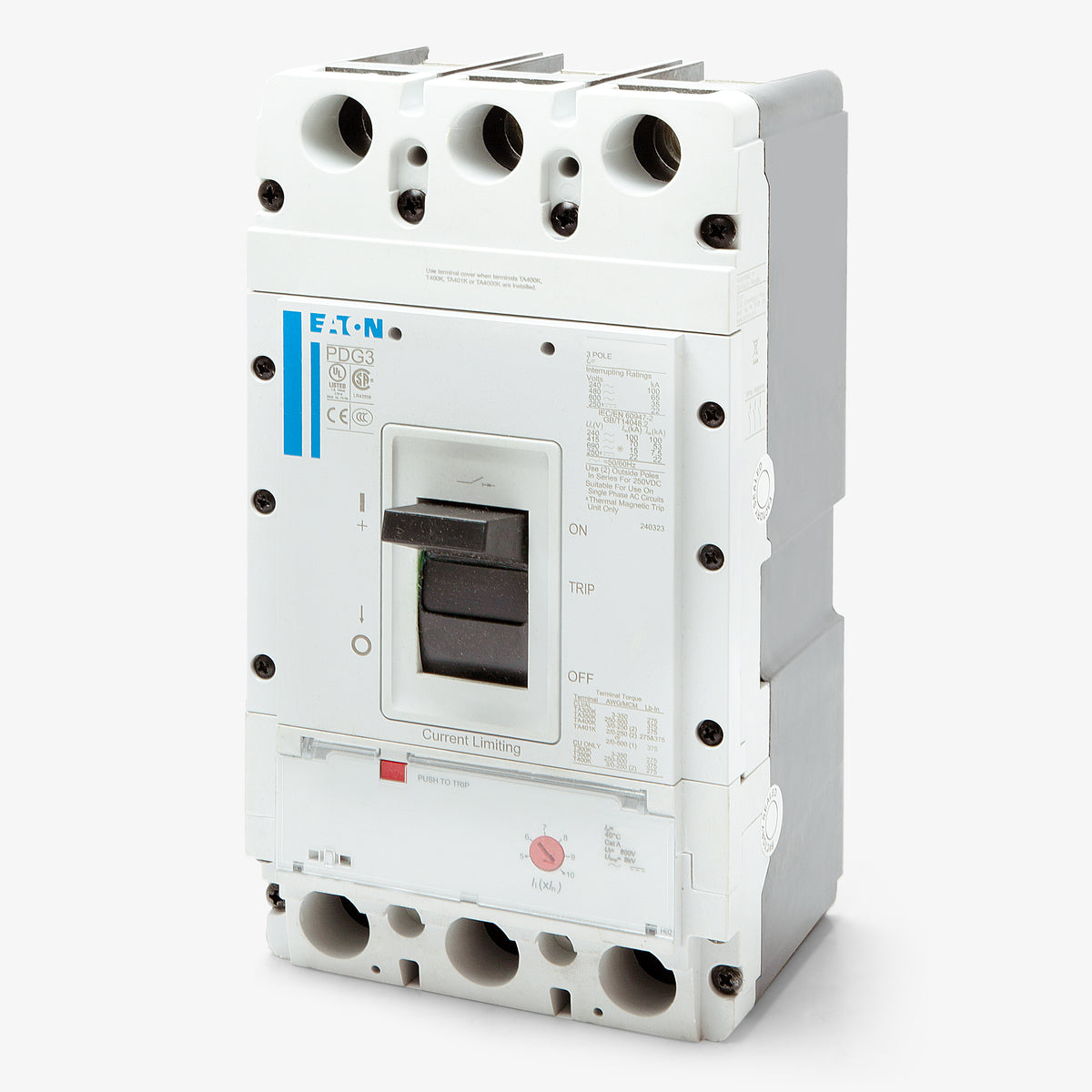

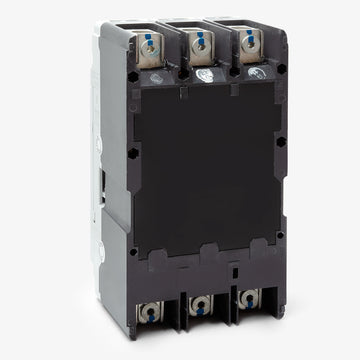

Eaton / Cutler-Hammer PDG33M0200TFAJ Molded Case Circuit Breaker
- 200A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG33M0200TFAJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG33M0200TFAJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG33M0200TFAJ - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG33M0175TFAJ
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33M0250TFAJ
250A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33M0300TFAJ
300A 3 Pole Molded Case Circuit Breaker
Description
Engineered for global compliance, this 200A Frame 3 molded case circuit breaker provides reliable power distribution. It integrates seamlessly into Eaton Power Defense panelboards and switchboards, replacing discontinued HLD3200 and LGH3200 units. The PDG33M0200TFAJ offers a high 65kAIC interrupt capacity at 480VAC and features a thermal-magnetic trip unit with adjustable magnetic protection. It is HACR rated and comes equipped with standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG33M0200TFAJ |
| Series | PDG3 |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (PDG3X3TA300) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Globally Rated |
Product FAQs
7 answersWhich legacy Eaton or Cutler-Hammer breakers does the PDG33M0200TFAJ replace?
This 200A Power Defense breaker serves as a modern replacement for discontinued legacy units with matching specifications, including the HLD3200 and LGH3200.
What equipment is the PDG33M0200TFAJ designed to be installed in?
This Frame 3 breaker integrates directly into Eaton Power Defense panelboards, switchboards, and motor control centers.
What are the wire size requirements for the standard lugs on this breaker?

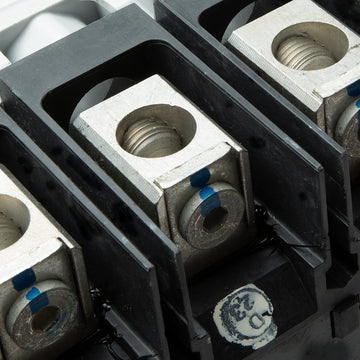

The factory-installed line and load lugs accommodate 3 AWG to 350 kcmil aluminum or copper (Al/Cu) conductors.
How is the thermal-magnetic trip unit configured on the PDG33M0200TFAJ?
It utilizes a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection, allowing you to fine-tune the trip response to your specific load.
What interrupting capacity does the M designation in the part number represent?
The M indicates the interrupting rating tier for this Power Defense frame, providing 65kAIC at 480VAC and up to 100kAIC at 240VAC.
What frame group does the PDG33M0200TFAJ belong to?
It is part of the Eaton Power Defense Frame 3 family, a globally rated platform designed for advanced power distribution in commercial and industrial applications.
Can this breaker be used in DC applications?
Yes, the PDG33M0200TFAJ is rated for use in DC systems, providing an interrupting capacity of 22kAIC at 250VDC.
