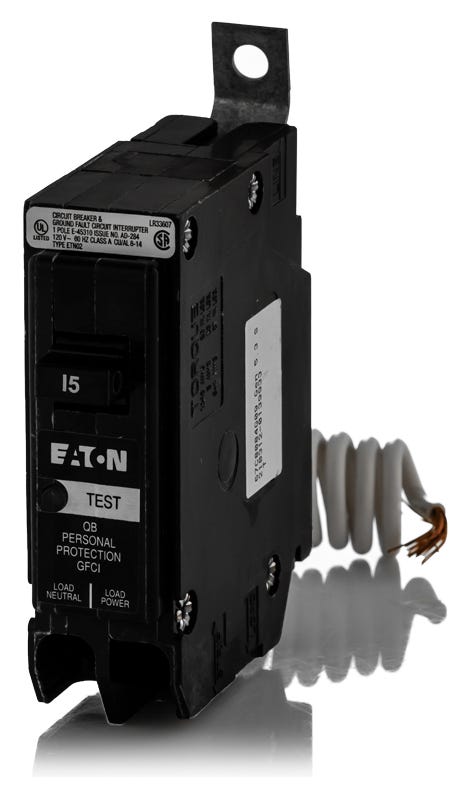

Eaton / Cutler-Hammer QB1015GF GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QB1015GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QB1015GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QB1015GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items

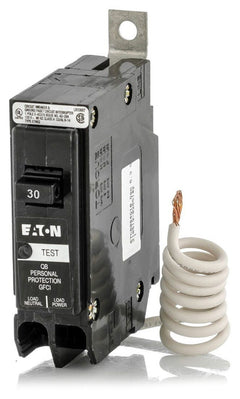

30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT1015
15A GFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QB1015GF delivers 5mA ground-fault personnel protection for commercial and industrial applications. This 15-amp, single-pole GFCI breaker operates at 120/240VAC and includes a pigtail neutral connection. Featuring a secure bolt-on mounting style, it installs into Eaton Pow-R-Line panelboards. This model serves as a replacement for the legacy QBGF1015 breaker. With a 10 kAIC rating, it includes self-test functionality and a non-interchangeable trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QB1015GF |
| Series | QB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the QB1015GF circuit breaker?
This bolt-on breaker is designed specifically for installation in Eaton Pow-R-Line panelboards.
What is the direct replacement for the obsolete QBGF1015?
The QB1015GF is the current replacement model for the legacy Cutler-Hammer QBGF1015 ground fault circuit breaker.
How is the neutral connection configured on this GFCI breaker?
The QB1015GF utilizes a pigtail neutral wire that must be connected to the neutral bus bar in the panelboard to enable the ground fault sensing circuitry.
What is the ground fault trip sensitivity for this breaker?
It features a 5mA trip sensitivity for personnel protection and includes a built-in self-test function to verify the integrity of the ground fault circuitry.
What wire gauge range is supported by the terminals on the QB1015GF?
The box lugs accommodate wire sizes from 14 AWG to 4 AWG. Ensure proper torque specifications are followed during installation.
What type of trip unit is equipped on the QB1015GF?
It features a fixed, non-interchangeable thermal-magnetic trip unit that provides long-time overload, instantaneous short-circuit, and ground-fault (LIG) protection.
