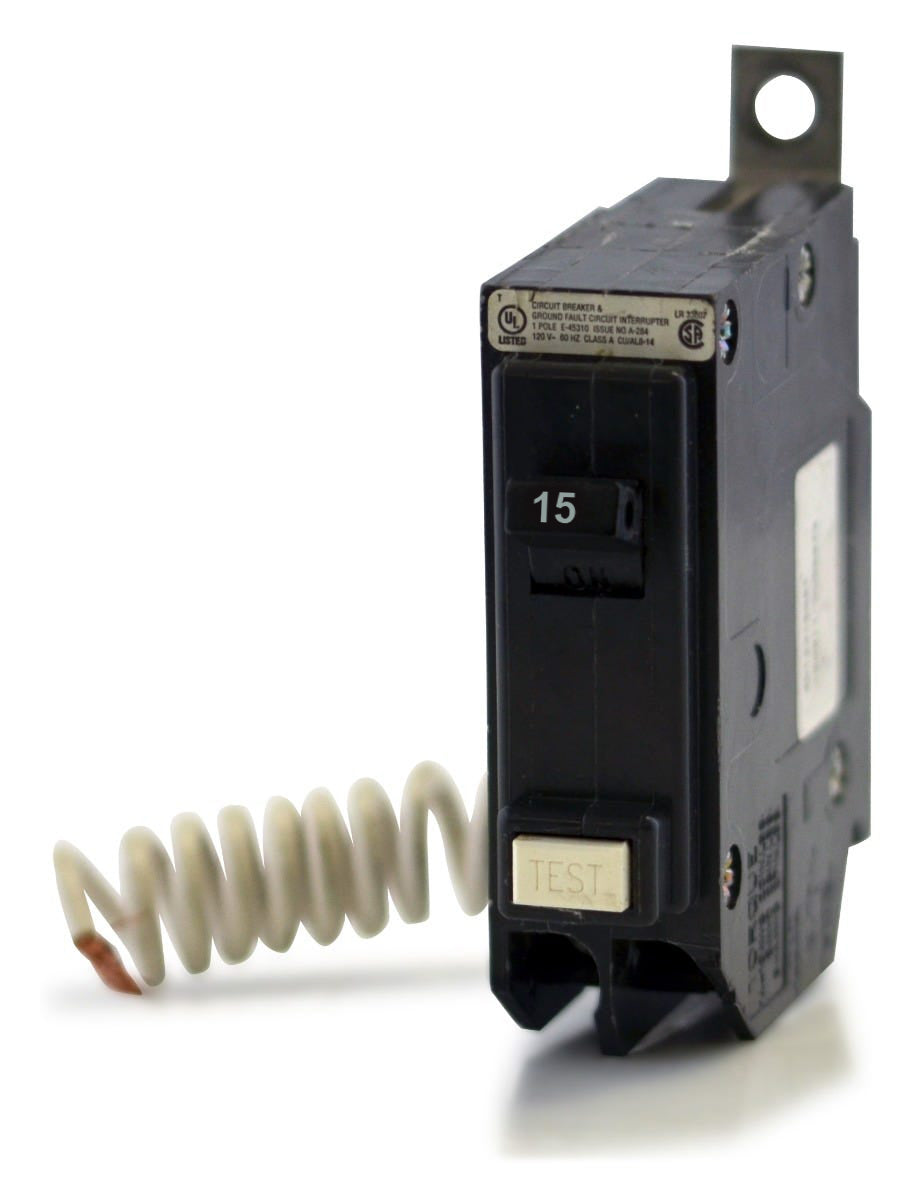

Eaton / Cutler-Hammer QBHGFT1015 GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGFT1015
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGFT1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHGFT1015 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGFT1025
25A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT1030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT2015
15A GFCI Miniature Circuit Breaker
Description
Engineered with automatic self-test capabilities, this 15A single-pole breaker routinely verifies its own ground fault circuitry to ensure continuous protection. The unit features a pigtail neutral and mounts securely into Eaton Pow-R-Line panelboards via bolt-on terminals. With a 22kA interrupting capacity, it handles commercial fault currents while meeting stringent NEC standards for personnel safety in areas prone to moisture. Cross-references to the QBH1015GF replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGFT1015 |
| Series | QBHGFT |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QBHGFT |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Self-Test |
Product FAQs
6 answersWhich panelboards are compatible with the QBHGFT1015 circuit breaker?
This bolt-on Quicklag breaker is designed for use in Eaton Pow-R-Line panelboards that accept QBHGF-type miniature breakers.
What is the ground fault trip sensitivity of the QBHGFT1015?
This breaker features a 5 mA trip sensitivity, classifying it as a Class A GFCI device intended for personnel protection against electrical shock.
How does the QBHGFT1015 connect to the panel neutral?
It utilizes a pigtail neutral wire that must be connected directly to the panel neutral bus bar to ensure proper ground fault detection and operation.
Can the QBHGFT1015 replace older Cutler-Hammer GFCI breakers?
Yes, it is the direct replacement for the older Cutler-Hammer QBH1015GF catalog number.
Does this breaker require a specific mounting method?
Yes, the QBHGFT1015 is a bolt-on breaker. It fastens directly to the panelboard bus with a screw, providing a secure connection for commercial and industrial applications.
What type of trip mechanism does this breaker use?
It uses a non-interchangeable thermal-magnetic trip unit combined with ground fault sensing circuitry to protect against overloads, short circuits, and ground faults.
