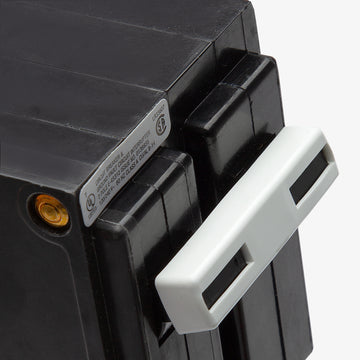

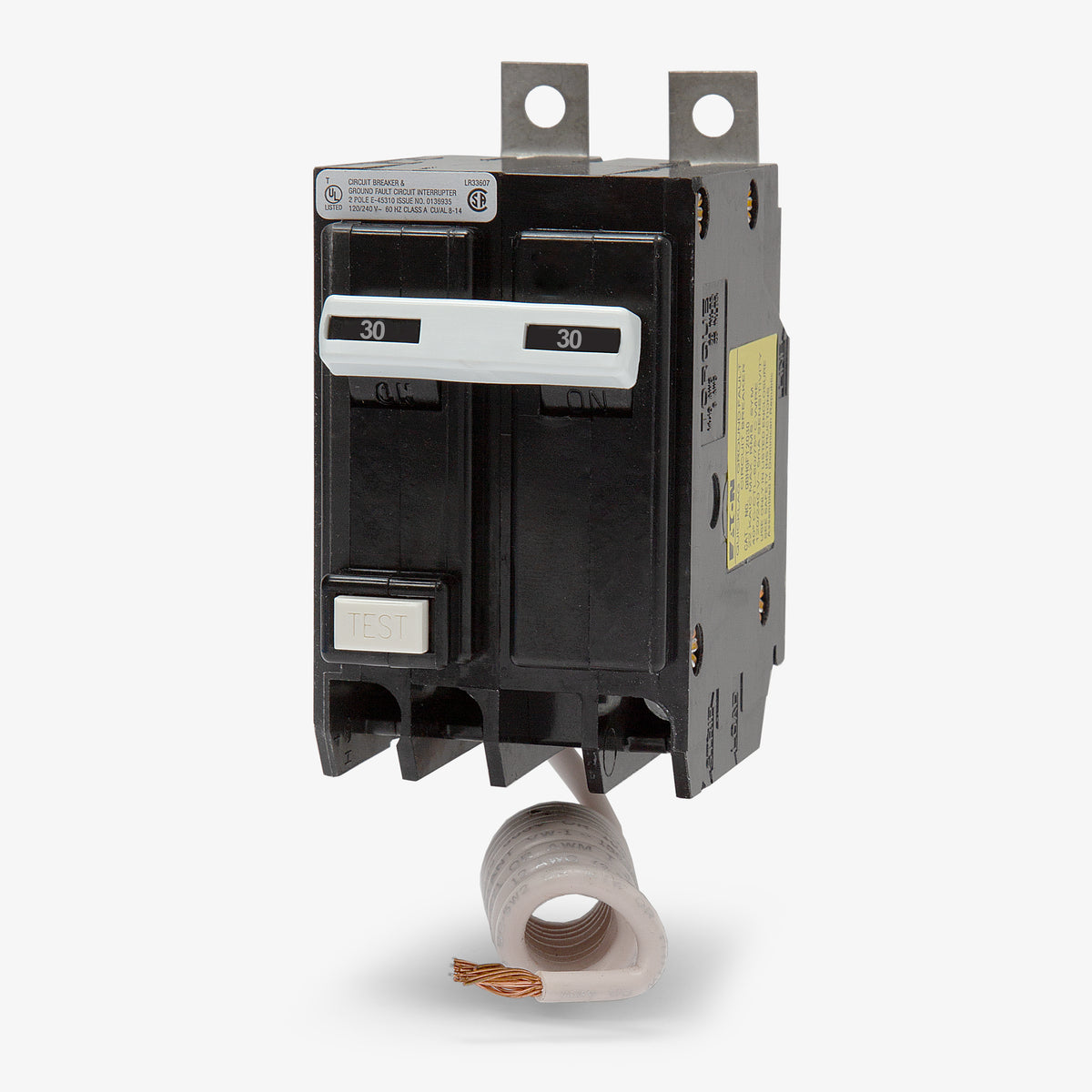

Eaton / Cutler-Hammer QBHGFT2030 GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGFT2030
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGFT2030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHGFT2030 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGFT2015
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT1030
30A GFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, this 30-amp ground fault interrupter is built for commercial and industrial power distribution. The bolt-on mounting style integrates seamlessly into Eaton Pow-R-Line panelboards, providing a robust connection. While this specific catalog number has been replaced by the QBH2030GF, it still delivers a 22kAIC rating at 120/240V and features self-testing capabilities to maintain strict NEC safety standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGFT2030 |
| Series | QBHGFT |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Self-Test, Common Trip |
Product FAQs
6 answersWhich panelboards accept the QBHGFT2030 breaker?
It mounts directly into Eaton Pow-R-Line panelboards designed to accommodate Quicklag bolt-on miniature circuit breakers.
What level of ground fault sensitivity does the QBHGFT2030 provide?
This breaker features a 5mA trip sensitivity, classifying it as a Class A Ground Fault Circuit Interrupter (GFCI) intended strictly for personnel safety.
What is the difference between the QBHGFT2030 and the QBGF2030?
The primary difference is the short-circuit interrupting rating. The QBHGFT2030 offers a 22kAIC rating, whereas the QBGF2030 is rated for a lower 10kAIC maximum. Both are 30A, 2-pole bolt-on GFCI breakers.
Has the QBHGFT2030 been replaced by a newer Eaton catalog number?
Yes. Eaton has updated their catalog system, and the QBHGFT2030 is directly replaced by the QBH2030GF. The updated part number maintains the exact same bolt-on mounting, 22kAIC rating, and Class A GFCI protection.
How is the neutral connection wired on this GFCI breaker?

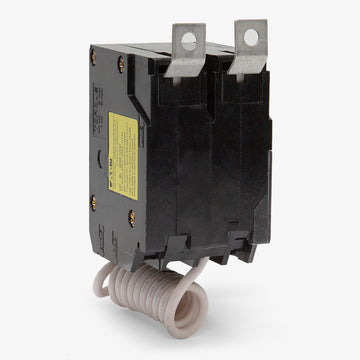

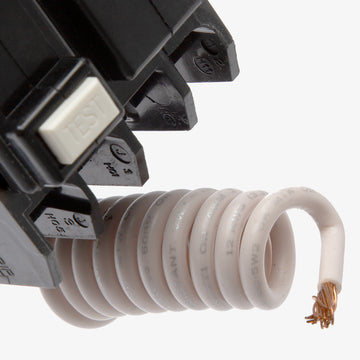

It utilizes a pigtail neutral design. The attached white coiled wire must be routed and secured directly to the panelboard neutral bar to ensure proper ground fault monitoring and trip operation.
Can the QBHGFT2030 be used for equipment ground fault protection?
No, this model is specifically calibrated with a 5mA trip threshold for Class A personnel safety. If your installation requires a 30mA threshold for equipment protection, you must use a breaker from the Eaton QBHGFEP series instead.
