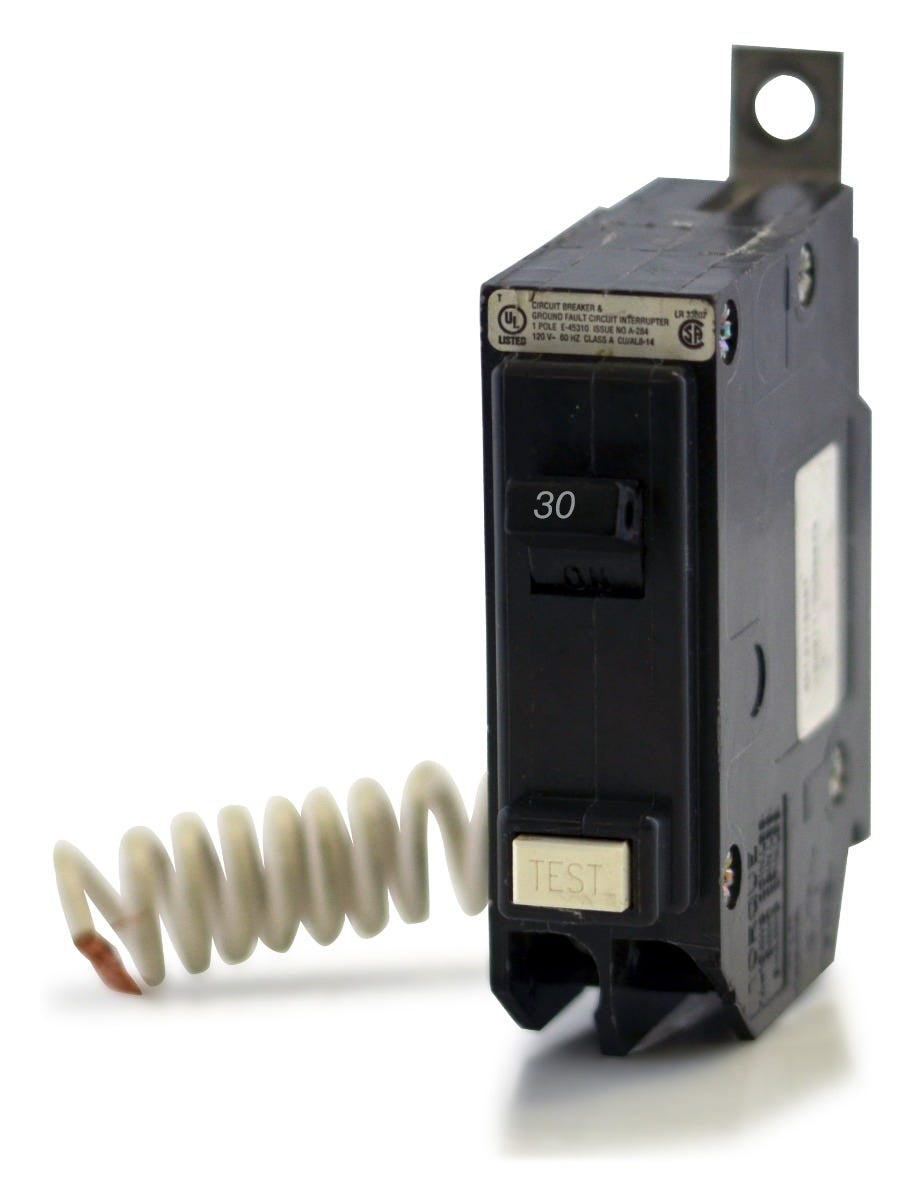

Eaton / Cutler-Hammer QBHGFT1030 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGFT1030
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGFT1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHGFT1030 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGFT1020
20A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT1015
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT2030
30A GFCI Miniature Circuit Breaker
Description
Built for commercial applications, this 30A single-pole GFCI breaker provides essential personnel protection. It is part of the Quicklag family, offering robust thermal-magnetic capabilities. Designed with a bolt-on mounting style, it fits securely into Eaton Pow-R-Line panelboards. This unit utilizes a pigtail neutral and is replaced by the QBH1030GF. Rated for 22kAIC at 120/240VAC, the breaker features a self-test function. It combines overcurrent defense with 5mA ground fault sensitivity.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGFT1030 |
| Series | QBHGFT |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QBHGFT |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Self-Test |
Product FAQs
8 answersWhat panelboards are compatible with the QBHGFT1030?
The QBHGFT1030 is a bolt-on Quicklag breaker designed specifically for use in Eaton Pow-R-Line panelboards. It is not compatible with standard plug-on residential load centers.
What is the ground fault trip sensitivity of the QBHGFT1030?
This breaker is a Class A Ground Fault Circuit Interrupter (GFCI) with a 5 mA trip sensitivity, designed to protect personnel from electrical shock.
Is the QBHGFT1030 rated for switching fluorescent lights?
Yes, Eaton Quicklag breakers are Switching Duty (SWD) rated for 120 VAC fluorescent light applications.
Is this breaker HACR rated?
Yes, the QBHGFT1030 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
How does the QBHGFT1030 connect to the panel neutral?
This breaker features a pigtail neutral wire that must be connected directly to the panelboard neutral bus bar to ensure proper ground fault detection.
What wire sizes are accepted by the load terminals on the QBHGFT1030?
The load side lugs accept wiring ranging from 14 AWG to 4 AWG.
What do the LI trip functions indicate on this breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (thermal) protection against mild overloads and Instantaneous (magnetic) protection against severe short circuits, in addition to its ground fault capabilities.
What does the H in the QBHGFT1030 catalog number signify?
The H in the QBHGFT series indicates a high interrupting rating of 22 kAIC at 240VAC, compared to standard 10 kAIC versions.
