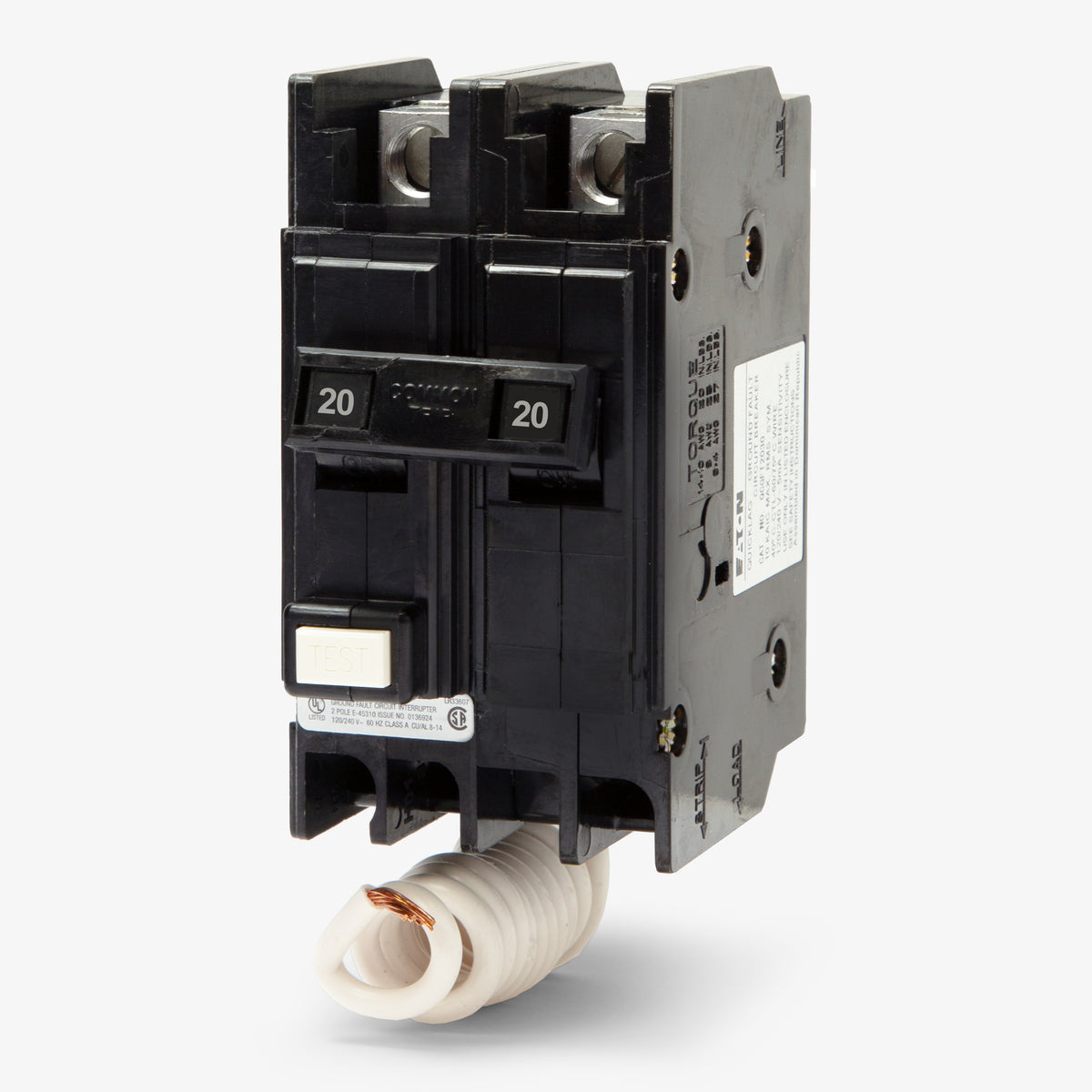

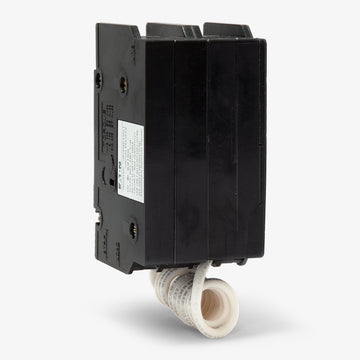

Eaton / Cutler-Hammer QCGFT2020 GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFT2020
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFT2020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFT2020 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFT2015
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT2030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT2040
40A GFCI Miniature Circuit Breaker
Description
Engineered for industrial environments, the Eaton QCGFT2020 provides 20A of thermal-magnetic and ground-fault protection. This two-pole Quicklag breaker features an integrated self-test function that routinely verifies the GFCI circuitry to meet stringent safety standards. The cable-in/cable-out panel mount design makes it ideal for custom OEM control panels and Eaton enclosures. It provides a 10 kAIC interrupting rating at 120/240VAC and accommodates 14-4 AWG wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFT2020 |
| Series | QCGFT |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QCGFT |
|---|---|

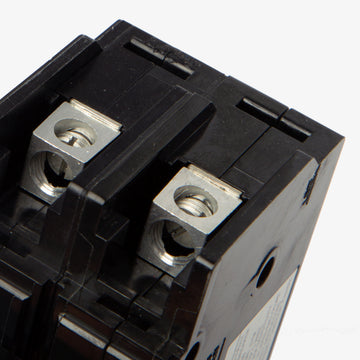

| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Enclosures, OEM Panels |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Ground Fault Self Test |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Ground Fault Self Test |
Product FAQs
7 answersWhat enclosures are compatible with the Eaton QCGFT2020?
This breaker is designed for use in Eaton Quicklag enclosures and compatible OEM panels that accept cable-in/cable-out, feed-thru mounting.
Can I use the QCGFT2020 in a load center that requires bolt-on breakers?
No. The QCGFT2020 features a feed-thru design with box lugs. If your panel requires bolt-on connections, you will need a QBGF or QBGFT series breaker instead.
What is the difference between the QCGFT2020 and the QBGFT2020?
The QCGFT2020 is a cable-in/cable-out, feed-thru breaker designed for panel mount applications. The QBGFT2020 is the bolt-on equivalent used in Eaton Pow-R-Line panelboards.
What is the ground fault trip sensitivity for the QCGFT2020?
This Class A GFCI breaker features a 5mA trip sensitivity to protect personnel from electrical shock hazards in wet or damp locations.
Does the QCGFT2020 include a self-test feature?
Yes, this breaker includes an integrated ground fault self-test function to ensure ongoing compliance with NEC safety standards.
How is the neutral connection configured on this breaker?

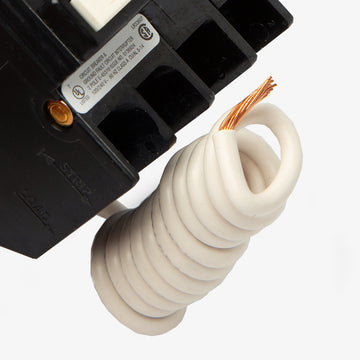

The QCGFT2020 utilizes a pigtail neutral wire that must be connected directly to the panel neutral bus bar to ensure proper ground fault detection.
Is there a higher interrupting rating available for this 20A GFCI breaker?
Yes. The QCGFT2020 is rated for 10kAIC. If your application requires a 22kAIC interrupting capacity, you can use the QCHGFT2020.
