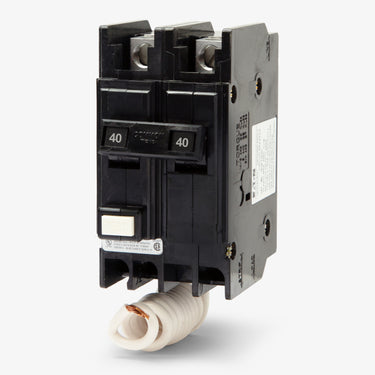

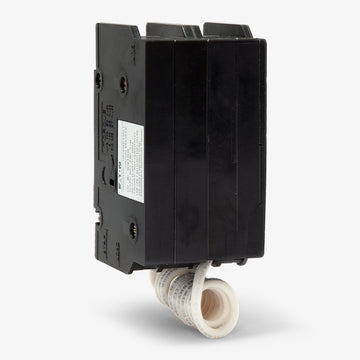

Eaton / Cutler-Hammer QCGFT2040 GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCGFT2040
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGFT2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGFT2040 - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQCGFT2030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT2025
25A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT2020
20A GFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, this 40A GFCI breaker provides essential life-safety protection for wet or damp locations. The Eaton QCGFT2040 operates at 120/240VAC with a 10kAIC interrupt capacity, utilizing fixed thermal and magnetic trip elements. It features a convenient cable-in/cable-out configuration with included line and load box lugs for straightforward wiring. Ideal for commercial and industrial environments, it installs seamlessly into compatible OEM panels and Quicklag enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGFT2040 |
| Series | QCGFT |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QCGFT |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Enclosures, OEM Panels |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Trip-Free Mechanism, Self-Test, Common Trip |
Product FAQs
5 answersWhat enclosures and mounting plates are compatible with the Eaton QCGFT2040?
This breaker is designed for Eaton Quicklag enclosures and compatible OEM panels. It utilizes a cable-in/cable-out mounting configuration and can be installed using QC series face mounting plates, such as the QC2FP for two-pole applications.
How is the QCGFT2040 wired into the electrical panel?

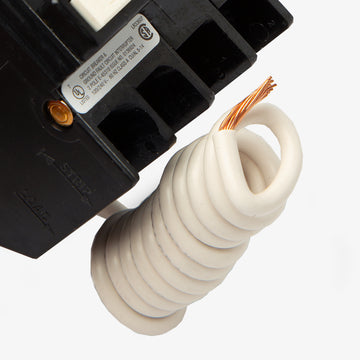

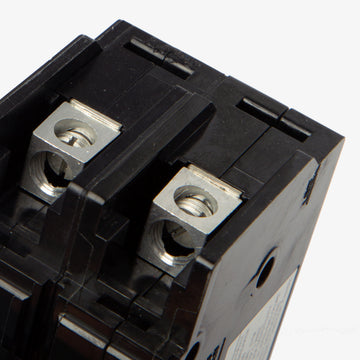

This feed-thru breaker uses box lugs for both the line and load side connections, accepting 14 to 4 AWG copper or aluminum wire. It also includes a pigtail neutral wire that must be connected directly to the panel neutral bar for the ground fault sensing to operate correctly.
What type of ground fault protection does the QCGFT2040 offer?
It provides Class A personnel protection with a 5mA trip sensitivity to prevent electrical shock in wet or damp locations. The breaker also includes an integrated self-test feature to ensure continuous compliance with NEC requirements.
What are the interrupting capacity and trip functions of this breaker?
The QCGFT2040 has a 10kAIC rating at 120/240VAC. It utilizes a thermal-magnetic trip unit with fixed long-time and instantaneous functions for overcurrent and short-circuit protection, combined with dedicated ground fault sensing.
Can this breaker replace older Cutler-Hammer QCGFT models?
Yes. Eaton acquired Cutler-Hammer, and the QCGFT2040 serves as an exact, direct replacement for older Cutler-Hammer breakers bearing the same catalog number.
