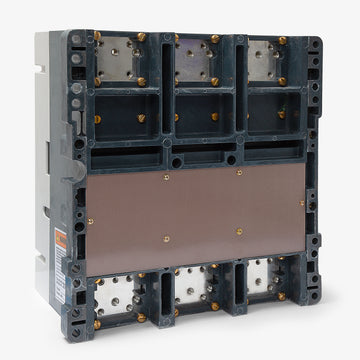

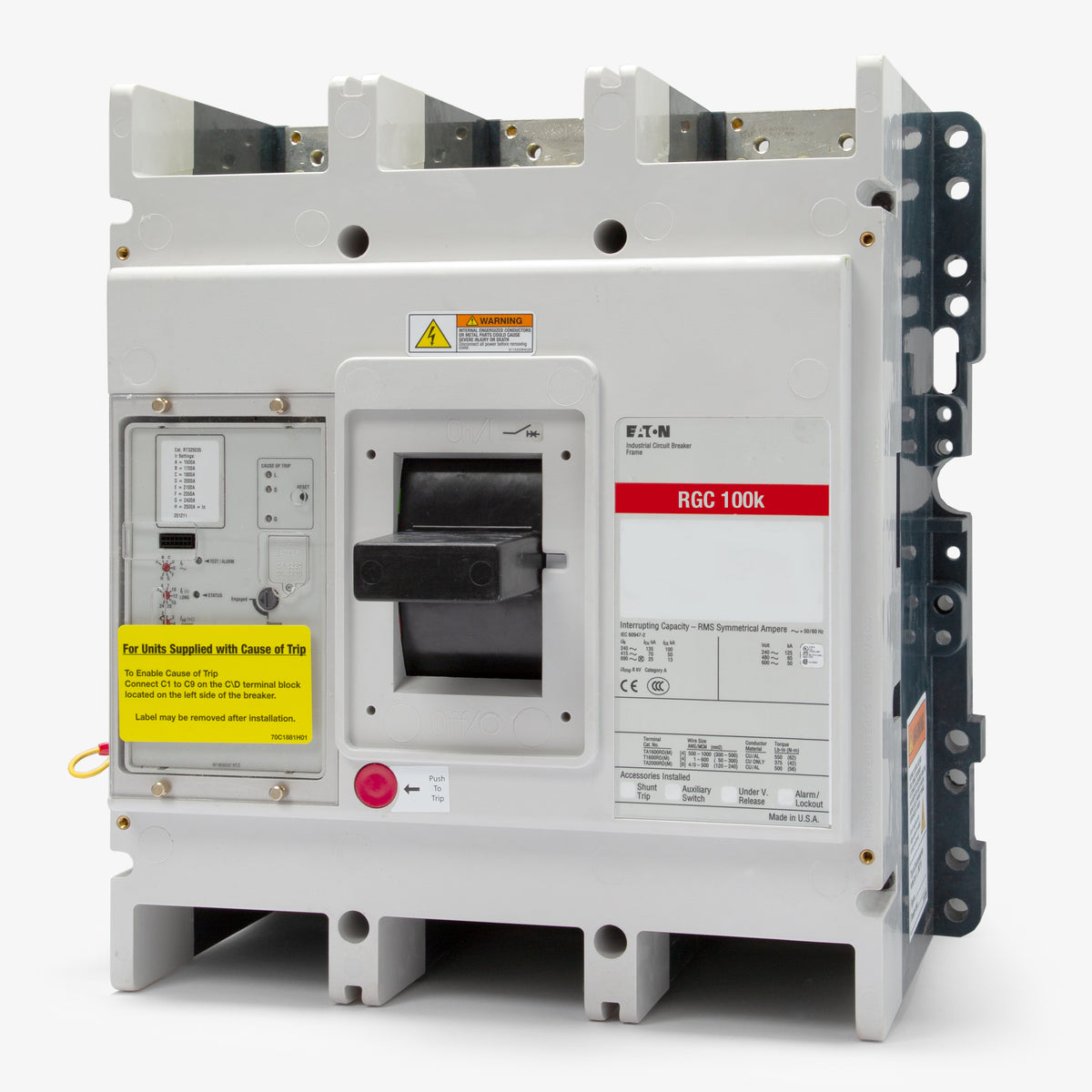

Eaton / Cutler-Hammer RGC320039E Molded Case Circuit Breaker
- 2000A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGC320039E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGC320039E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGC320039E - 2000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGC325038E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC325039E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC316038E
1600A 3 Pole Molded Case Circuit Breaker
Description
The Eaton RGC320039E is a high-performance 2000A, 3-pole molded case circuit breaker for demanding industrial environments. As part of the Series G family, it offers an 80% continuous current rating and reverse feed capability. This unit mount breaker is engineered for compatibility with Eaton Series G panelboards and switchboards. It features imperial tapped pads and a robust 100 kAIC rating at 480VAC. The electronic trip unit provides adjustable LSIG protection, ZSI, and ARMS technology.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | RGC |
| Amperage | 2000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 1000-2000A |
|---|
| Frame Type | RG |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Series G Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Imperial Tapped Pads |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, 80% Rated, Zone Selective Interlocking (ZSI), Arcflash Reduction Maintenance System (ARMS), Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
7 answersWhat does the 39 in the RGC320039E catalog number signify?
The 39 indicates the breaker is equipped with a Digitrip 310+ electronic trip unit featuring ALSIG functions (Adjustable Long-Time, Short-Time, Instantaneous, and Ground Fault protection) as well as an Arcflash Reduction Maintenance System (ARMS).
Are wire lugs included with this RG-frame circuit breaker?

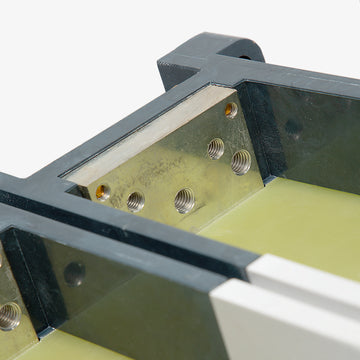

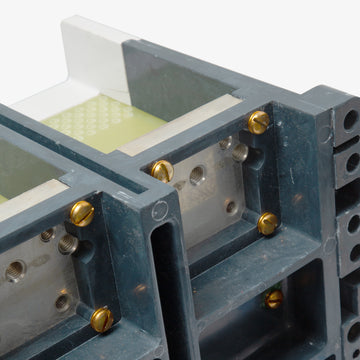

No, the RGC320039E comes standard with imperial tapped pad terminals for busbar connections. If you are connecting cable, you must order the appropriate wire lugs separately.
What equipment is the RGC320039E compatible with?
This RG-frame breaker is designed for installation in Eaton Series G panelboards, Pow-R-Line switchboards, and motor control centers.
Can the RGC320039E be reverse fed?
Yes, Eaton Series G R-frame circuit breakers are suitable for reverse feed applications.
How does the Arcflash Reduction Maintenance System (ARMS) function on this breaker?
The ARMS feature allows personnel to temporarily lower the instantaneous trip setting during maintenance. This reduces the fault clearing time, lowering the available arc flash energy and improving worker safety.
Is the RGC320039E rated for 80 percent or 100 percent continuous current?
The standard RGC320039E is rated for 80 percent continuous current. Eaton designates 100 percent rated versions with a C suffix at the end of the catalog number.
Are the trip settings adjustable on the RGC320039E?
Yes, the Digitrip 310+ electronic trip unit provides fully adjustable settings for long-time pickup and delay, short-time pickup and delay, instantaneous pickup, and ground fault pickup and delay.
