Federal Pacific NA215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Federal Pacific
NA215
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NA215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

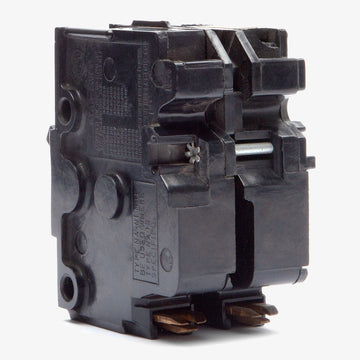

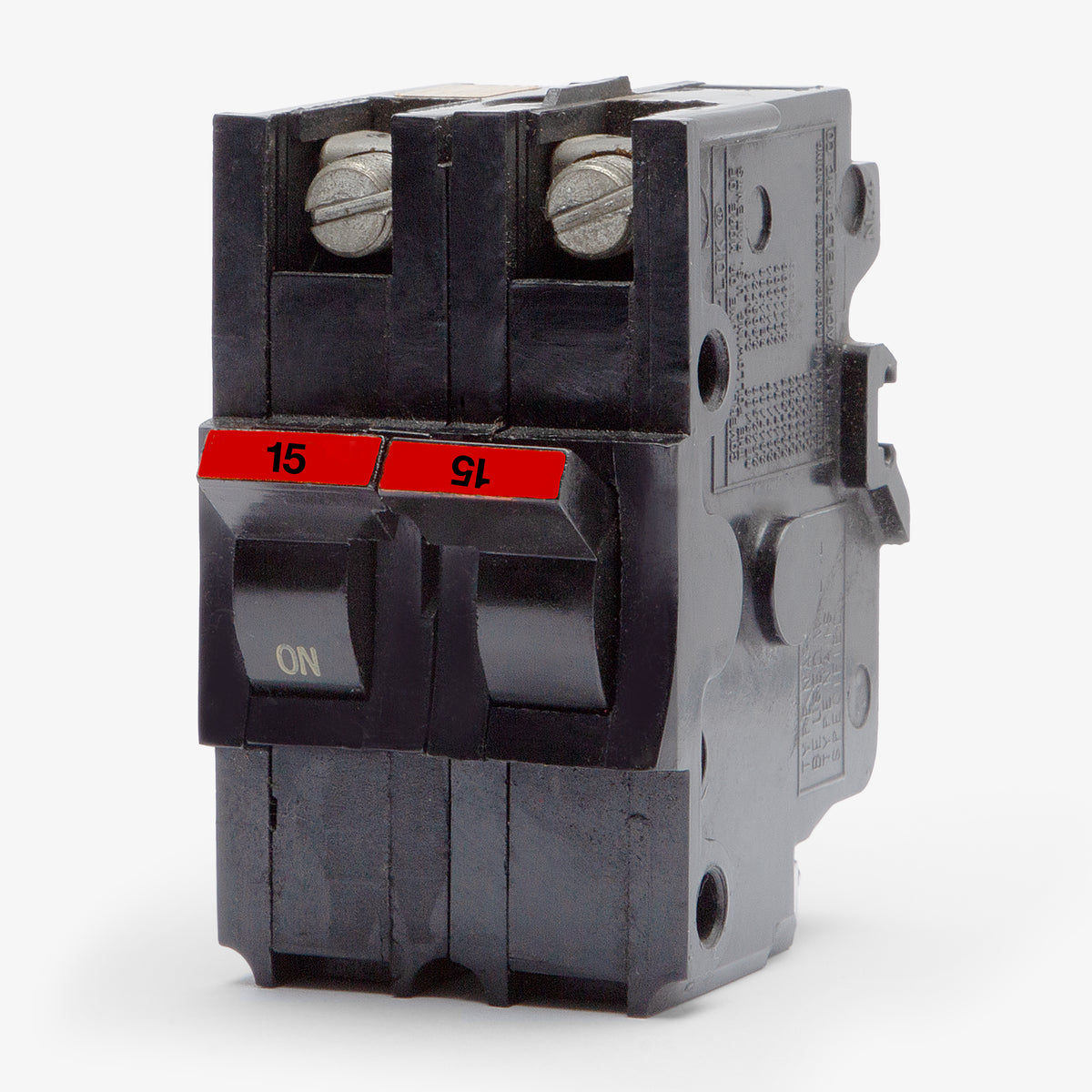

Federal Pacific NA215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NA215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA215 |
| Series | NA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

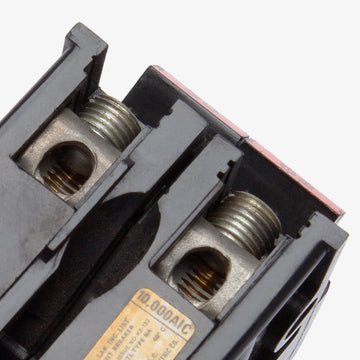

| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14 AWG - 2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NA215-R |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, Full Size (1 inch per pole), Color-Coded Handle |
Quantity
Federal Pacific NA215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA215-R |
| Series | NA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14 AWG - 2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NA215-R |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, Full Size (1 inch per pole), Color-Coded Handle |
Similar Items
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Built to support 240V residential and commercial circuits, the NA215 provides 15 amps of two-pole thermal-magnetic protection. The two-inch wide design features a color-coded handle and an internal common trip mechanism to disconnect both legs simultaneously during an overcurrent event. This legacy component mounts into original Federal Pacific Stab-Lok panelboards. It serves as an exact fit for older installations and can be replaced by the UBIF215N when upgrading.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NA215 |
| Series | NA |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14 AWG - 2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | NA215-R |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, Full Size (1 inch per pole), Color-Coded Handle |
Product FAQs
4 answersWhat is the exact panel footprint of the NA215 breaker?
The NA series designates a standard thick-style Federal Pacific circuit breaker body. Measuring 1 inch per pole, this 2-pole breaker requires exactly 2 inches of horizontal space on a Stab-Lok busbar.
What is the modern cross-reference for the NA215?
The Connecticut Electric UBIF215N is a direct, newly manufactured replacement for the legacy Federal Pacific NA215. It shares the same 2-inch thick body and Stab-Lok mounting design.
Are there specific inspection steps when installing replacement Stab-Lok breakers?
Yes. Legacy Federal Pacific Stab-Lok load centers are known for busbar connection issues. Before installing a replacement breaker, licensed electricians must carefully inspect the panel busbar prongs for pitting, arcing, or thermal damage.
How does the Stab-Lok connection differ from standard plug-on breakers?

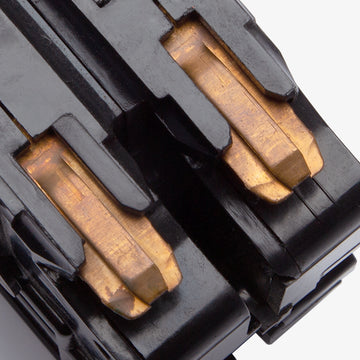

Instead of gripping a central bus rail, Stab-Lok breakers like the NA215 use slots on the back of the breaker casing to plug directly onto specialized prongs protruding from the panel busbar.
