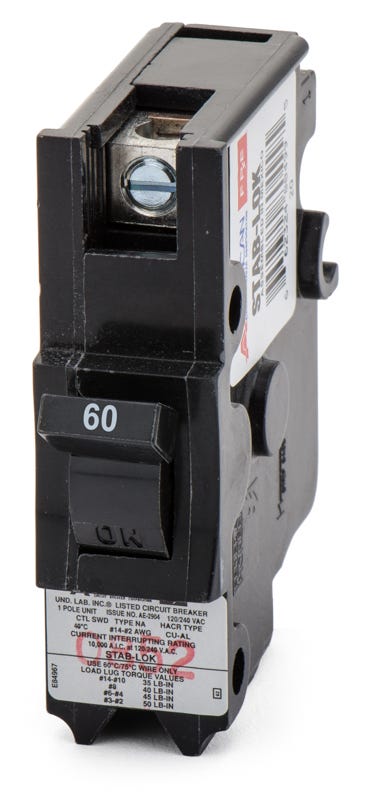

Federal Pacific NA60 Miniature Circuit Breaker
- 60A
- 1 Pole
- Plug-On
Federal Pacific
NA60
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NA60
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NA60 - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Federal Pacific NA60 - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA60 |
| Series | NA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Full Size (1 inch per pole) |
Sold out
Quantity
Federal Pacific NA60 - 60A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA60-R |
| Series | NA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Full Size (1 inch per pole) |
Similar Items
40A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Serving as a crucial component for legacy systems, this 60-amp single-pole breaker offers dependable tripping. The full-size design occupies one standard space. Compatibility is guaranteed for original Federal Pacific Stab-Lok load centers. Electricians can use this as a drop-in alternative to the UBIF0160N without adapters. With a 10kAIC rating at 120VAC, it handles standard fault currents. The robust plug-on jaw ensures a tight, reliable connection to the existing panel bus.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NA60 |
| Series | NA |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Full Size (1 inch per pole) |
Product FAQs
7 answersWhich load centers accept the NA60 circuit breaker?
This breaker is designed exclusively for legacy Federal Pacific Electric (FPE) Stab-Lok load centers. It features the proprietary Stab-Lok jaw and will not fit standard interchangeable panels.
How much panel space does the NA60 require?
As a full-size NA series breaker, it requires one standard 1-inch space on the panel bus. This distinguishes it from the half-inch NC series Stab-Lok breakers.
Is there an aftermarket alternative to the NA60?
Yes, the Connecticut Electric UBIF0160N is a direct aftermarket replacement for this original Federal Pacific Stab-Lok breaker.
What wire sizes are accepted by the NA60 terminals?
The lug terminals on this breaker accept wire gauges ranging from 14 AWG up to 2 AWG.
How does the trip mechanism function on the NA60?
It utilizes a fixed thermal-magnetic trip unit. The thermal component provides long-time overload protection, while the magnetic component handles instantaneous short-circuit protection.
How does this breaker mount into the panel?
The NA60 features a plug-on Stab-Lok connection, allowing it to snap directly onto the panel busbar without the need for additional mounting hardware.
Are original Federal Pacific Stab-Lok breakers still manufactured?
Original Federal Pacific Electric (FPE) breakers are no longer manufactured. The Stab-Lok design is now considered a legacy system, though aftermarket replacements are produced by brands like Connecticut Electric.
