Federal Pacific NAGF30 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Federal Pacific
NAGF30
GFCI Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NAGF30
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NAGF30 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description

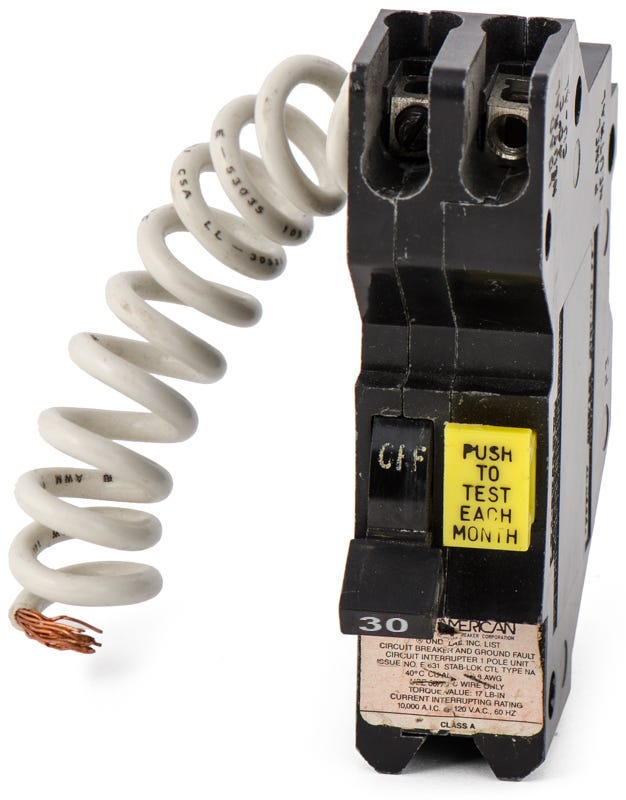

Providing 30 amps of capacity, the Federal Pacific NAGF30 combines overcurrent defense with ground-fault monitoring. This single-pole device helps bring older 120VAC circuits up to code. The unit is manufactured to plug into existing Stab-Lok load centers. It eliminates the need for panel upgrades by offering an exact physical match, replacing the UBIF030N configuration. Featuring a 10 kAIC rating, the breaker incorporates a 5mA Class A trip threshold and a pigtail neutral connection.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NAGF30 |
| Series | NAGF |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat type of electrical panel accepts the NAGF30 breaker?
This breaker is designed exclusively for use in legacy Federal Pacific Electric (FPE) Stab-Lok load centers. It features the specific plug-on connection required to fit the bus bars in these older panels.
How is the pigtail wire on this GFCI breaker installed?
The coiled white pigtail wire must be connected directly to the neutral bus bar in your electrical panel. This connection powers the internal circuitry required to monitor the circuit for ground faults.
Where does the load neutral wire connect when installing this breaker?
Unlike standard breakers, the load neutral wire from your branch circuit must connect directly to the designated neutral terminal on the GFCI breaker itself, not to the panel neutral bus bar.
Does this breaker provide both overload and ground-fault protection?
Yes. It utilizes thermal-magnetic trip technology for standard overload (long-time) and short-circuit (instantaneous) protection, combined with integrated ground-fault circuitry to detect leakage currents and help prevent electrical shock.
How often should the ground-fault protection be tested?
It is recommended to test the GFCI function monthly using the integrated test button on the breaker. This ensures the internal circuitry is actively monitoring for leakage currents.
Is it safe to install new breakers in an existing FPE Stab-Lok panel?
While installing a replacement breaker can restore functionality to a specific circuit, legacy FPE Stab-Lok panels have a documented history of failing to trip during overcurrent events. Many licensed electricians recommend a complete panel upgrade for long-term safety.
