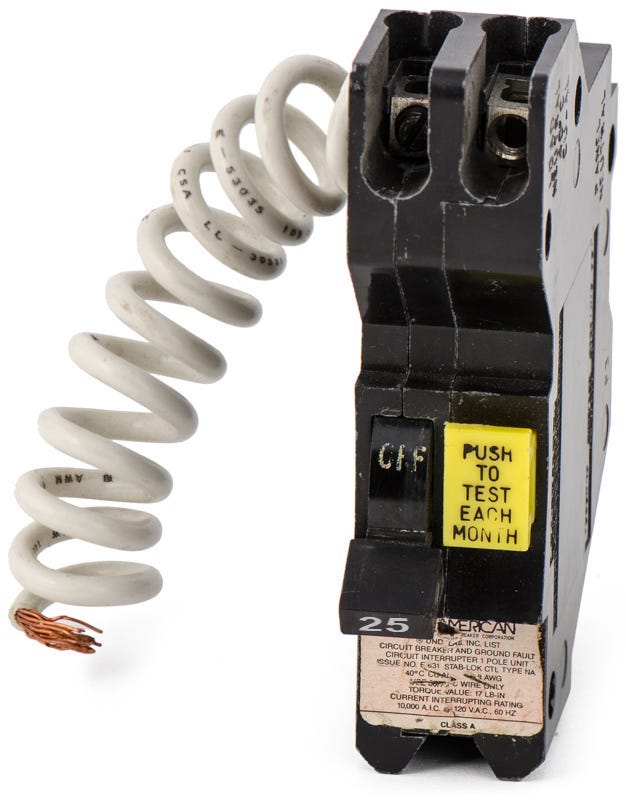

Federal Pacific NAGF25 GFCI Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Federal Pacific
NAGF25
GFCI Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NAGF25
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NAGF25 - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
A seamless replacement for aging infrastructure, the Federal Pacific NAGF25 delivers 25 amps of ground-fault protection. It secures 120VAC branch circuits against leakage currents. This plug-on breaker installs into classic Federal Pacific Stab-Lok enclosures. It provides a perfect fit for older panels and acts as a verified cross-reference for the UBIF225N. The device utilizes thermal-magnetic trip mechanisms alongside a 5mA Class A GFCI threshold and includes a pigtail neutral wire.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NAGF25 |
| Series | NAGF |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWill the NAGF25 fit standard modern load centers?
No. This breaker features a specific plug-on configuration designed exclusively for legacy Federal Pacific (FPE) Stab-Lok load centers and will not fit modern panels from other manufacturers.
How is the neutral connection handled during installation?
The breaker includes a factory-installed pigtail neutral wire. This wire must be routed and secured to the neutral bus bar in the Stab-Lok panel to enable the ground fault detection circuitry.
What level of ground fault protection does this breaker offer?
It provides Class A ground fault protection, meaning the internal circuitry is calibrated to trip and interrupt power when a leakage current of 5mA or greater is detected.
Does this breaker provide standard overcurrent protection in addition to GFCI?
Yes. It utilizes a thermal-magnetic trip mechanism to protect against standard overloads and short circuits, alongside the dedicated ground fault protection.
Can I use a Connecticut Electric breaker in place of the NAGF25?
Yes. Connecticut Electric manufactures new, safety-agency-listed UBI series replacement breakers specifically designed to fit FPE Stab-Lok panels, serving as a direct cross-reference for original NAGF models.
