Federal Pacific NE234090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Federal Pacific
NE234090
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

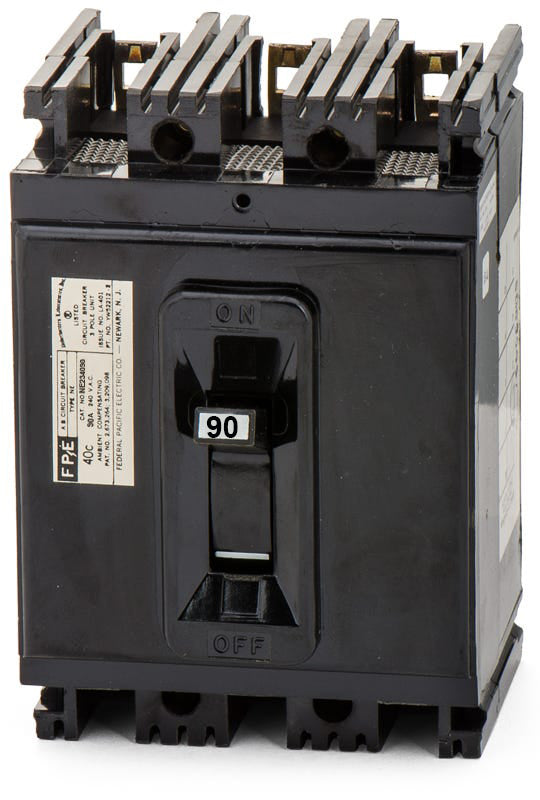

Federal Pacific NE234090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial facilities, the Federal Pacific NE234090 delivers 90 amps of overcurrent protection. This three-pole molded case circuit breaker utilizes a fixed thermal-magnetic trip mechanism for long-time and instantaneous response. Designed to mount into classic Federal Pacific NE panelboards, it ensures a seamless bolt-on installation. It effectively replaces older or failing units and crosses to substitute part UBINE234090. This N-frame breaker is reverse-feed suitable.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat panelboards accept the NE234090 circuit breaker?
This breaker is specifically designed to mount into classic Federal Pacific NE panelboards.
Is there an aftermarket substitute for the Federal Pacific NE234090?
Yes, this breaker crosses to the substitute part UBINE234090, which serves as a direct replacement for older or failing units.
Can the NE234090 circuit breaker be reverse fed?
Yes, this N frame molded case circuit breaker is reverse-feed suitable, allowing flexibility during installation.
Is the NE234090 part of the Federal Pacific Stab-Lok series?
No, the NE234090 is a commercial and industrial N frame molded case circuit breaker. It is completely different from the residential Stab-Lok breakers that are often flagged during home inspections.
Are the trip settings adjustable on this breaker?
No, the NE234090 features a fixed thermal magnetic trip mechanism for long-time and instantaneous response. It does not have adjustable dials for customizing the trip curve.
Is the NE234090 suitable for heating and cooling equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Can the trip unit be swapped out on the NE234090?
No, this breaker features a non-interchangeable trip unit. The thermal magnetic trip mechanism is fixed and cannot be replaced independently of the breaker frame.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 5.0 out of 5 based on 2 reviews.
Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Search
Rating
2 reviews

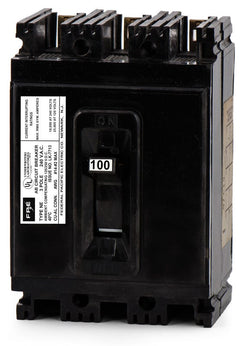

- KCKenny C.Verified BuyerReviewingFederal Pacific NE233100 - 100A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars10/6/25Had what we needed
