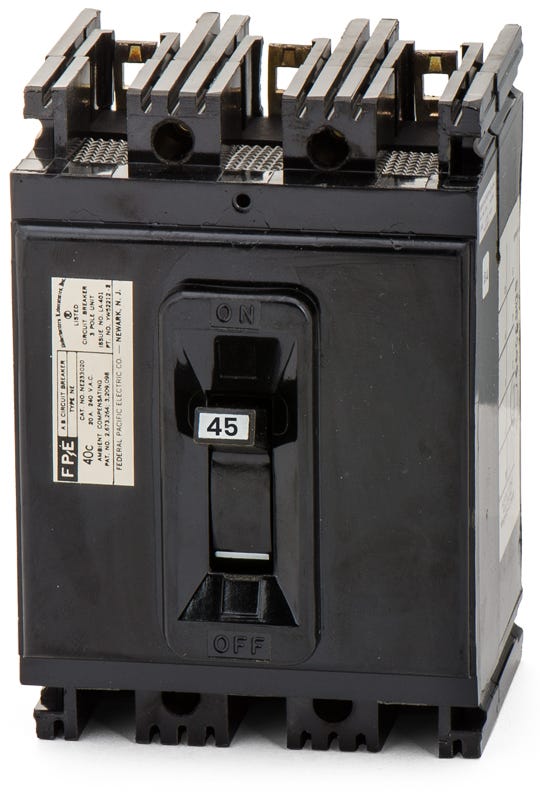

Federal Pacific NE234045 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Federal Pacific
NE234045
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE234045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE234045 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial facilities, the Federal Pacific NE234045 is a 3-pole, 45A molded case circuit breaker utilizing fixed thermal-magnetic trip technology for LI protection. Designed as a direct replacement, it bolts into legacy FPE NE panelboards. This eliminates the need for complex retrofits, allowing facility managers to easily maintain older systems. It cross-references with UBINE234045 substitutes. Delivering an 18 kAIC rating at 240VAC, this breaker is suitable for reverse feed.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE234045 |
| Series | NE |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the NE234045 circuit breaker?
This breaker is designed as a direct, bolt-on replacement specifically for legacy Federal Pacific NE panelboards.
Are there direct cross-reference replacements for the Federal Pacific NE234045?
Yes, the NE234045 cross-references with the UBINE234045, which serves as a direct aftermarket substitute for this legacy FPE breaker.
Can the NE234045 be used in reverse-feed applications?
Yes, this molded case circuit breaker is suitable for reverse-feed installations in commercial electrical systems.
Is the NE234045 rated for use in DC electrical systems?
Yes, in addition to its standard 240VAC rating, this breaker is rated for 250VDC applications with an interrupting capacity of 5kAIC.
What type of trip unit does the NE234045 utilize?
It features a fixed thermal-magnetic trip unit providing long-time and instantaneous (LI) protection against overloads and short circuits. The thermal and magnetic trip settings are non-adjustable.
How does the NE234045 mount into the panelboard?
This N-frame breaker utilizes a bolt-on connection, securely fastening directly to the busbar of compatible Federal Pacific NE panelboards to ensure a reliable connection in commercial applications.
Are Federal Pacific NE frame breakers affected by the Stab-Lok safety concerns?
The well-documented safety concerns and high failure rates associated with Federal Pacific Electric primarily involve their residential Stab-Lok load centers and breakers. The NE234045 is a commercial molded case circuit breaker and is not part of the Stab-Lok family, though many facilities still choose to upgrade aging FPE equipment to meet modern electrical codes.
